Instruction Handbook KL
Chapter 9
BA KL V11 en 10/2014 page 9-3
9.2 Stator

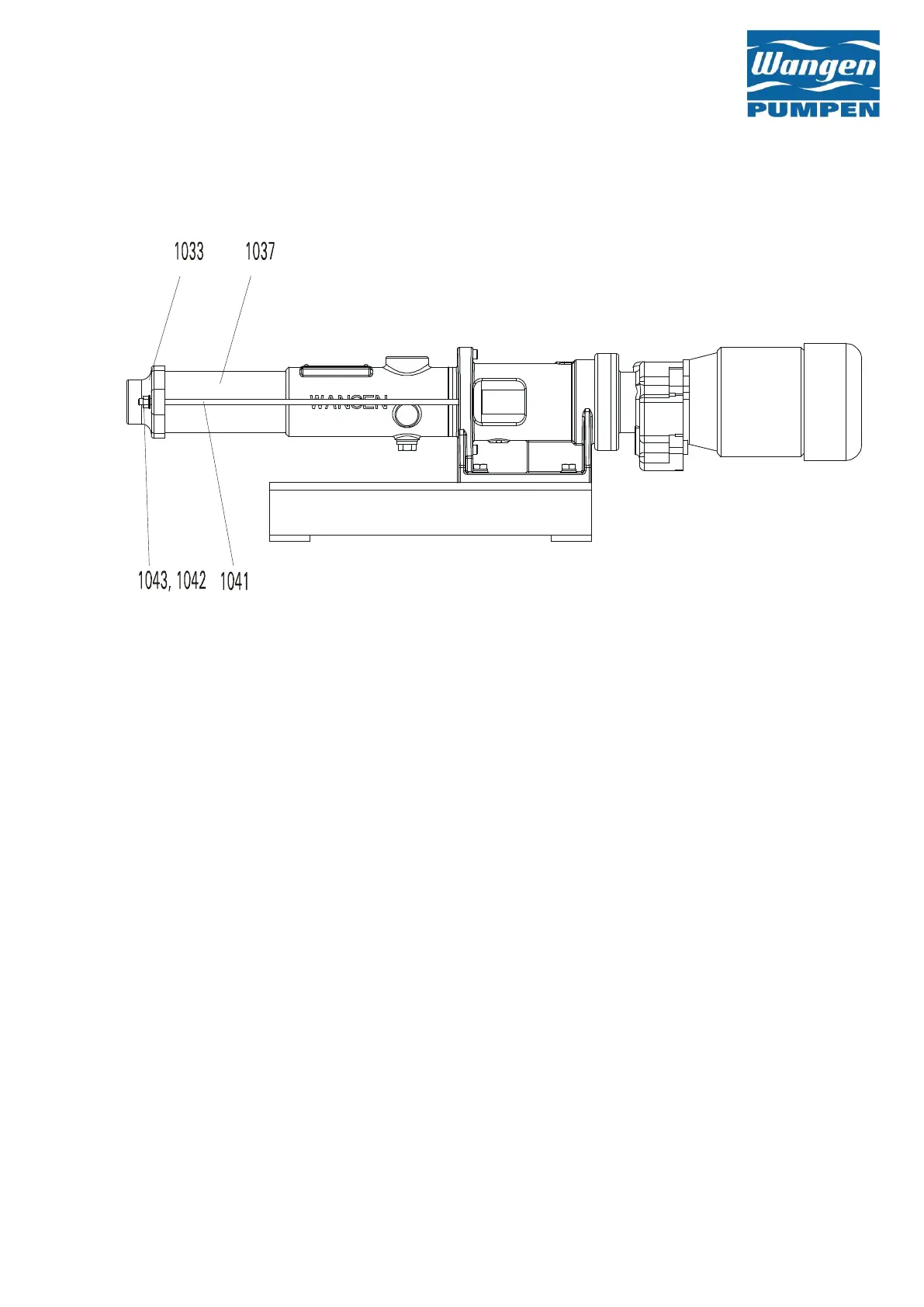

9.2.1 Suction pumps KL 20
Dismounting:
1. Lock drive shaft ( 9.1)
2. Unscrew tie rod nuts 1043, take off washer 1042.
3. Remove discharge nozzle 1033.
4. Unscrew tie rods 1041.
5. Withdraw stator 1037 by turning it right-handed. (by looking from the direction of the drive)
Mounting:
1. Fit stator by turning it left-handed. (by looking from the direction of the drive) grease it with
proper lubricant (e.g. silicon oil, soft soap, if it is compatible with the medium)
2. Screw tie rods 1041 into drive flange.
3. Insert discharge nozzle 1033 and washer 1042.
4. Refit tie rod nuts 1043 and tighten evenly.
