WANSA WP50K1 - Buttons and Interface Location; Rear Panel Connections

Buttons and interface location
5

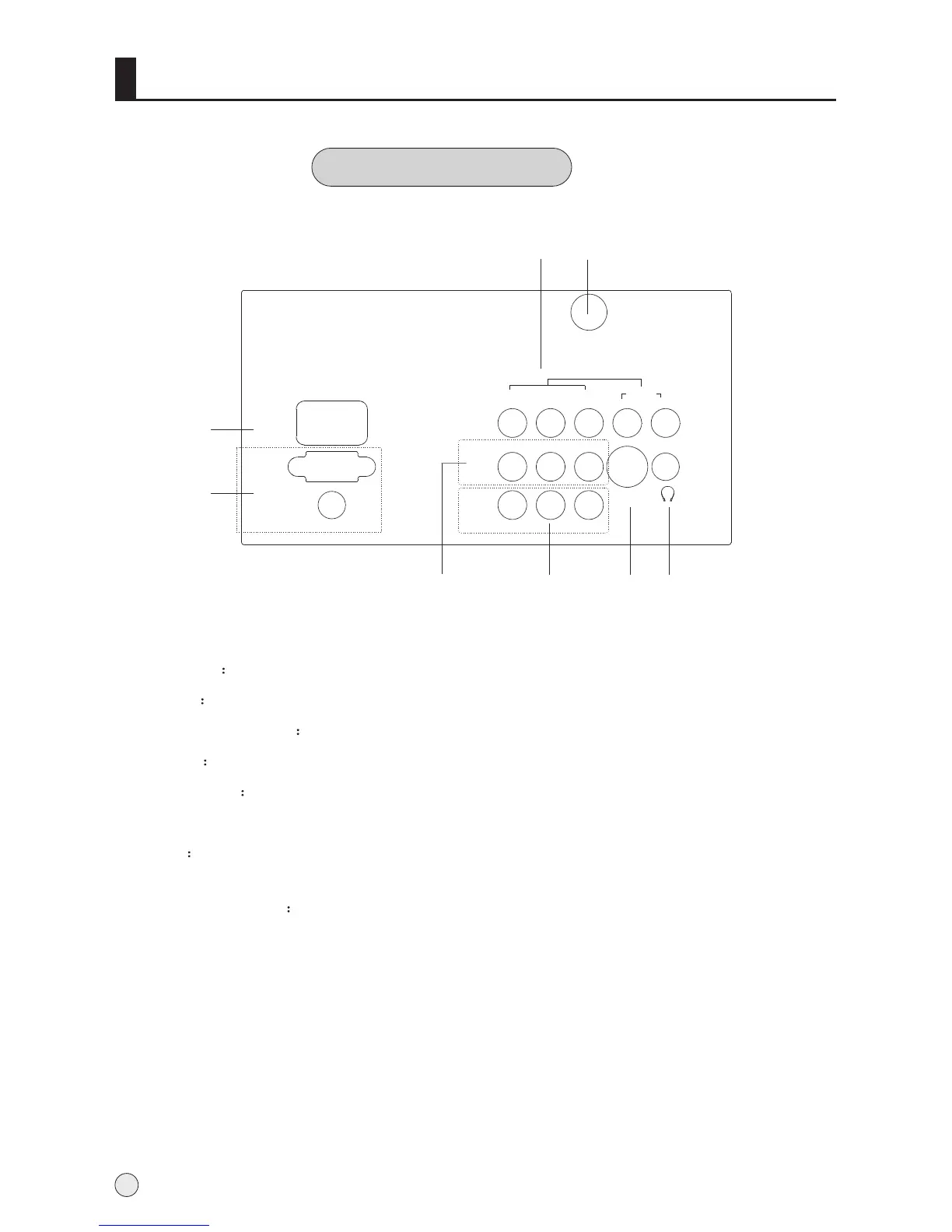

Rear panel Control
1 HDMI Input Connnect a signal to HDMI/DVI
2 PC Input Connect the monitor output connector from a PC to the jack
3 COMPONENT Input Connect a component video/audiodevice to these jacks.
4 AV Input Connect audio/video out from an audio/video device to these jacks.
5 S-Video Input Connect S-Video out from a S-Video device to these jacks.
6 Earphone jack Earphone Audio output terminal
7 ANT IN Antenna Input Connect cable or antenna signals to the TV, either directly or
through your cable box.
8 AV output terminal Connect ordinary video/audio or other appliance audio input
terminals.
S-VEDIO
VEDIO
L R
AV IN
AV OUT
ANT.
Y
Pb/Cb Pr/Cr
AUDIO
L
R
COMPONENT IN
PC
AUDIO
IN
PC IN
HDMI
1
2
3
4 58 6
7
