120V GROUNDING INSTRUCTIONS
For your protection, this appliance is equipped with a
3-conductor cord set.

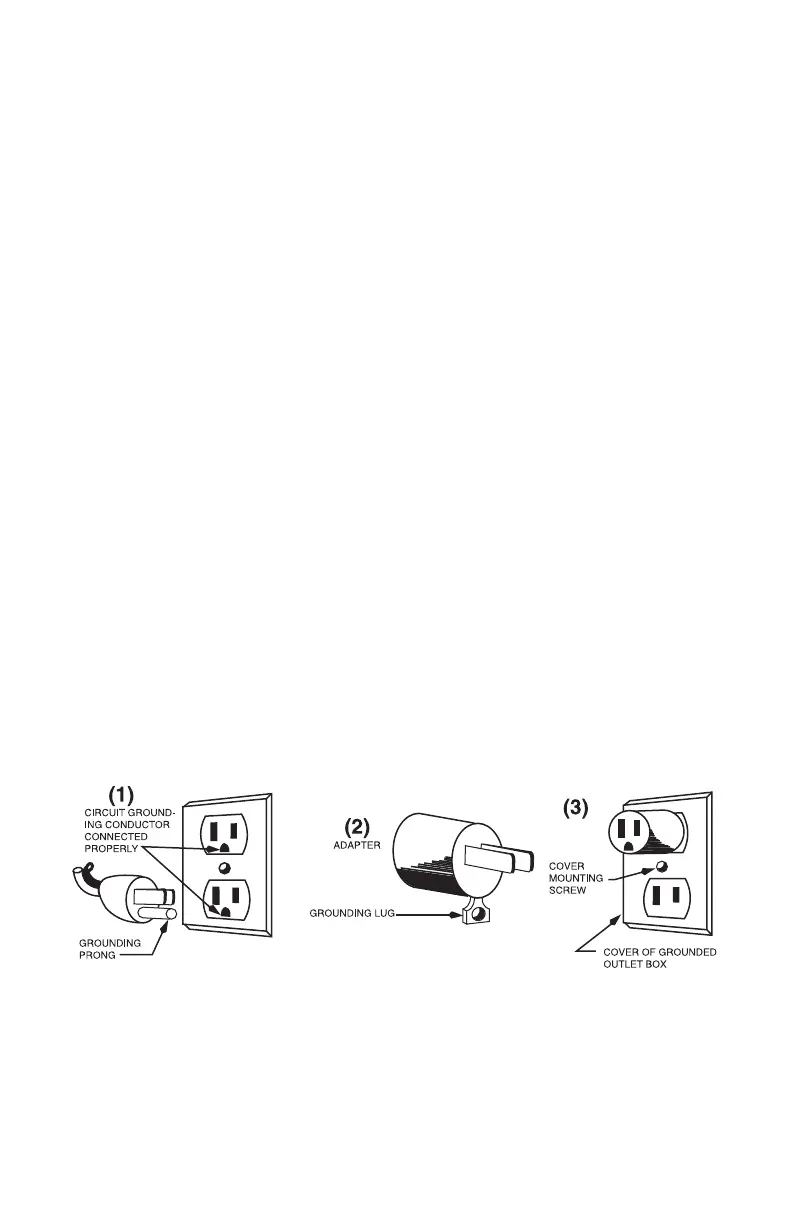

120-volt units are supplied with a molded 3-prong
grounding-type plug (NEMA 5-15P) and should be used
in combination with a properly connected grounding type
outlet, as shown in Figure 1.
If a grounding type outlet is not available, an adapter, shown
in Figure 2, may be utilized to enable a 2-slot wall outlet to
be used with a 3-prong plug. (NOTE: Use of an adapter is
not permitted in Canada and Europe.)
The adapter must be grounded by attaching its grounding
lug under the screw of the outlet cover plate. See gure 3.
Caution: Before using an adapter, it must be determined
that the outlet cover-plate screw is properly grounded. If in
doubt, consult a licensed electrician. Never use an adapter
unless you are sure it is properly grounded.
Wiring Color Codes
Green/Yellow: Earth Ground • Blue: Neutral • Brown: Live
NOTE: User-installed cord set plugs are not permitted
in Europe.
