SECURING TO THE WALL
To secure the suite to the wall, follow the
instructions below:

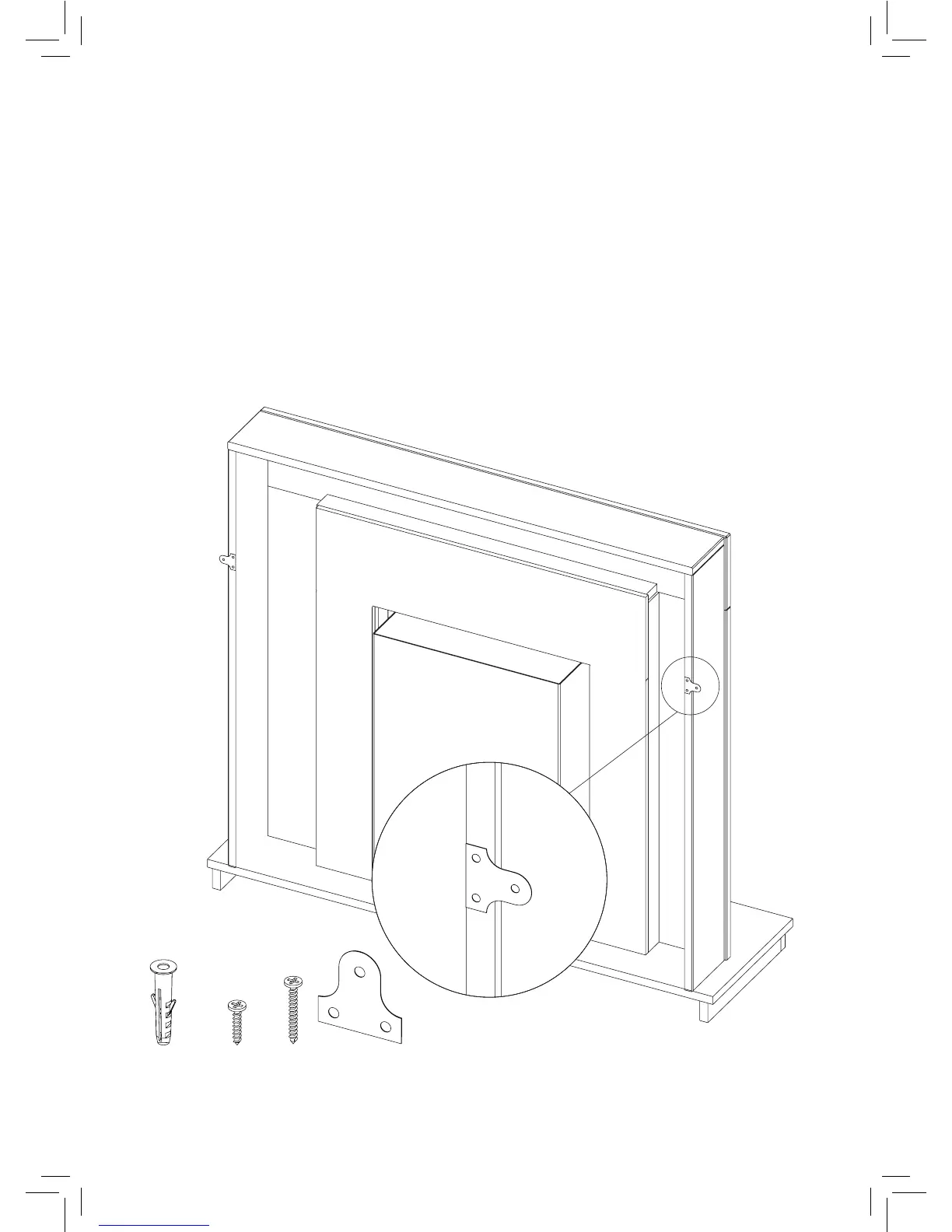

Attach a mirror clip to the back of each edge
as shown using the 4 x short screws. Pre-drill
the holes to stop the MDF from splitting, (using
a 2mm diameter drill bit).
• Place the suite onto the wall, and mark
the positions of the remaining holes on
both mirror clips.
• For solid walls, drill the 2 holes
approximately 35mm deep using a 6mm
diameter drill bit.
Note: If tting the re to plaster board with a
cavity behind then propriety wall xings (not
supplied) will be required.
• Insert the wall plugs, then secure the suite
with 2 x long screws (supplied)
x 2 x 2x 4 x 2
