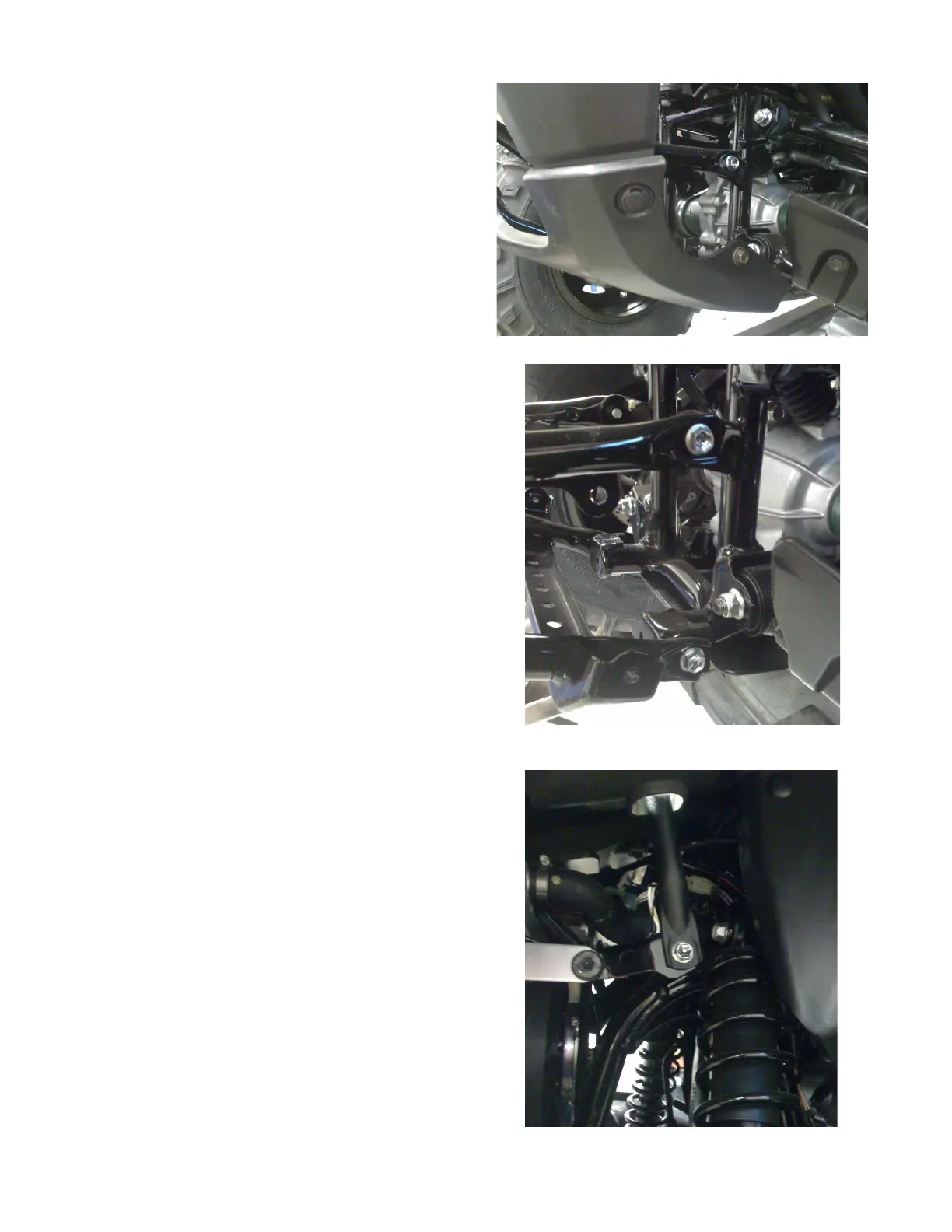

Figure2
Figure3
Figure4
III. INSTALLATION
1. Remove the front skid plate. Use a at blade
screw driver to remove the plastic rivets and a
10mm socket to remove the small shoulder bolts
securing plate to front bumper.
2. Use 12mm socket and ratchet to remove the
lower bumper bolts (Figure 3). Remove both
bolts shown on both sides of bumper. The bot-
tom two bolts will be replaced with fasteners pro-
vided in this kit.
3. Use a 12mm socket and ratchet to loosen the
top bumper bolts (Figure 4). These bolts secure
the rear part of the front bumper and rack as-
sembly. Once loosened the lower section of
front bumper will rotate away from the frame.
