Winch Installation to fixed location
Caution
Winch Failure Hazard
Failure to observe these instructions could lead to minor or moderate injury.
Always choose a mounting location that is sufficiently strong to withstand the loads you
intend to winch
The 4700 can be mounted to a fixed location by untilizing the mounting hole pattern for the winch
unit. First, choose a mounting location that is sufficiently strong enough to withstand the loads you
intend to winch.
Next, drill four holes to the dimesions specified in the drawing below.

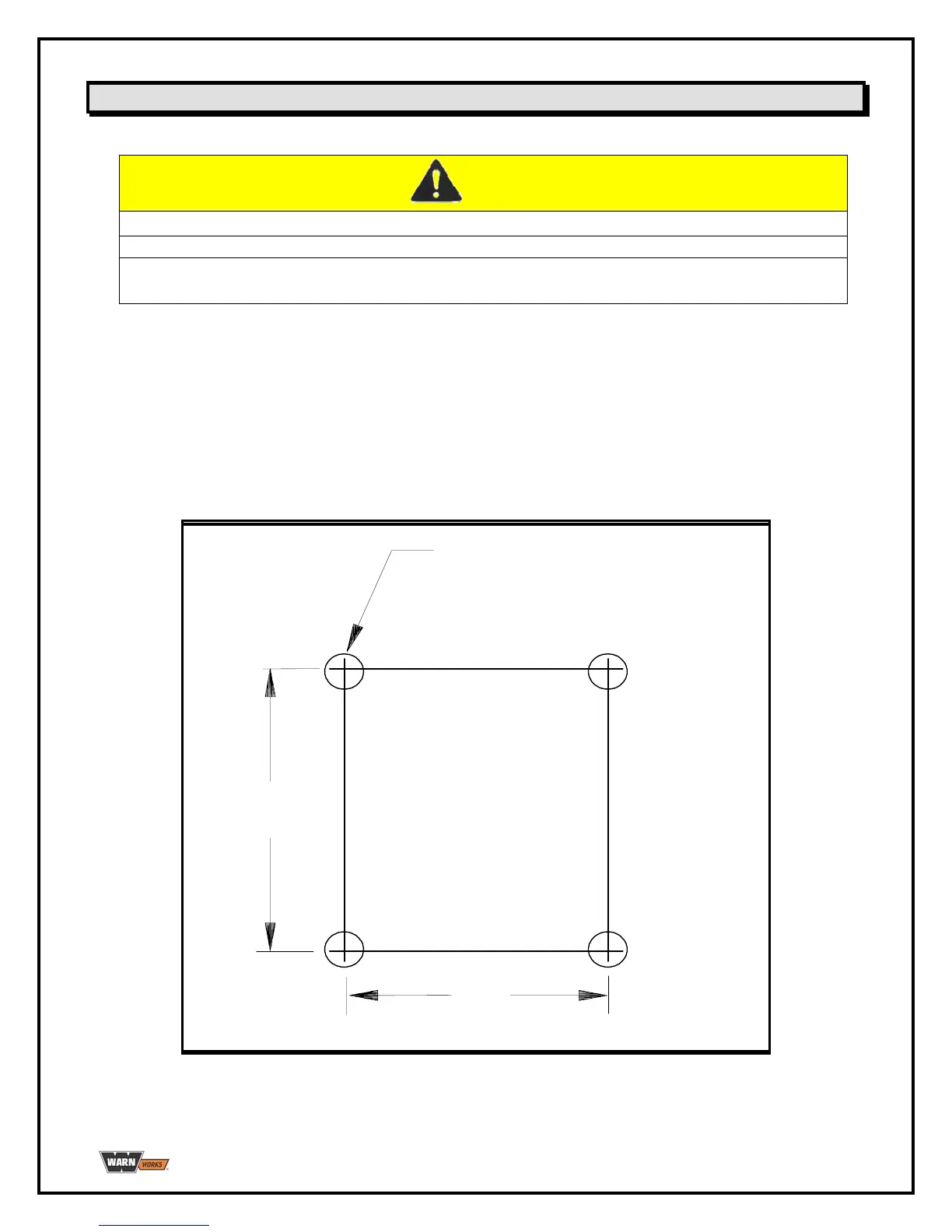

Mounting Plate Hole Pattern
3/8" [9.52 mm] DIA (4 plcs)
4.5"
[114mm]
4.12"
[105mm]
PAGE 8 63998 Rev. C1
