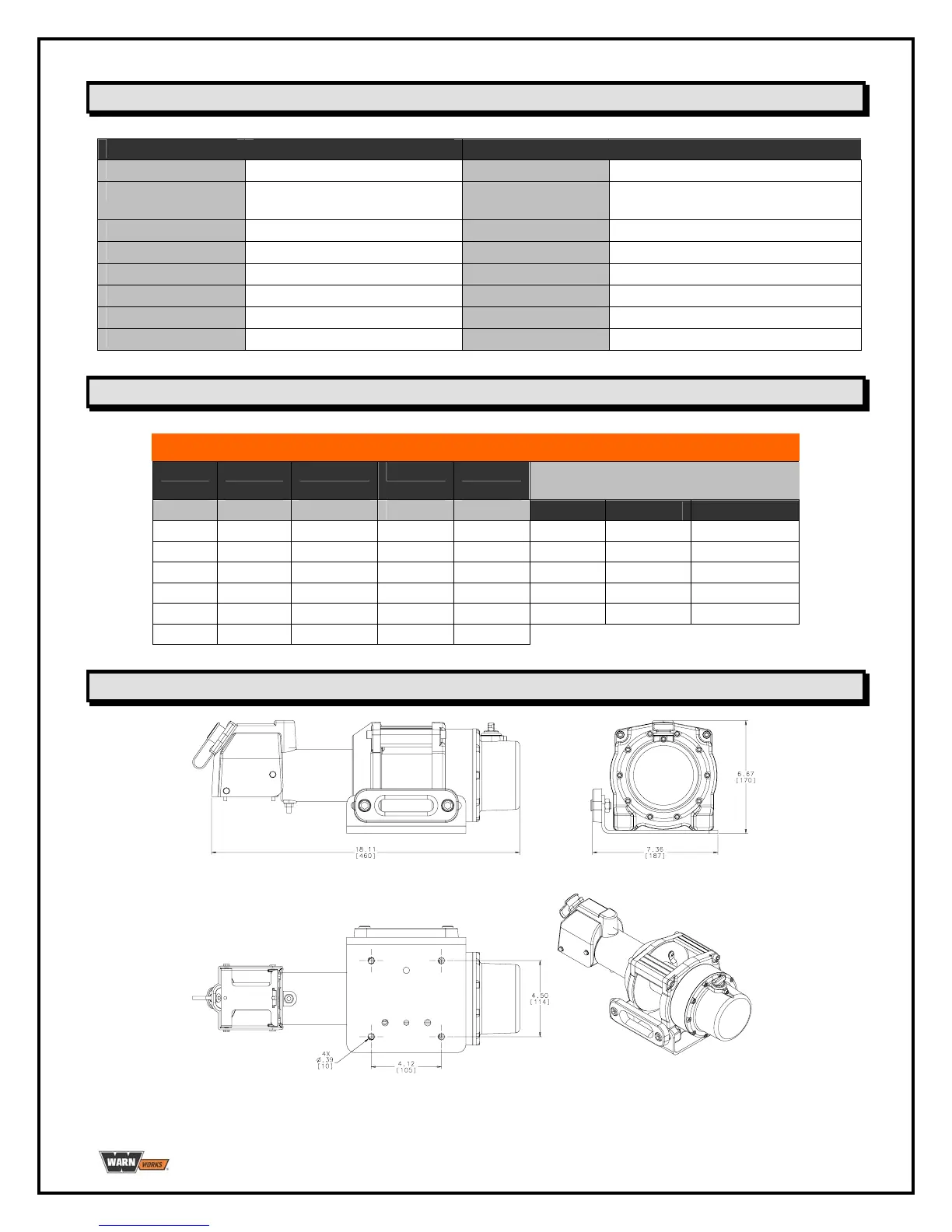

WARN Works 4700 - Specification Data for the Works 4700; Performance Data for the Works 4700; Dimensional Data for the Works 4700

Specification Data for the Works 4700
FEATURES
Pulling Capacity 4700lbs. (2130 kg) Brake Dynamic and mechanical braking
Switch Type Remote with 12’(3.7 m)
Lead
Warranty 1 year limited
Motor Permanent Magnet Wire Rope ¼”" X 60' (18.3 m)
HP 1.9 HP 3.0" Diameter Drum Diameter 2.5" (6.35 cm)
Power 12 volt DC Fairlead Roller
Gear Train 3-Stage planetary Hole Pattern 4 holes
Gear Ratio 216:1 Electrical Leads 2 – 6’ (1.8 m) x 6 gauge cable
Clutch Lever- Multi-directional Weight 42 lbs. (19.1 kg.)
Performance Data for the Works 4700
PERFORMANCE DATA: 4700
Load Current Speed Pulling Power by Wire Rope
Layer
Lbs. Kg Amps Ft/min M/min
Layer lbs. kg
0 0 47 17.9 5.5
1 4700 2130
1000 453.6 82 12.8 3.9
2 3980 1800
2000 907.2 150 10.8 3.3
3 3450 1560
3000 1360.8 212 8.1 2.5
4 3041 1380
4000 1814.4 277 5.8 1.8
5 2720 1230
4700 2132 322 4.3 1.3
Dimensional Data for the Works 4700
PAGE 7 63998 Rev. C1
