Warner Electric • 800-825-9050 P-0257-WE • 819-9027 11
❑ 6. Double check all wiring connections per
Figures 9, 10, 11, or 12 for accuracy and
tightness.
❑ 7. Reconnect the front housings if either
wall or shelf mounting is used. Secure the
latches. If shelf mounting is used, secure
the housings with the four (4) bolts for each
section.
❑ 8. Do not insert the control modules at this
time. Proceed to the MCS-166/MCS-204
start-up section of this manual.

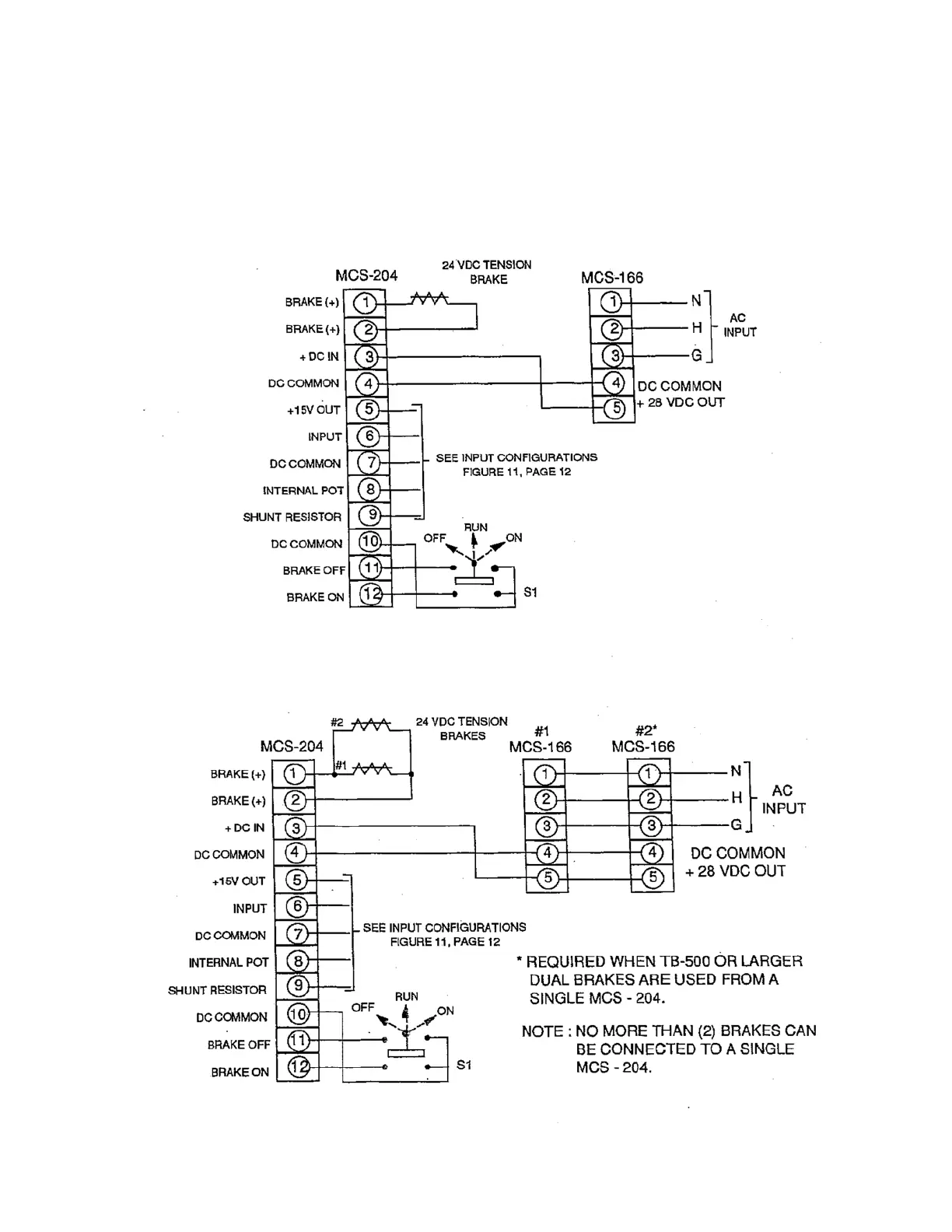

Figure 9. MCS-166/MCS-204 Wiring - Single Brake
Figure 10. MCS-166/MCS-204 Wiring - Dual Brakes
