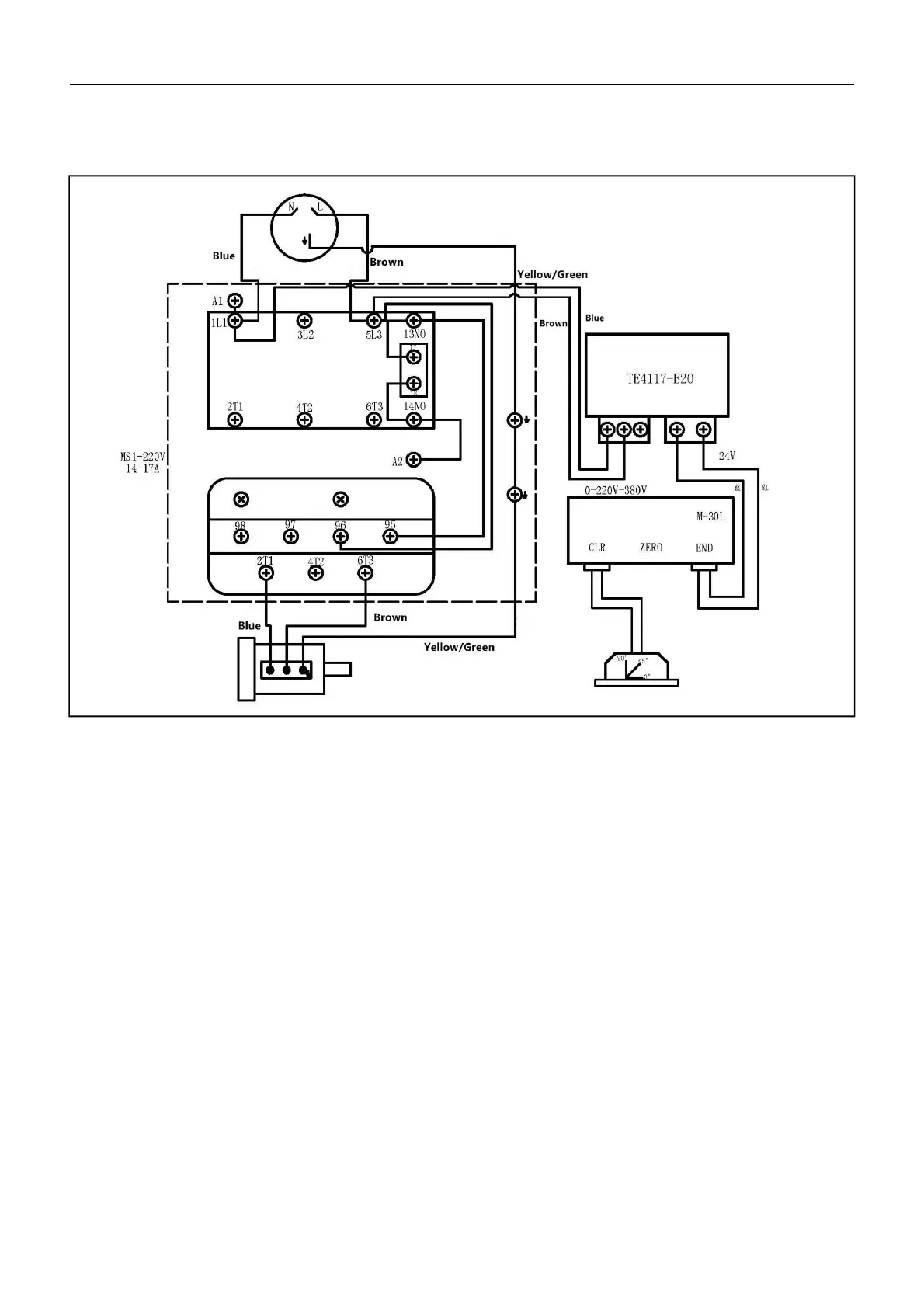

ELECTRICAL DIAGRAM
3HP/230V/50Hz/1PH
Remark:
1. The colour of single core may differ with the illustration above in different areas.
2. Single-phase power supply range: 200-240 V.
