3.3 Contents
Main machine box contents:

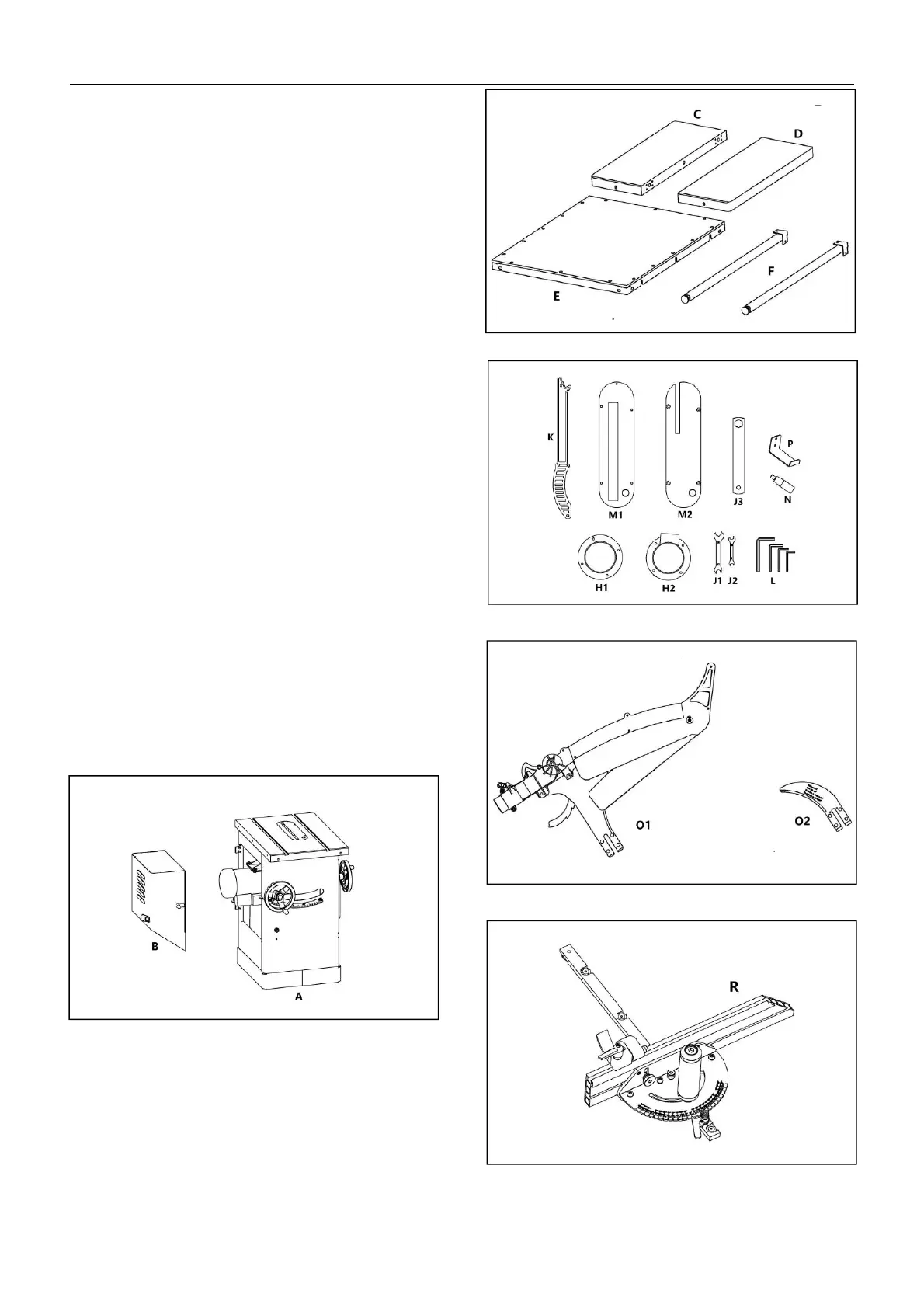

(Fig. 5-1 ---- Fig. 5-5)
A. Main table saw unit ................................ 1
B. Motor cover ............................................. 1
C. Left extension wing ................................ 1
D. Right extension wing ............................. 1
E. Extension table. ...................................... 1
(for 50" Rip Capacity model only)
F. Support legs… ........................................ 2
H1. Inner dust port ..................................... 1
H2. Outer dust port .................................... 1
J1. Wrench open-ends 8-10 mm ................ 1
J2. Wrench open-end 13-16 mm............... 1
J3. Arbor wrench. ......................................... 1
K. Push stick ................................................ 1
L. Hex wrench set (four pieces) ............. 1
M1. Dado table insert .................................... 1
M2. Zero Clearance insert ............................ 1
N. Handwheel handle ................................. 2
O1. Blade guard assembly ........................... 1
O2. Riving knife ..........................................
1
P. Fence
holder........................................ 1
R. Miter gauge ............................................ 1
Fig. 5-2
Fig. 5-3
Fig. 5-4
Fig. 5-1
Fig. 5-5
