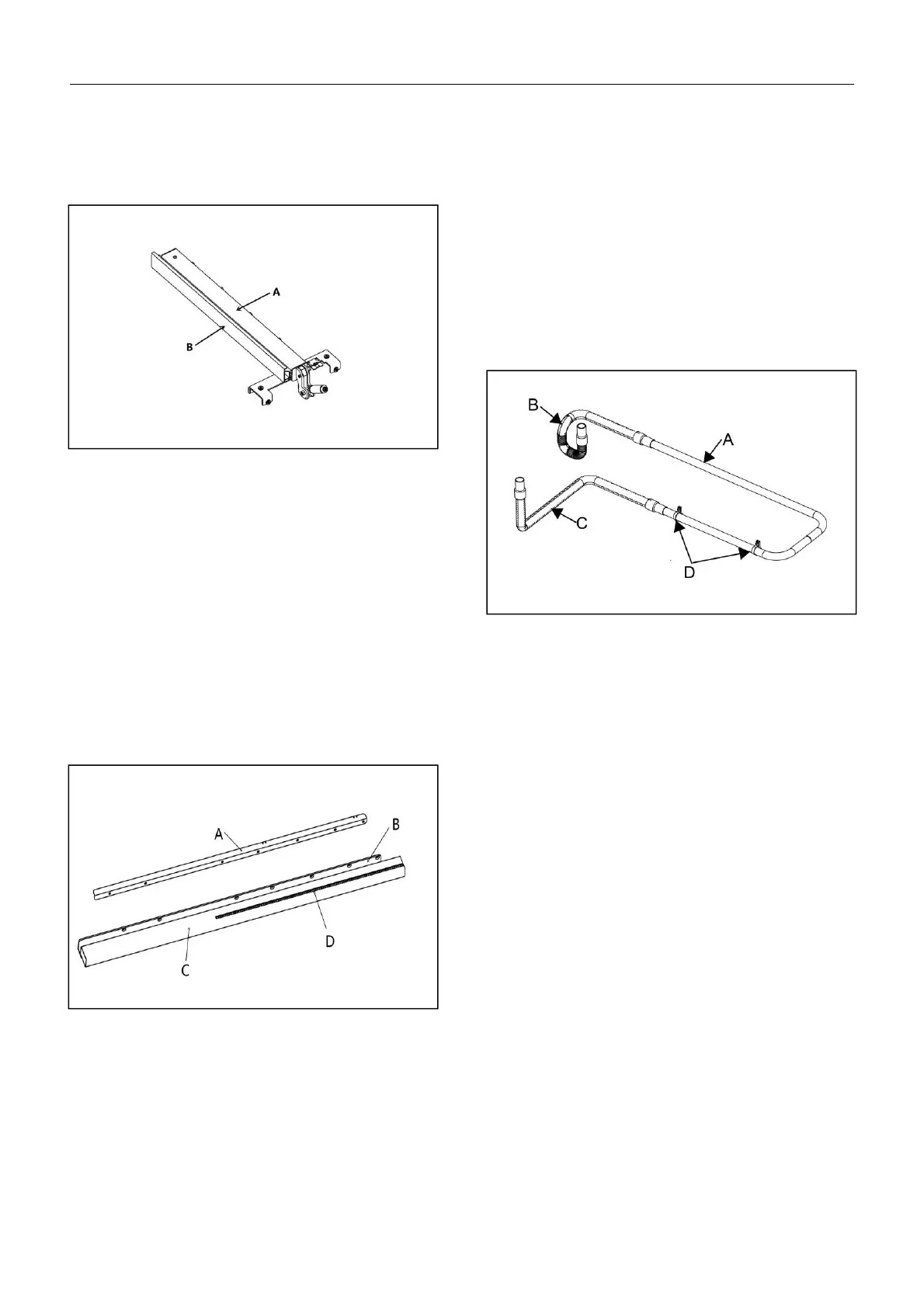

Fence box contents: (Fig. 5-6)
A. Fence body ............................................... 1
B. Fence .......................................... 1
Fig. 5-6
Rail box contents: (Fig. 5-7)
A. Rear rail..................................................... 1
B. Front rail .................................................... 1
C. Front rail rectangular tube ...................... 1
D. Front rail tape scale ................................ 1
Note ：
The assembly contains the corresponding
hardware which is not shown in the figure, and
can be checked with the exploded view.
Fig. 5-7
Note ：
There are two types of the guide rails, please
have a check according to the name plate of the
machine:
1. 30 guide rail is for SWDS-2305-30-F.
2. 52”guide rail is for SWDS-2305-50-F.
Over arm box contents: (Fig. 5-8)
A. Over arm ................................................... 1
B. Flexible hose (length 0.6 m) ................... 1
C. Flexible hose(length 1 m) ........................ 1
D. Bracket ...................................................... 2
Note ：
The assembly contains the corresponding
hardware which is not shown in the figure, and
can be checked with the exploded view.
Fig. 5-8
