4. Equipment description

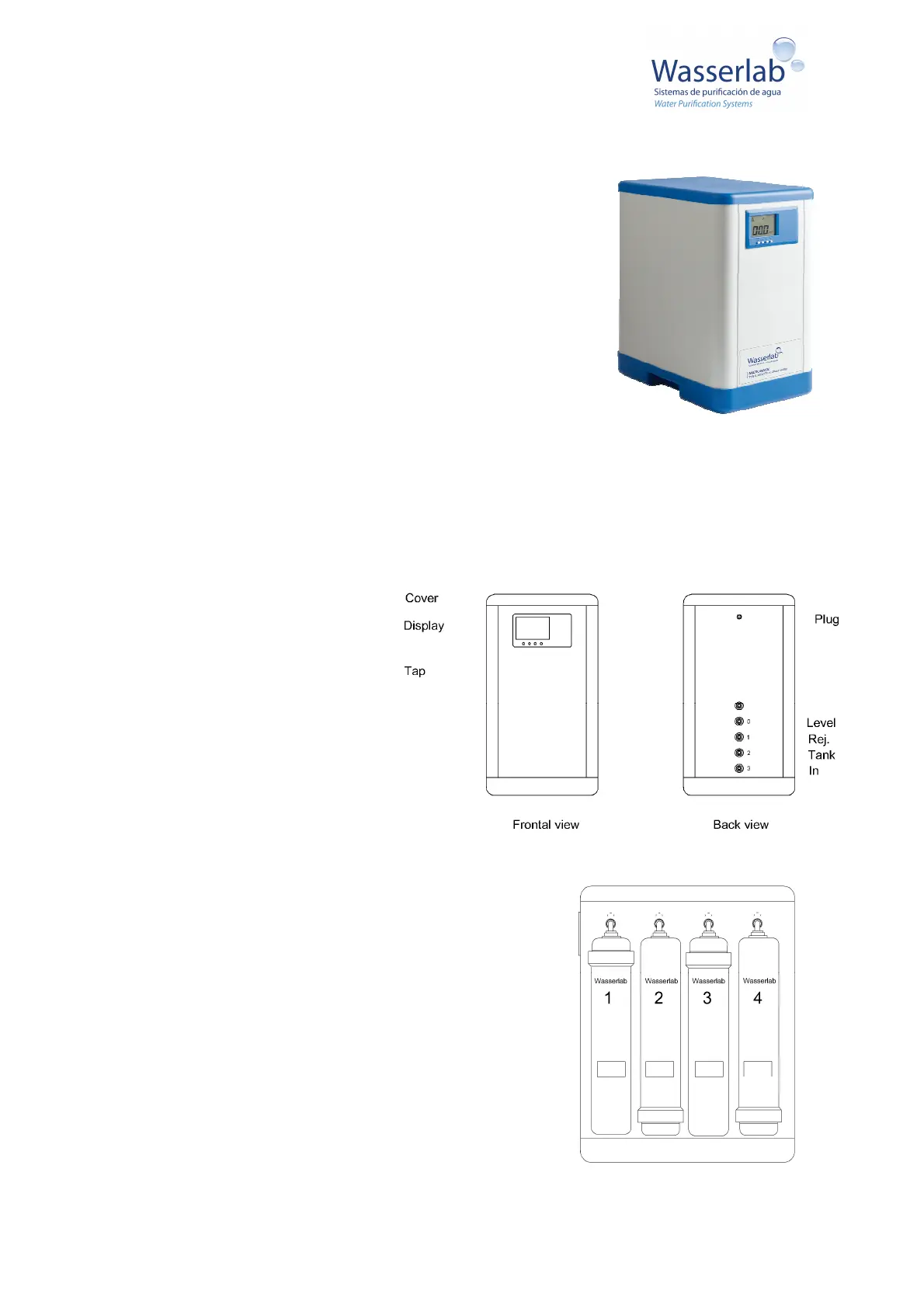

4.1 Equipment exterior:
Electrical connection:
Transformer:
Input: 110 - 230 VAC. Connect to electrical system. Socket Type C, Europlug
Output: 24 VDC, Plug-in type with connection to the back of the equipment
Hydraulic connections:
[0] Tank level:
Connection with open tank level
detector
[1] Rejection:
Rejection water outlet from the reverse
osmosis phase (directed to a drainage)
[2] Tank:
Water outlet from the equipment to a
Type II water storage tank
[3] Feed water:
Equipment feed water inlet.
4.2 Right side
Pretreatment cartridges [1] and [2].
Deionisation resin cartridge (3 and 4)
4.3 Left side
- Reverse Osmosis Membrane (ROM)
- Other components
4.4 Other elements
- Tank
- Transformer
- Spanner wrench for cartridges and ROM
