Watchguard AP130 - Mounting Methods

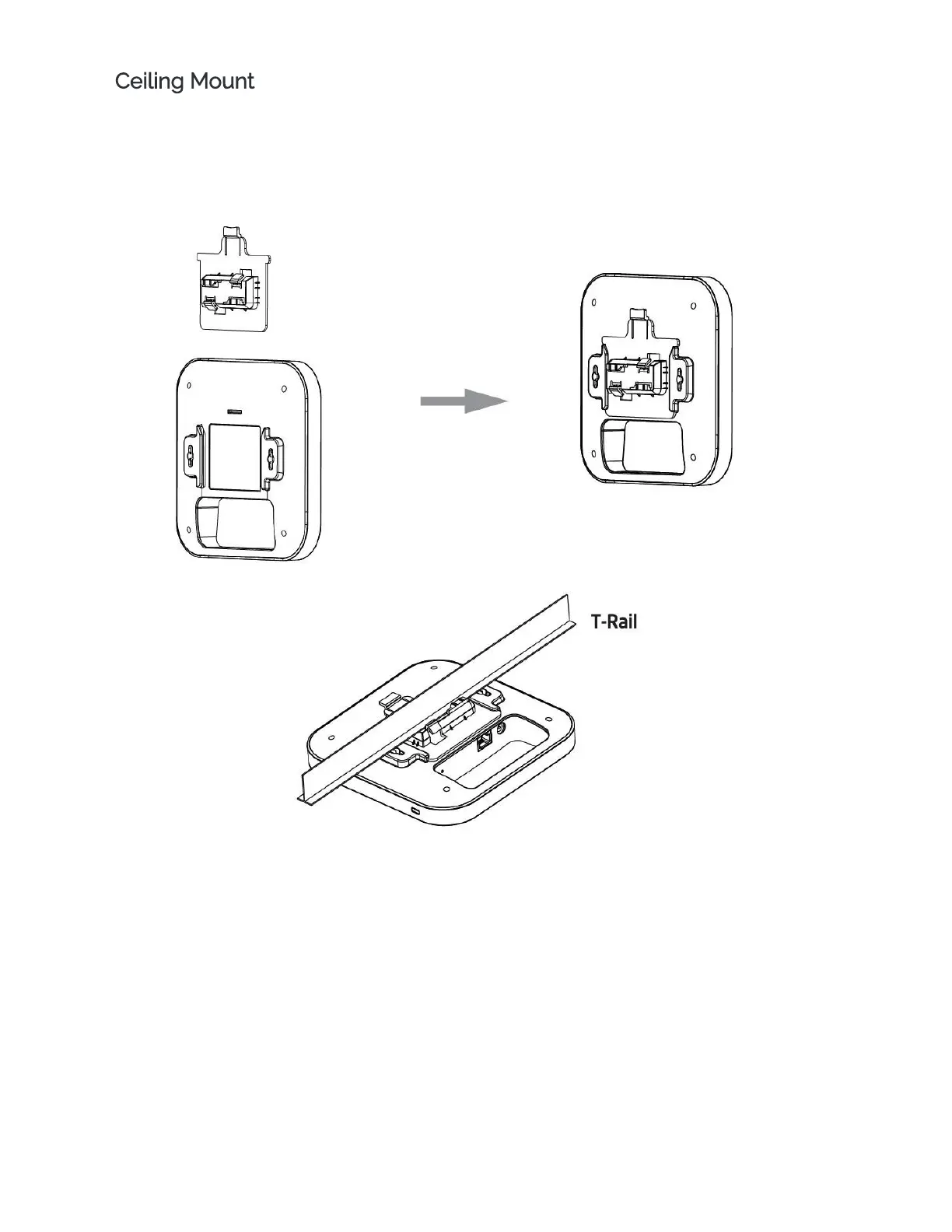

Ceiling Mount
The ceiling mount bracket is intended for use with ceilings with a t-rail system.
1. Slide the ceiling mount base into the slot on the back panel of the access point.
2. Hold the access point with one hand to reach the other hand over the t-rail sides of the bracket.
3. Attach the stationary end of the ceiling mount bracket on to the t-rail.
