SETTING UP THE UNIT
SURFACE CLEANING AND ADJUSTING CLEARANCE HEIGHT
MAINTENANCE AND LONG TERM STORAGE
Note:
While cleaning, leaves may settle around the propeller reducing cleaning
eectiveness. Should this occur, just shake the Leaf Vac back and forth to
dislodge the settling leaves and continue cleaning.
English

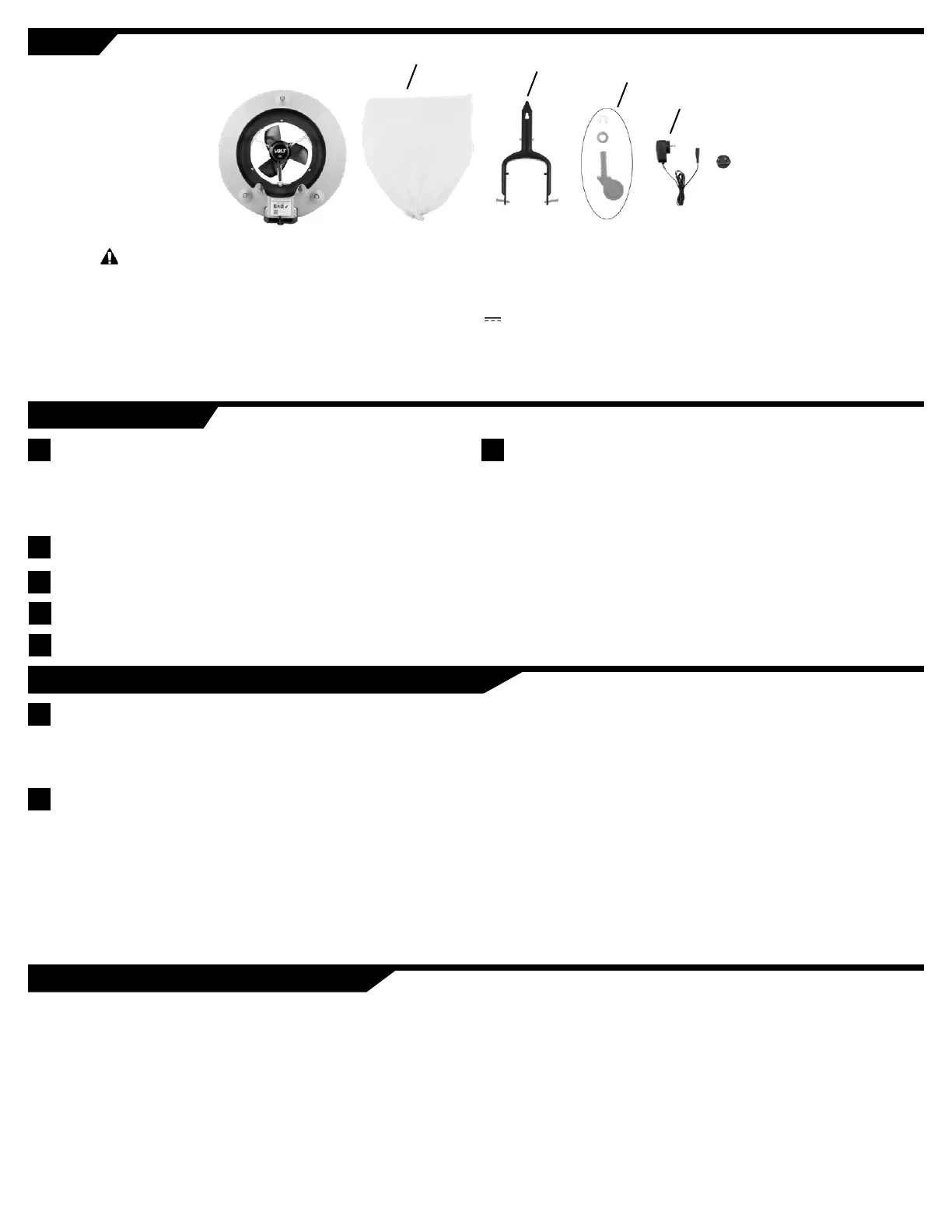

(1) Filter Bag
(2) Pole Adapter
(3) Wheel Assembly
(4) Charger and EU Adapter
P11A X022AP
P11A062VTR
P11A050LD
LC099-3S6SQ
1
2
3
4
Charging Your Cleaner
Closing Charging Port
Securing Pole Adapter
Surface Cleaning
Adjusting Clearance Height
Attaching Filter Bag
Inserting Pool Pole (Not included)
Turning Unit ON/OFF
A
B
C
G
H
D
E
F
Initial Charge 4 Hours
Recharging (After Complete Discharge) 4 Hours
Maximum charging time should not exceed 24 Hours
Push the pole adapter down until the adapter locks in place. Submerge the cleaner to turn it “ON”. The Leaf Vac may now be
used in the “Wheels Up” position to skim leaves and other oating debris from the pool’s surface.
The Leaf Vac is packaged with its clearance height in the “LOW” position. The height of the Leaf Vac can be raised up to 1/4
inch if needed by doing the following: H.1 - Use a small screwdriver or pair of needle-nose pliers to remove the “E”-clip from
the top of the wheel pivot shaft. H.2 - Remove the wheel pivot shaft assembly. Don’t lose the “E” - clip and spacer.
H.3 - Place the spacer on the pivot shaft and guide the shaft back into the body from beneath. H.4 - Replace the “E”-clip on
the top of the shaft.
Repeat these procedures on the remaining 2 wheel pivot assemblies.
Cleaning the Filter Bag
• You should remove and clean the Filter Bag following each use.
• Clean out the debris bag following each use and carefully remove any debris that might be stuck in the propeller area of the cleaner.
• Don’t scrub the bag against itself while rinsing it.
Long Term Storage
• Always clean the Unit and Filter Bag before storing.
• Always store and charge your cleaner in a cool, dry indoor shelter.
• Recharge the cleaner indoors for 4 hours after each month of inactivity.
• Never leave your charger connected to the cleaner for more than 24 hours.
Only use the battery charger supplied with the cleaner.
SKU: 11A0060LS
Battery charger Input.........................................................................100-240V-50-60Hz, 0.3A Maximum
Specications
Battery charger Output.......................................................................................................12.6V, 1.A
Water temperature range................................................... Maximum 96°F, (35°C) Minimum 40°F, (5°C)
Operation Depth.......................................................... Maximum 12 ft. (3.5 m), Minimum 10 in. (0.25 m)
Battery Technical Data................................................................11.1V, 2200mAh, 24.42Wh, 3S1P Li-Ion
Charge temperature.................................................... Maximum 100°F, (37.7°C) Minimum 50°F, (10°C)
The cleaner is equipped with a water sensor that automatically
powers the unit ON and OFF.
Power ON, submerge in water. (2 second delay).
Power OFF, remove from water.
