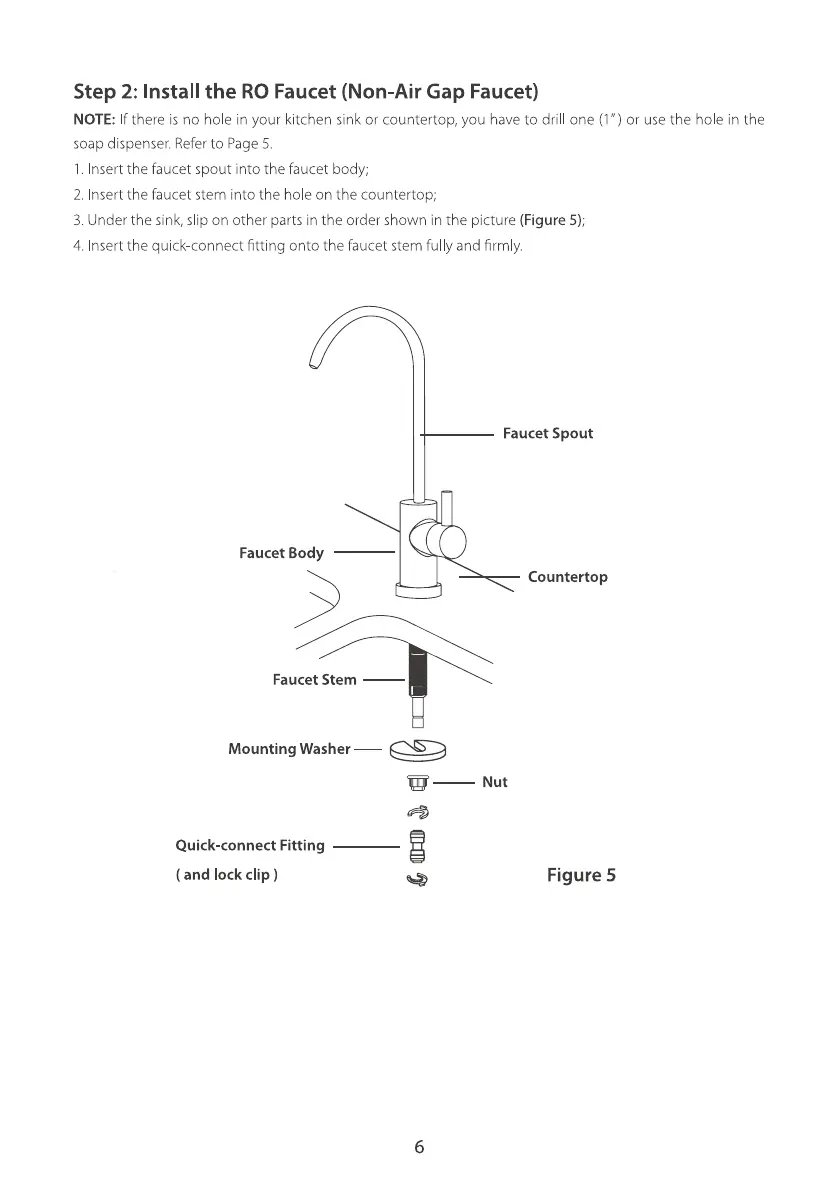

Step 2: Install the RO Faucet (Non-Air Gap Faucet)
NOTE:If there is no hole in your kitchen sink or countertop, you have to drill one (1") or usethe hole in the
soapdispenser Referto Page5.
1.Insert the faucet spout into the faucet body;
2. Insert the faucet stem into the hole on the countertop;
3.Under the sink,slip on other parts in the order shown in the picture (Figure 5);
4. Insert the quick-connect fitting onto the faucet stem ful y and firm y.
Faucet Body
Faucet Stem
Mounting Washer —
Quick-connect Fitting
( and lock clip )
Faucet Spout
Countertop
Nut
Figure 5
6
