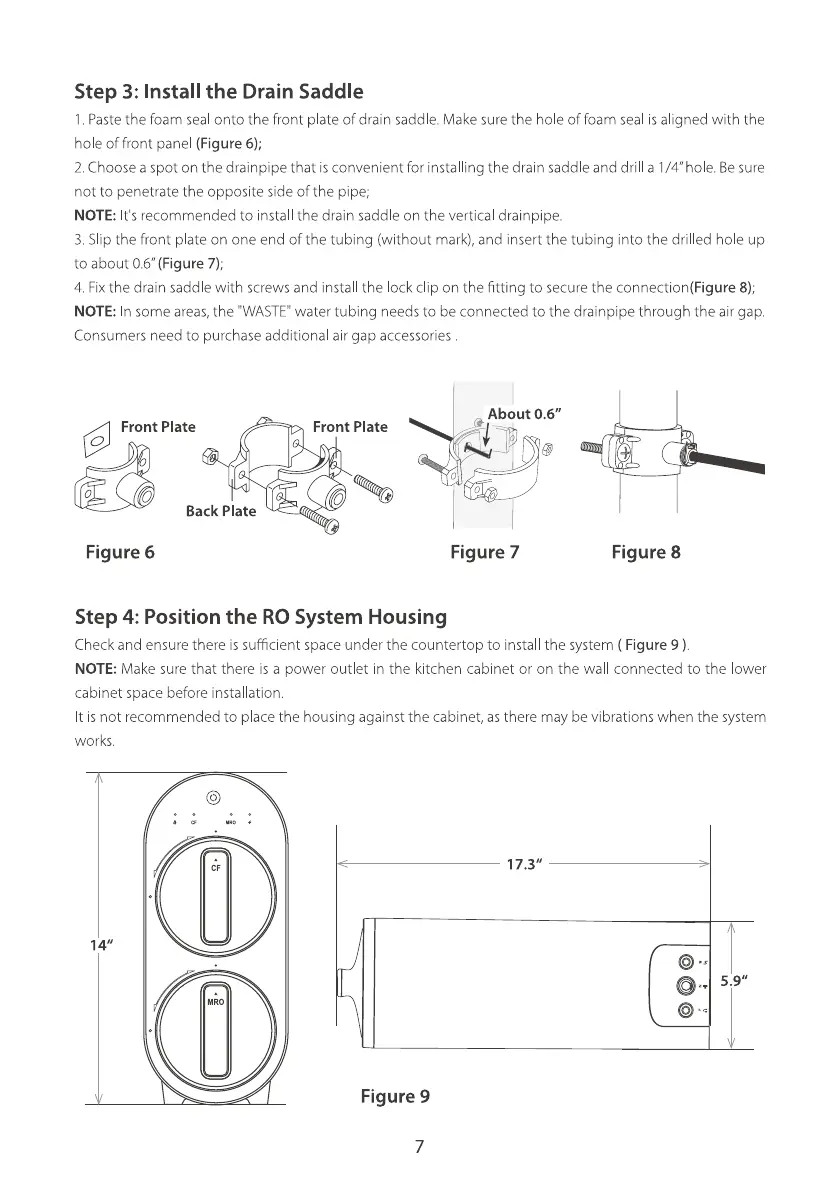

Step 3: Install the Drain Saddle
1.Pastethe foam sealonto the front plate of drain saddle.Makesurethe hole of foam sealisaligned with the
hole of front panel (Figure 6);
2.Choosea spot on the drainpipe that isconvenient for installing the drain saddleand drill a 1/4"hole. Besure
not to penetrate the opposite side of the pipe;
NOTE: It's recommended to instal the drain saddle on the vertical drainpipe.
3. Slipthe front p ate on one end of the tubing (without mark),and insertthe tubing into the drilled hole up
to about 0.6"(Figure 7);
4. Fixthe drain saddlewith screwsand install the lock clip on the fitting to securethe connection(Figure 8);
NOTE:In some areas,the "WASTE"water tubing needsto be connected to the drainpipe through the airgap.
Consumersneedto purchaseadditional air gap accessories.
About 0.6"
5.9"
Front Plate
Back Plate
Figure 6
Front Plate
C)
Figure 7 Figure 8
Step 4: Position the RO System Housing
Check and ensure there is sufficient space under the countertop to nstall the system ( Figure 9).
NOTE: Make sure that there is a power outlet in the kitchen cabinet or on the wall connected to the lower
cabinet space before installation.
t is not recommended to p ace the housing against the cabinet, as there may be vibrations when the system
wo ks.
17.3"
14"
MRO
O
Figure 9
7
