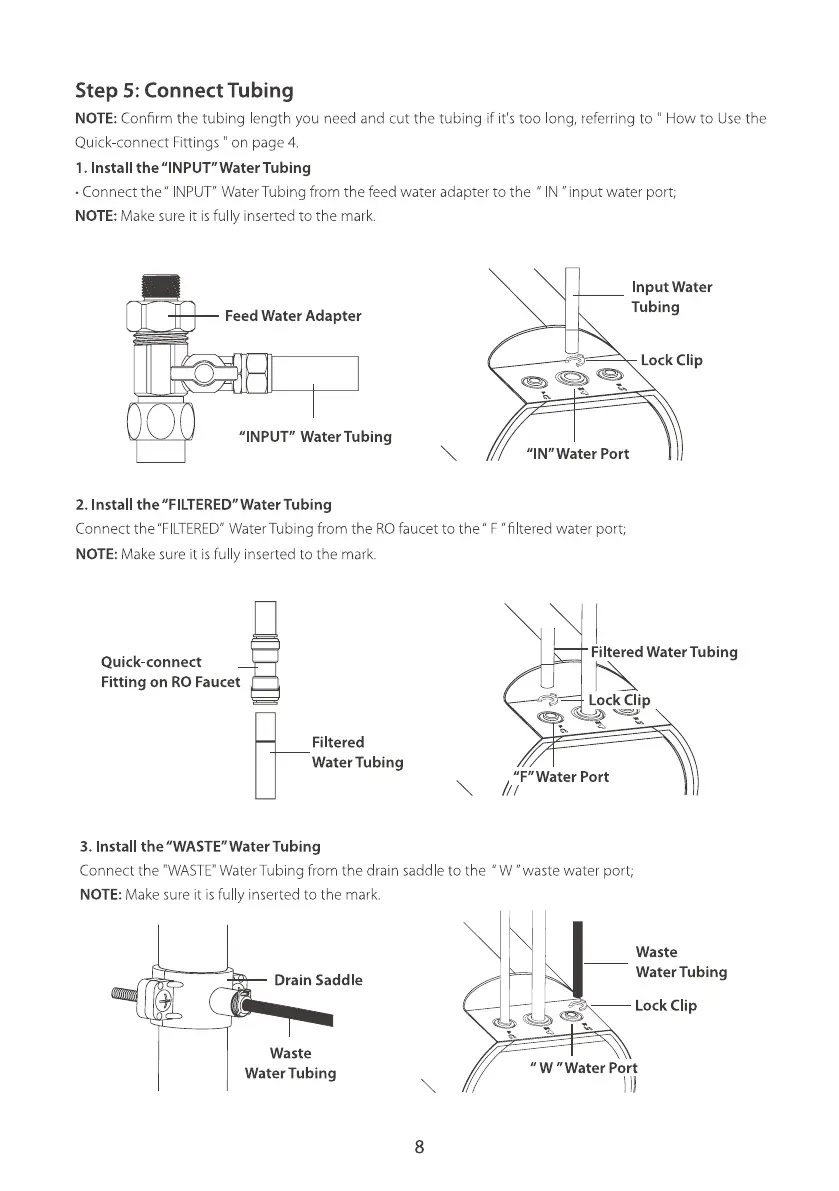

Step 5: Connect Tubing
NOTE: Confirm the tubing ength you need and cut the tubing if it's too ong, referring to How to Use the
Quick-connect Fittings " on page 4.
I . Install the "INPUT" Water Tubing
• Connect the INPUT" WaterTubing from the feed water adapter to the " IN "input water port;
NOTE: Make sure it is ful y inserted to the mark.
Feed Water Adapter
o
"INPUT" Water Tubing
2. Install the "FILTERED"WaterTubing
Input Water
Tubing
Lock Clip
"IN" Water Port
Connect the "FILTERED"Water Tubing from the ROfaucet to the F "filtered water port;
NOTE: Make sure it is fully •nserted to the mark.
Quick-connect
Fitting on RO Faucet
Filtered
Water Tubing
3. Install the "WASTE" Water Tubing
Filtered Water Tubing
Lock Clip
"F" Water Port
Connectthe "WASTE"WaterTubing from the drain saddleto the "W "waste water port;
NOTE:Makesure it isfully inserted to the mark.
Drain Saddle
Waste
Water Tubi ng
8
Waste
Water Tubing
Lock Clip
" W "Water Port
