ATTACHING THE PROPELLER
Before doing anything with the propeller, ensure the cables to the battery
are disconnected.

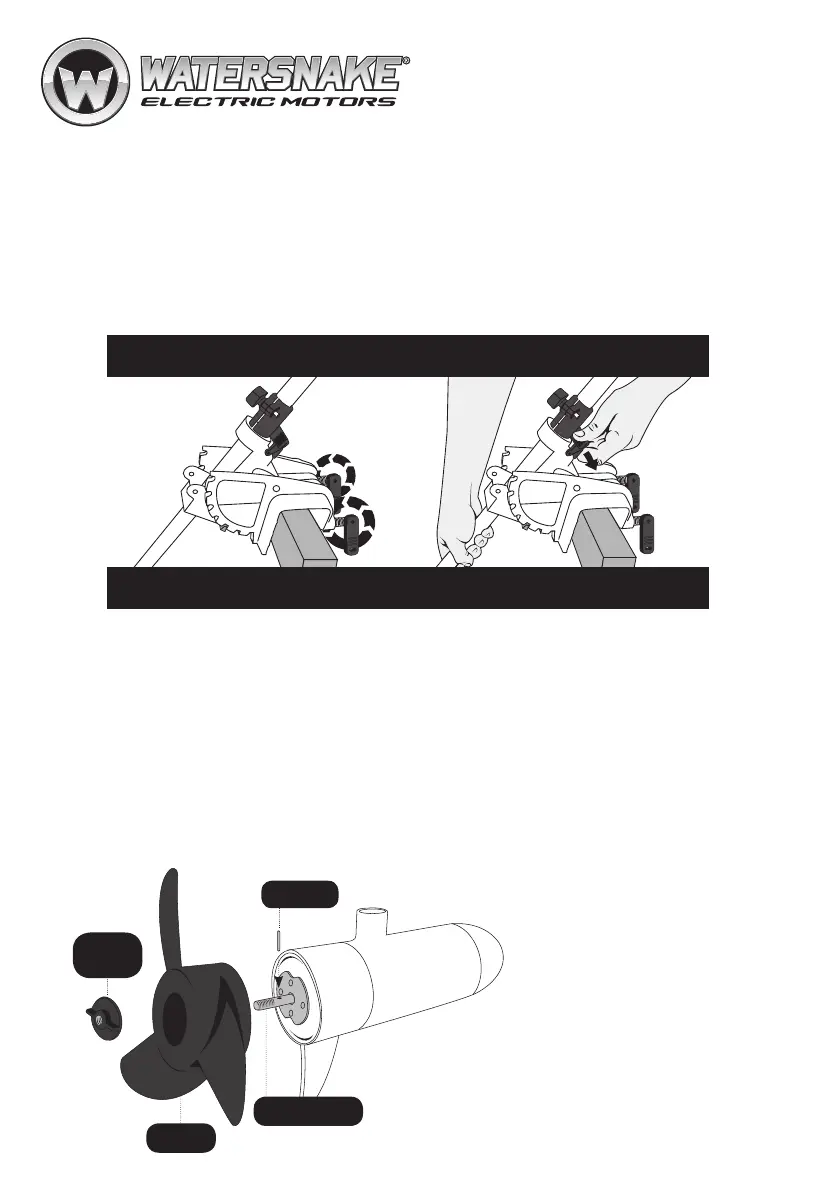

1: Place shear pin in shaft as shown.
2: Align the propeller against the shear pin on the shaft
(there is a groove on the back of the propeller which the shear
pin needs to slot into) and then tighten the propeller nut securely.
1
2
Shear pin
Propeller shaft
Propeller
Propeller
nut
Please note the Venom SX34/26,
SX34/30, SX34/26 and SXW34/30
motors comes with a 2 bladed
propeller.
(A)
(B)
TIGHTEN BOTH BOLTS SECURELY
DEPRESS THE POSITIONING PIN
TO AJUST TILT OF THE BRACKET
Watersnake Distribution Pty Ltd accepts no liability for personal injury or property
damage caused while mounting this motor.
PLEASE NOTE:
ATTACHING THE MOTOR TO YOUR BOAT
Attach the motor to the stern of the boat and tighten both mounting bolts
securely while taking care not to over-tighten. (A)
To adjust the angle of the motor after attachment, hold the motor head with
one hand and depress the positioning pin at the top of the mounting bracket
with your other hand. Press and hold the positioning pin until the desired
angle has been reached, next release the pin and ensure the mechanism locks
securely. (B)
