4

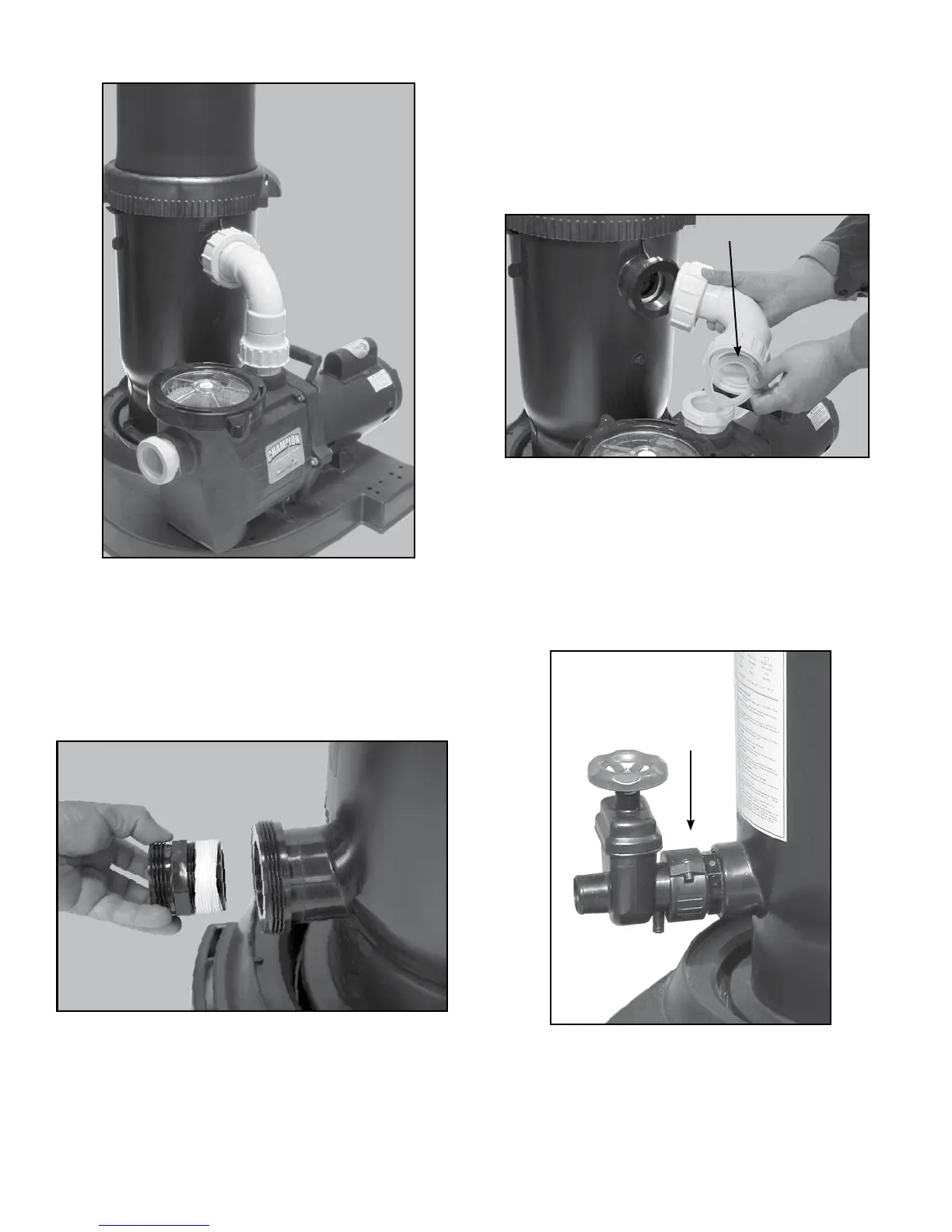

5. Wrap 3 or 4 turns of Teflon tape (provided) on 2" x 1 ½" MPT union
fitting and install into “outlet” of filter.
6. Place the other 1 ½" gasket in gate valve split-nut and thread onto
2"x 1 ½" MPT union fitting.
NOTE: Do not put Teflon tape on adapter threads to gate valve.
Place gasket
in split-nut
4. Make sure gasket is in place on elbow assembly and install
onto tailpiece. Elbow side has label “inlet.” Place gasket in pump
end of elbow assembly and attach to discharge on pump. Insert
snap pins through motor base and into filter base.
Gasket
To Next Page
