ASSEMBLY INSTRUCTIONS
FOR FILTER SYSTEM WITH ONE-PIECE BASE

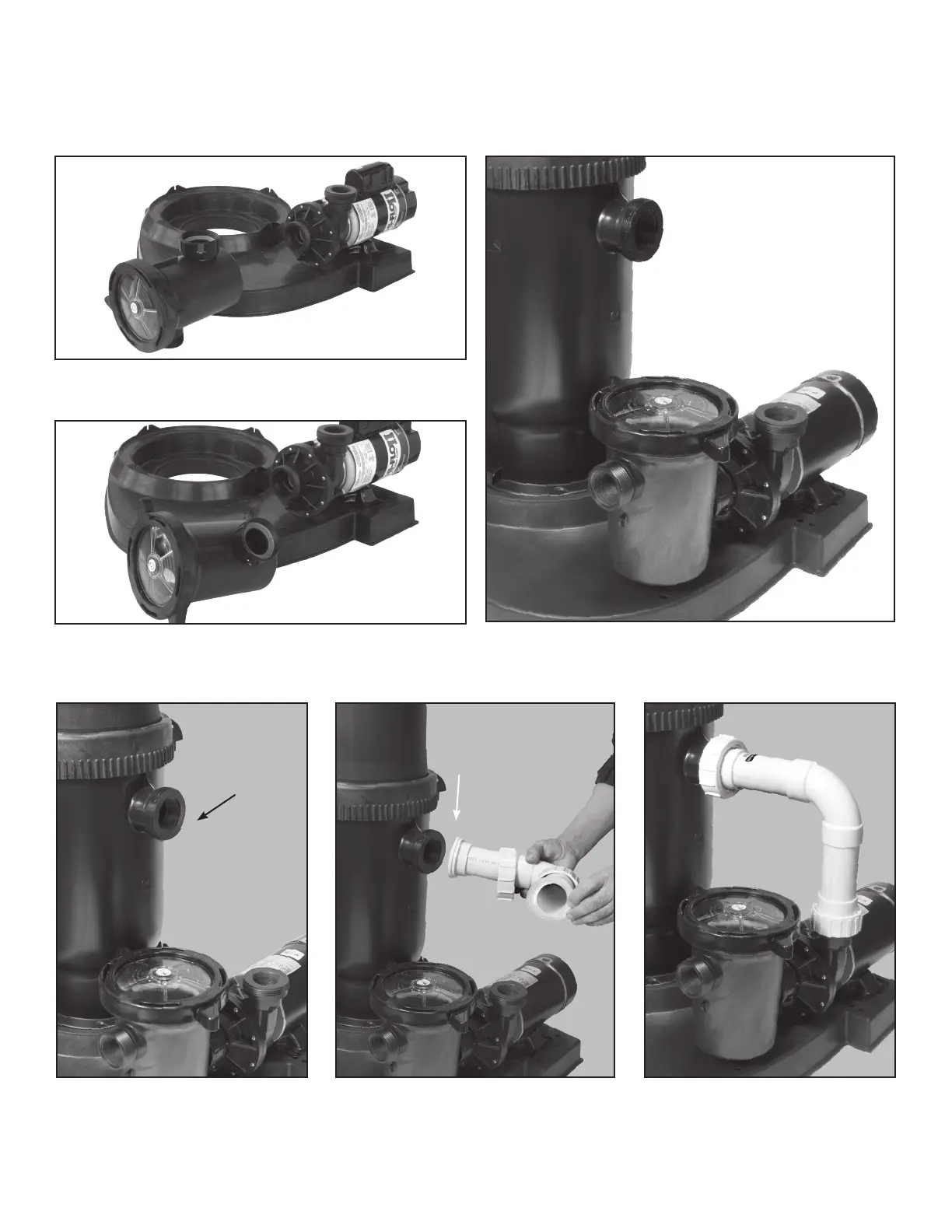

1. Put the base on level ground. Place pump on base.
3. Place lter inside base. DO NOT insert snap pins through (secure)
motor base until Step 4 is complete.
2. Remove gasket from inside trap and place in union tting. Thread
trap onto pump.
4. Wrap 3 or 4 turns of Teon tape on 2" tailpiece and thread into “inlet” in lter. Make sure gasket is in place on elbow assembly and install onto
tailpiece. Elbow side has label “inlet”. Place gasket in pump end of elbow assembly and attach to discharge on pump. Insert snap pins through
motor base and into lter base.
Teon taped
2" tailpiece
threaded
into “inlet”
Gasket
