Page 6
WALL-MOUNT INSTALLATION
is unit can also be mounted on a wall, either vertically or horizontally.

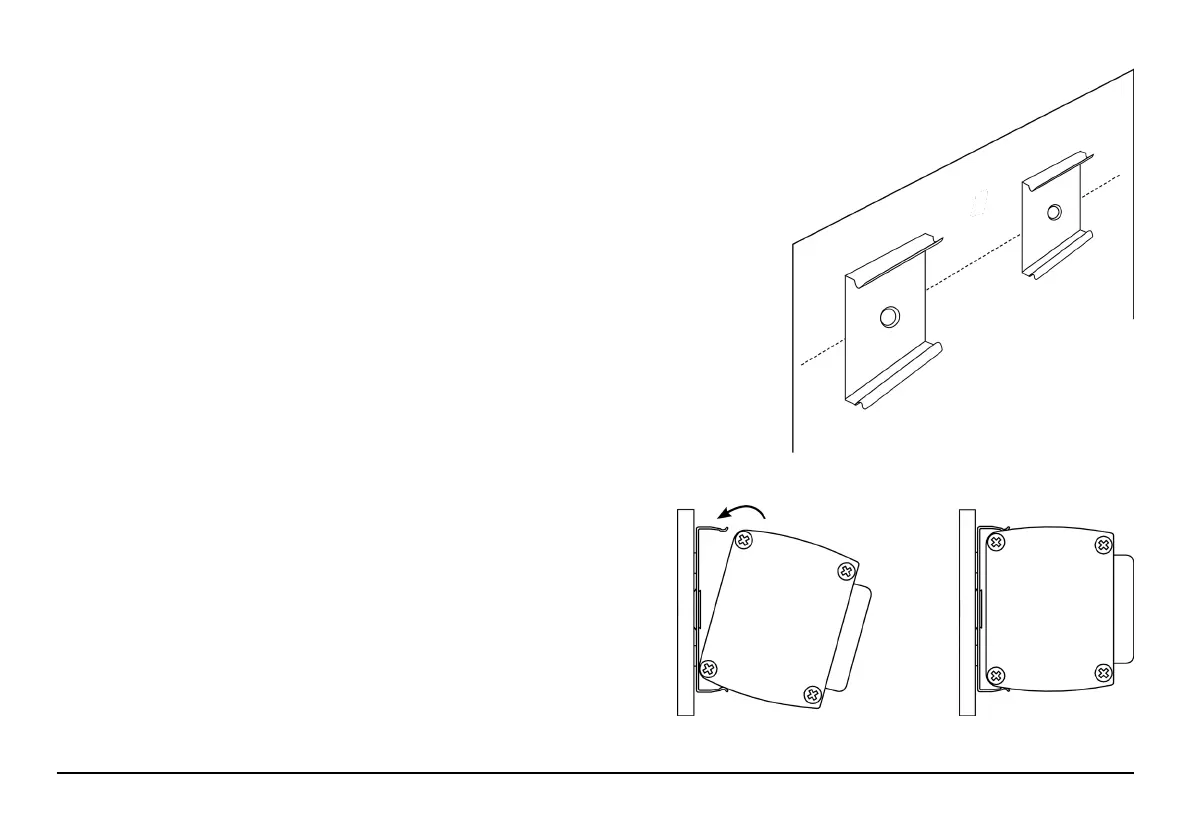

Install the Clips
Draw a level line where you want to mount the power strip
Using wall anchors or other appropriate hardware (not provided), attach the mounting
brackets (with the clips oriented as shown) centered on the level line, so that the clips
are 4"–6" from each end of the power strip. For 18-outlet units, place the third clip
in the center. For the greatest stability and safety, we recommend you mount the
brackets to studs wherever possible.
Mount the Strip
As shown below right, align the power strip with the inside of one edge of the mounting bracket.
Apply pressure and rotate until the power strip snaps into place.
