Watts Dead Level Series User Manual

6

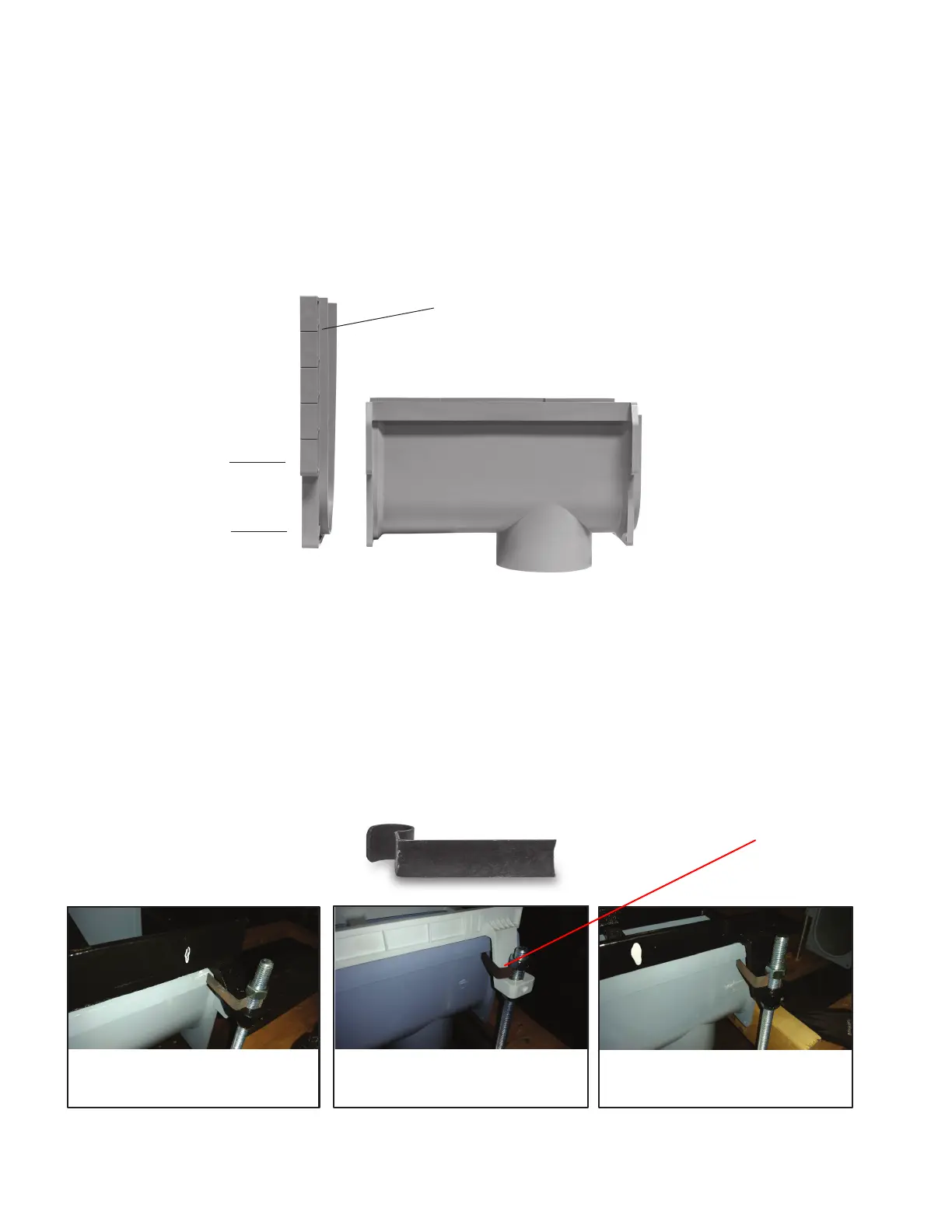

6B. Spacers
6B.1 Dead Level systems are shipped with a CA-F 3/4" spacer. These spacers are provided for
filling in on long runs when heat can cause shrinkage in the channel connections. They
will fit both male and female ends.
6B.2 The CA-F is equipped with indentations for cutting to fit the top of the channel.
6B.3 One is provided for optional use every 20 feet, on 6" and on 12" ductile iron frames.
CA-F
Optional for use at 20 ft.
intervals. Attaches with 4
self-tapping screws
Lines of indentations for
cutting easily to fit the
top of the channel.
Holes for attaching to
channels.
Dead Level Channel Retention Clip
6C. Channel Retention Clips
6C.1 Dead Level Channel Retention Clips are provided for attaching the channels to the rebar.
6C.2 The channel retention clips provide stability in keeping the channel held tightly in place
while waiting for concrete to be poured.
6C.3 The channel retention clips are for optional use but provided for your convenience and .
ease in installation.
Channel Retention
Clips attach to rebar
and frame for stability.
The Clip On 12" DI Frame
Engages The Channel Against
The Top Lip
The Clip on 6" Poly Frame Engages
The Channel Against the Side
Underneath the Lip
The Clip on 6" DI Frame Engages
The Channel Against the Side
Underneath The Lip
