Watts Dead Level Series User Manual

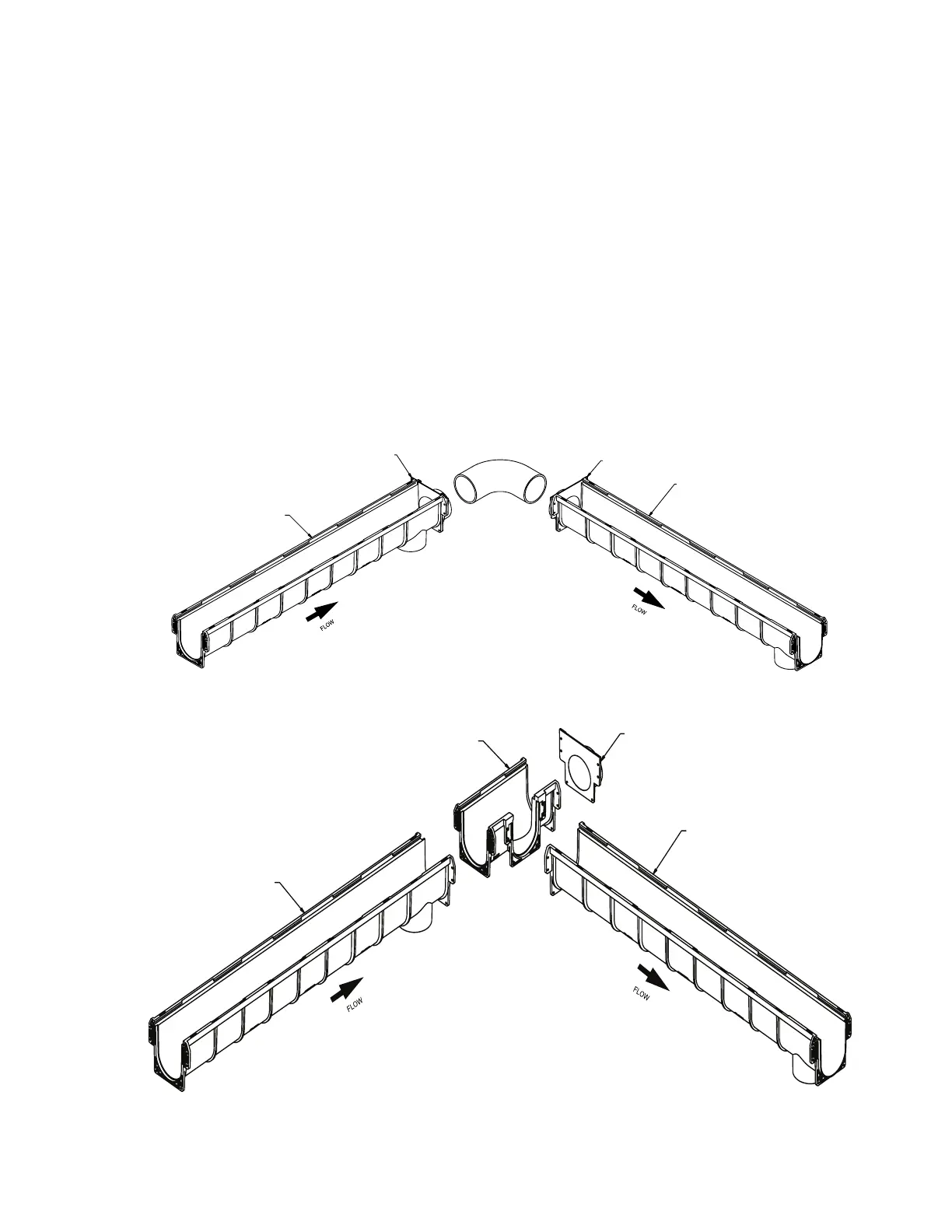

STANDARD SECTION
End Cap
Standard Section
End Cap
Standard Section
Corner & Tee Section
End Cap
Standard Section
Standard Section
7. Corners/Tees
7.1 If the system layout requires Corner/Tee Sections, follow the general installation guidelines.
7.2 Invert the Corner/Tee section on a flat surface, and use a reciprocating saw
to remove the appropriate cutout(s) on the section. (Be sure to note whether
the connecting channel(s) have a tongue or groove connection prior to
cutting the Corner/Tee, and remove a cutout with an opposite connection
type than the connecting channel).
7.3 With the cutout correctly removed, the tongue should slide inside the mating
groove, and the flanges should sit flush against each other (Fig. J).
FIG. J
7
