8. Grate Installation
8.1 Grates should always be installed prior to the concrete pour. If used, install
Frame Guards prior to setting the grates (Fig. E).
7.4 Secure the channels and frames with the appropriate hardware (see 6.
Connection Sections)
Note: Dead Level corners or tees can also be formed with a Catch Basin (See
"Catch Basins & Piping Connections"), or underground piping. To pipe under-
ground terminate the trench drains a short distance from the corner joint. Attach
the appropriate endcaps, then connect the endcaps with 4" Sch 40 90's, tees,
and piping as required (Fig. J).

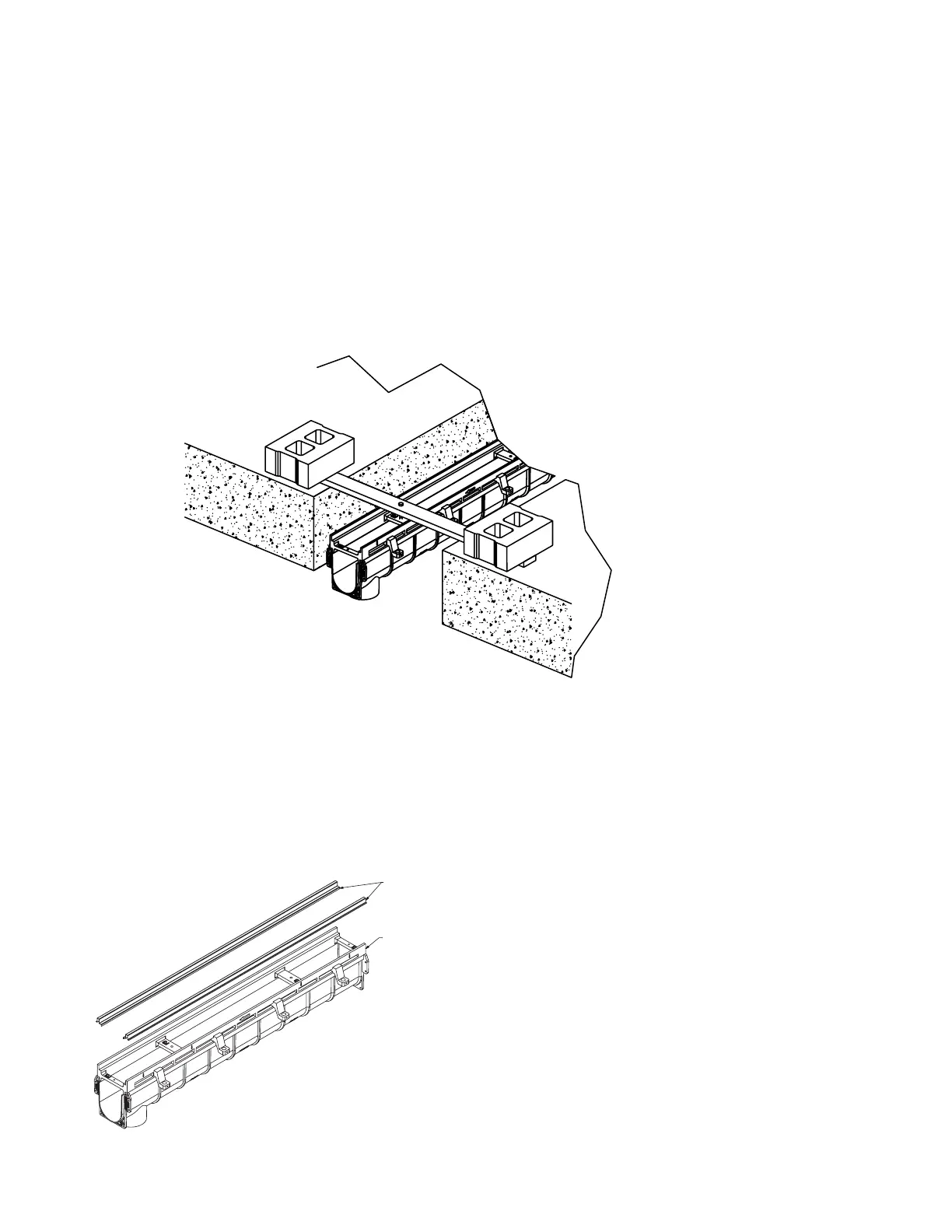

FIG. J
Frame Guards
(Optional)
Channel & Frame
FIG. E
8
