Watts GSX Series User Manual

6
GAS LEAK DETECTORS

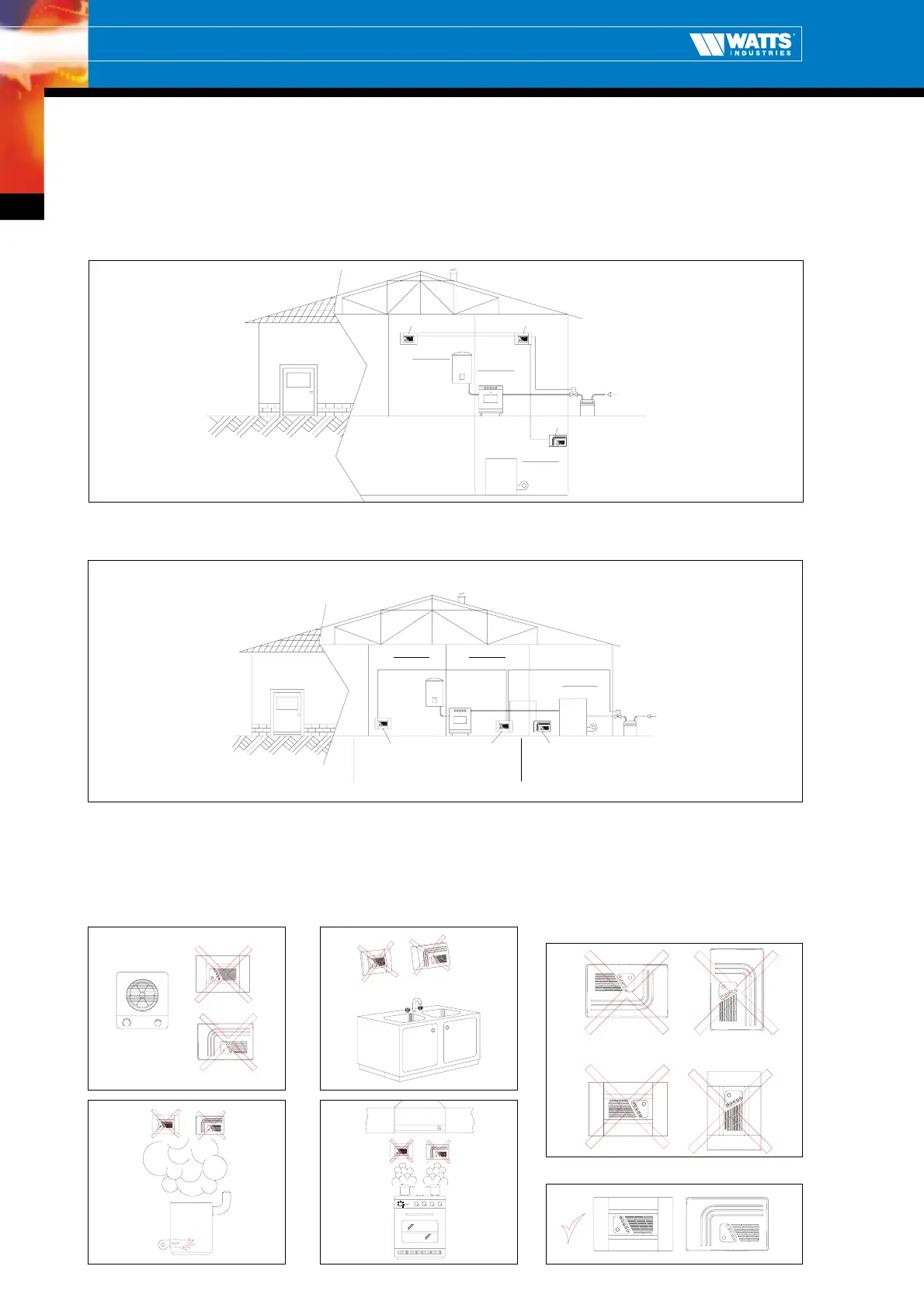

Install the “Gas Sentinel” gas leak detector in a position where the gas to be monitored tends to build up, with
reference to figures 1 and 2 :
Installation
•
For LPG version (butane, propane, LPG) at a max distance of 30 cm from the floor
max 4 m
GAS
30 cm
30 cm
min. 30 cm
max.
max.
NET
MASTER
NET
SLAVE
SLAVE
max 4 m
min. 30 cm
max 4 m
min. 30 cm
Installation example for methane gas leak detector
max 4 m
GAS
min. 30 cm
NET
NET
MASTER
SLAVE
SLAVE
max 4 m
min. 30 cm
max 4 m
min. 30 cm
max. 30 cm max. 30 cm
Installation example for LPG gas leak detector
•
For MET version (for methane or natural gas) at a max distance of 30 cm from the highest point
of the ceiling
•
install the gas leak detector (for wall or flush mounting) at a distance lying between 0.30 and 4 m from
gas-fired appliances.
•
do NOT install the gas leak detector in the vicinity of sinks, hobs, vents or extractor fans.
Examples showing incorrect installations
0
1
2
3
4
5
6
Incorrect installation
Correct installation
Fig.1
Fig.2
