Watts H2O-DWRO300 User Manual

Page 5

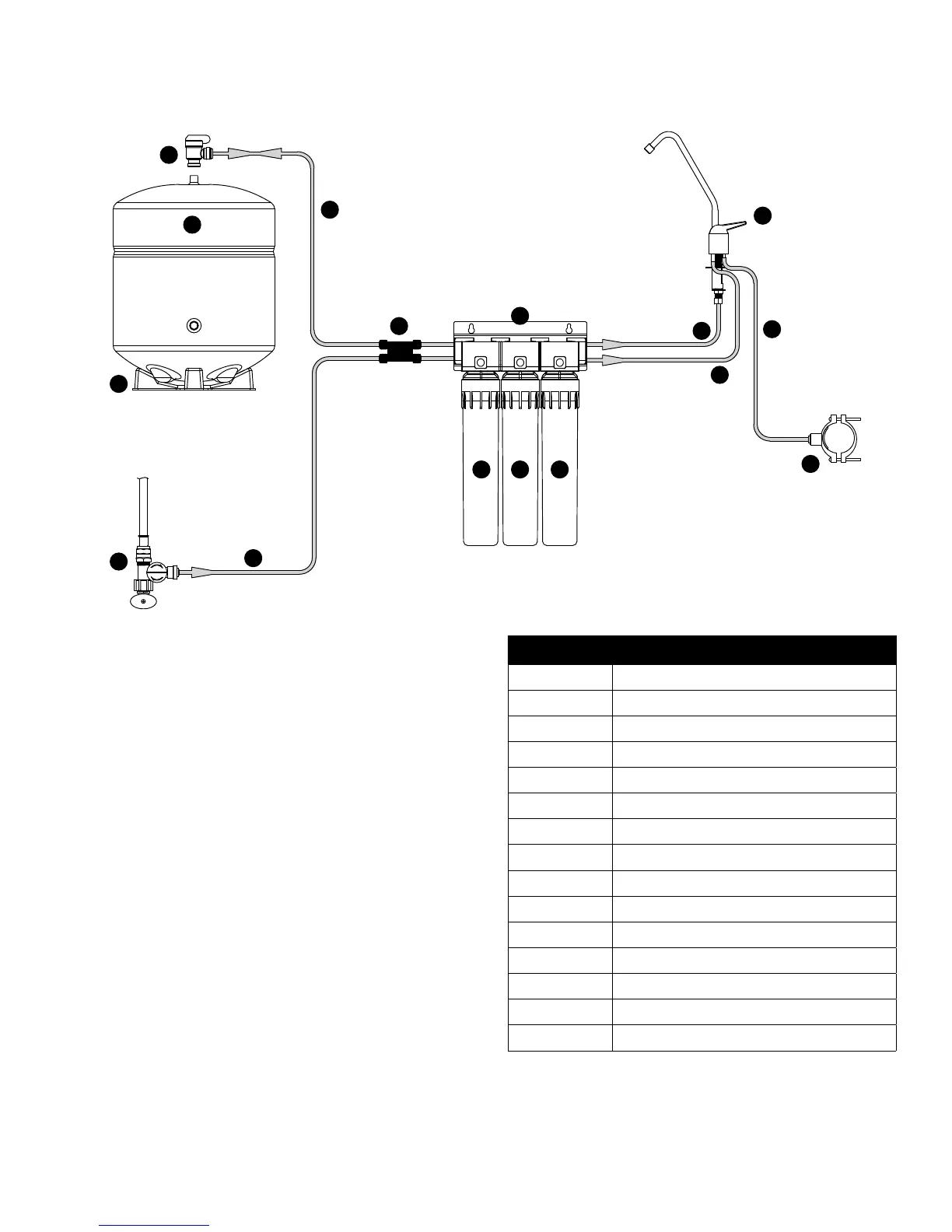

Plumbing Diagram and Parts List
COLD WATER
ANGLE-STOP
SUPPLY
ADAPT
-A-
VALVE
TANK
GREEN-1/4" TUBE
FEED
AUTO-SHUT OFF
VALVE
DRAIN
SADDLE
BLUE 1/4" TUBE
TANK
BLUE 1/4" TUBE
FAUCET
RED 1/4" TUBE
BRINE
BLACK 3/8" TUBE
DRAIN
FAUCET
1
9
5
13
3
11
7
15
2
10
10
6
14
4
12
8
Parts List
Item Description
1 Filter Module
2 Automatic Shut off Valve
3 Storage Tank - 3 Gallons
4 Adapt-a-Valve
5 Faucet - TMT - Brushed Nickel
6 Tank Valve - 1/4F X 1/4" QC
7 Drain Saddle - 3/8 QC - Kit
8 Tank Stand
9 1/4" Green Tubing with 90 Bend -4ft.
10 1/4" Blue Tubing with 90 Bend -4ft.
11 3/8" Black Tubing - 3ft. X 1
12 1/4" Red Tubing with 90 Bend -4ft.
13 Carbon Block Filter (H2O-F12)
14 Reverse Osmosis Membrane Filter (H2O-F16)
15 Granular Activated Carbon Filter (H2O-F17)
