Setup WAVECOM Decoder W74PC, W-PCI/e, W-CODE, W-CLOUD Manual V9.1.0

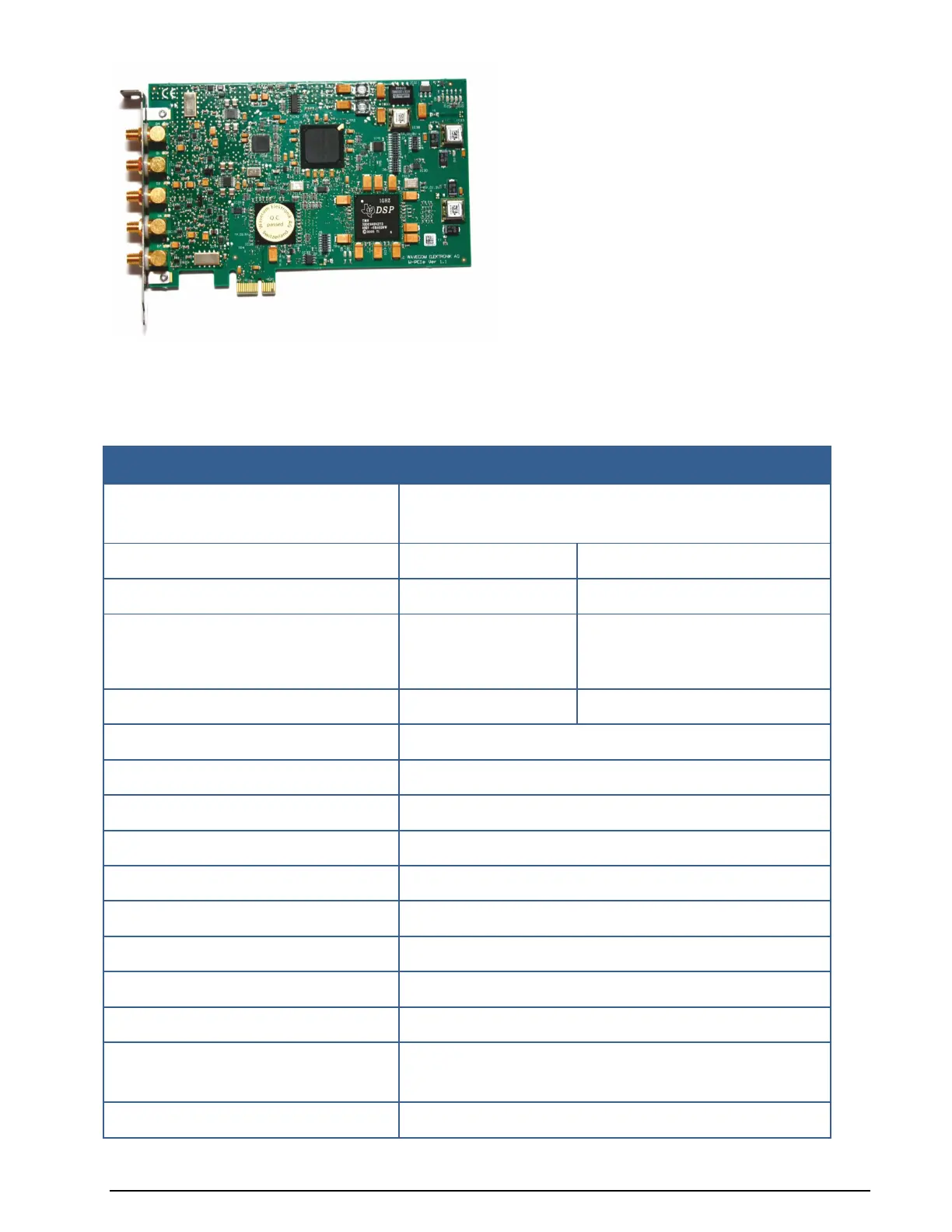

W-PCIe card.
Both W-PCI and W-PCIe cards have five SMA signal inputs. The following table is a technical hardware
specification.
Specification
Card type
Half-size PCI card (W-PCI),
Half-size PCIe x1 card (W-PCI Express)
Inputs
AFIF#1 and AFIF#2
IF70#1a, IF70#1b and IF70#2
Frequency range
50 Hz – 25 MHz
52.5 MHz – 87.5 MHz (SAW filter)
Signal level
2 mVrms – 0.5 Vrms
20 mVrms – 2.5 Vrms
(with 20 dB attenuator)
20 mVrms – 2.5 Vrms
Input impedance
> 1 kOhm
50 Ohm
Bandwidth
5 kHz – 500 kHz
Frequency raster DDC
1.0 Hz
Input max sampling rate
92.16 MHz
Sampling rate jitter
1 ps
Connector
SMA female
Two simultaneously active inputs
AFIF#1 or IF70#1a or IF70#1b – with – AFIF#2 or IF70#2
Dimensions (LxWxH)
168x106x22 mm
Weight
150 g
Power requirement (typical values)
1.0 A @ +3.3 V, 0.4 A @ +12 V
Bus interface
32-bit PCI, 3.3 V, 132 MB/sec (W-PCI)
PCIe x 1, 250 MB/s (W-PCIe)
Operating temperature range
0 °C to 50 °C
