Waveshare L76X GPS HAT - Expected Result; Raspberry Pi Examples; Hardware Connection

L76X GPS HAT User Manual
9 / 15
Connect L76X GPS HAT to UNO PLUS by Dupont lines, short B by yellow jumpers
L76X GPS HAT
Arduino
5V
5V
GND
GND
RXD
2
TXD
3

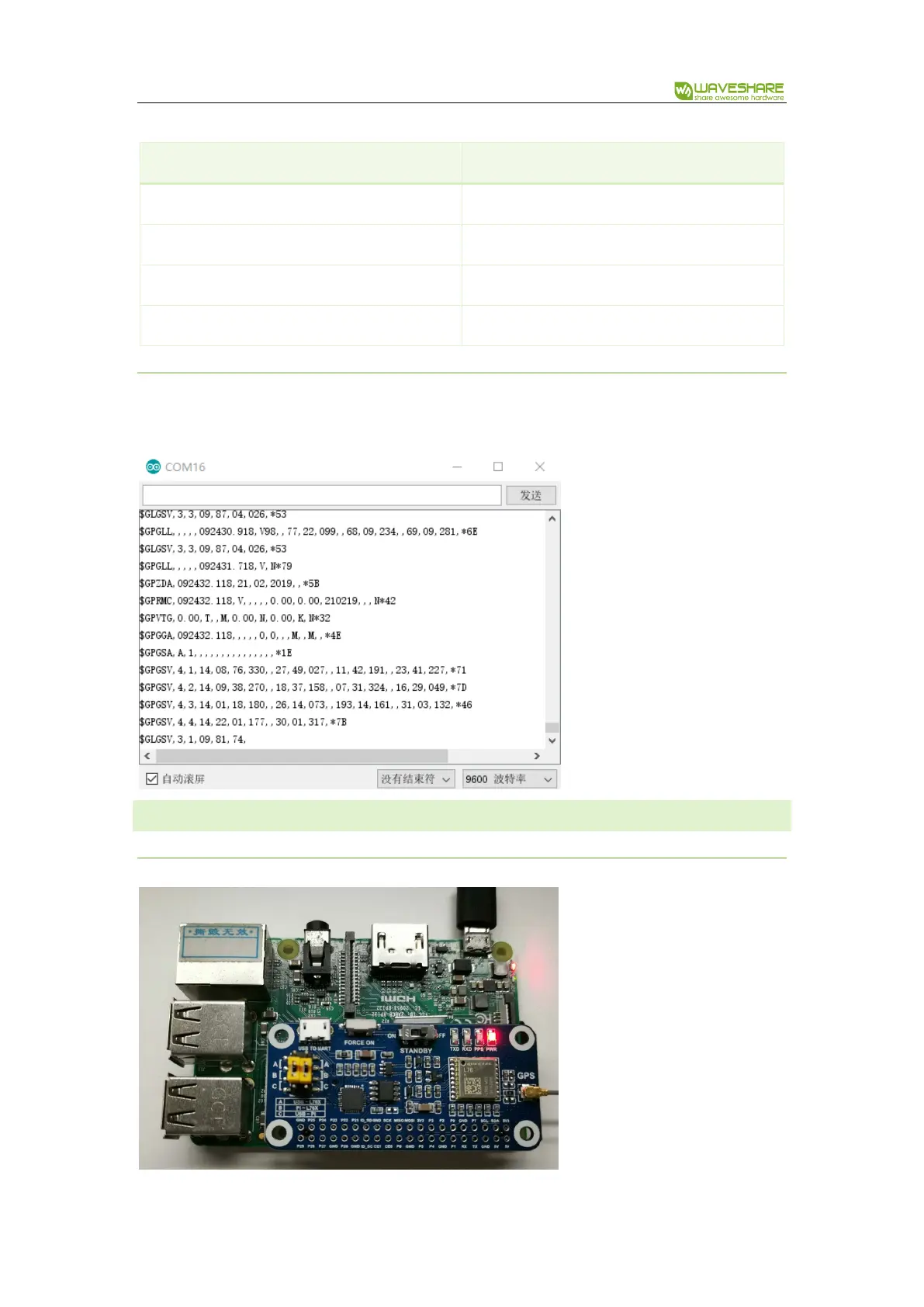

EXPECTED RESULT
It requires about 35s to locate (first time). Open serial monitor and set baud rate to 9600. Data
printed first is original data. Time: L76X GPS HAT output time.
RASPBERRY PI EXAMPLES
HARDWARE CONNECTION
