Wavetek XP Series - Safety Information

2
2A MAX
FUSED
CAT 600V
CAT 1000V
CAT 300V
COM
A
MAX
1000V
750V
200mA MAX
FUSED
BATT 1.5V
BATT 9V
CAT 600V
CAT 1000V
CAT 300V
V
COM
mA
MAX
1000V
750V
Ω
LOGIC
V
Ω
15XP
RANGE
NON
CONTACT
VOLTAGE
HOLD
5XP
MIN MAX
NON
CONTACT
VOLTAGE
HOLD
1000750
200200
2020
22
200
m
200
m
200
2k
20k
200k
2M
20M
200m
20m
2m
200
A
V
V
V
V
mA
A
A
auto-off
OFF
OFF
200
m
2m
20m
1.5V
9V
200
BATT
mA
A
A
2A MAX
FUSED
CAT 600V
CAT 1000V
CAT 300V
COM
A
MAX
1000V
750V
Hz Temp
V
Ω
mA
2A
A
mA
400
1000
A
A
35XP
RANGE
NON
CONTACT
VOLTAGE
HOLD
V
HZ
V
auto-off
˚C
OFF
˚F
mA
A
A
1832
400

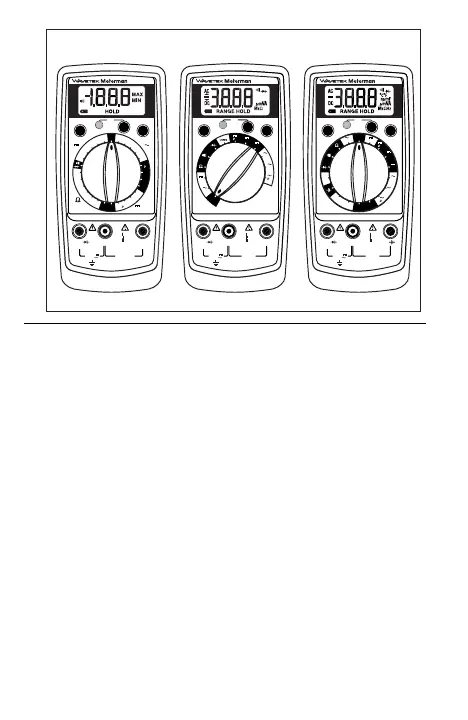

15XP5XP 35XP
Safety Information
• The XP Series Digital Multimeters conform to EN61010-1, Rev-2; CAT I 1000 V,
CAT II 600 V, CAT III 300 V, class 2 and pollution deg.2; CSA 22.2 -1010-1. It is
recommended for use with local level power distribution, appliances, portable
equipment, etc., where only smaller transient overvoltages may occur, and not
for primary supply lines, overhead lines, and cable systems.
• Do not exceed the maximum overload limits per function (see specifications)
nor the limits marked on the instrument itself. Never apply more than
1000 V dc/750 V ac rms between the test lead and earth ground.
• Inspect the DMM, test leads and accessories before every use. Do not use any
damaged part.
• Never ground yourself when taking measurements. Do not touch exposed
circuit elements or test probe tips.
• Do not operate the instrument in an explosive atmosphere.
• Exercise extreme caution when: measuring voltage >20 V // current >10 mA //
AC power line with inductive loads // AC power line during electrical storms //
current, when the fuse blows in a circuit with open circuit voltage >1000 V //
servicing CRT equipment.
• Always measure current in series with the load – NEVER ACROSS a voltage
source. Check fuse first. Never replace a fuse with one of a different rating.
• Remove test leads before opening the case.
