A bypass pipe should be used for downpipe offsets
< 2 m.
The bypass pipe should be connected at least 2 m
above the inlet bend and 1 m below it. The bypass
pipe should measure no more than DN 100 (prefe-
rably less), in accordance with the dimensions of
the downpipe.
The 250 mm coupler can be omitted if a bypass
pipe is installed.

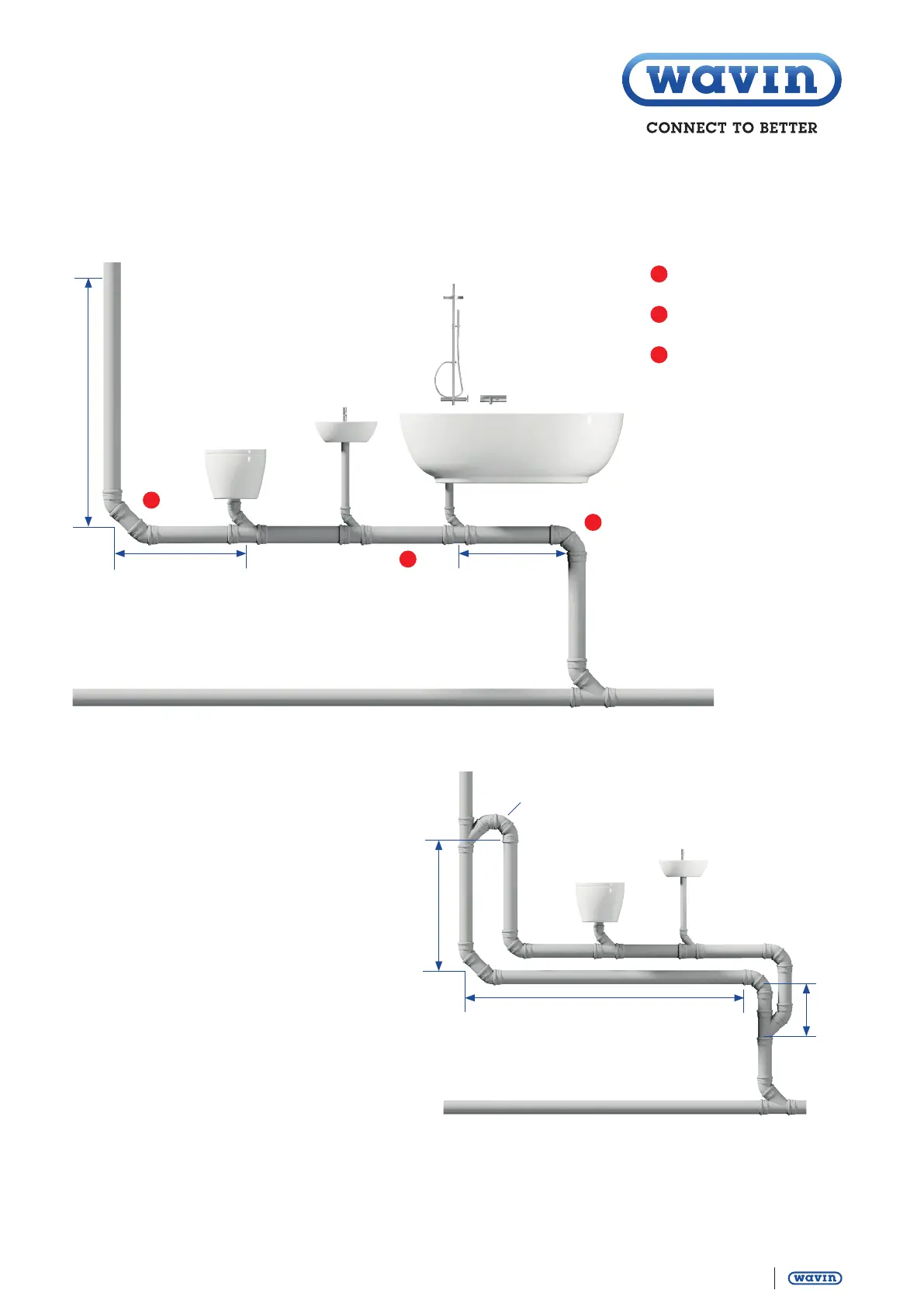

Fig. 14: Downpipe offset < 2 m, with bypass pipe and piping
areas without connection points.
Fig. 13: Downpipe offset > 2 m with pipe sections free of connection points.
Min. 2 m free
Min. 1 m free Min. 1 m free
1
inflow side bend
2
discharge bend
3
case partitioning
1
3
2
Min. 2 m free
Shorter than 2 m
Airbends 45º
Min. 1 m free
