Wavin AS+ Technical Manual
Table 21: Pipe bracket spacing.
horizontal vertical
15*D 25*D (with exceptions)
DN diameter all situations between fixed Brackets between fixed and sliding brackets
[mm] [mm] [mm] [mm]
DN 50 50 750 1250 1250
DN 70 75 1125 1875 1875
DN 90 90 1350 2250 2000*
DN 100 110 1500* 2750 2000*
DN 125 125 1625* 3125 2000*
Dn 150 160 2000* 3500* 2000*
DN 200 200 2150* 3500* 2000*
* exeption to rule

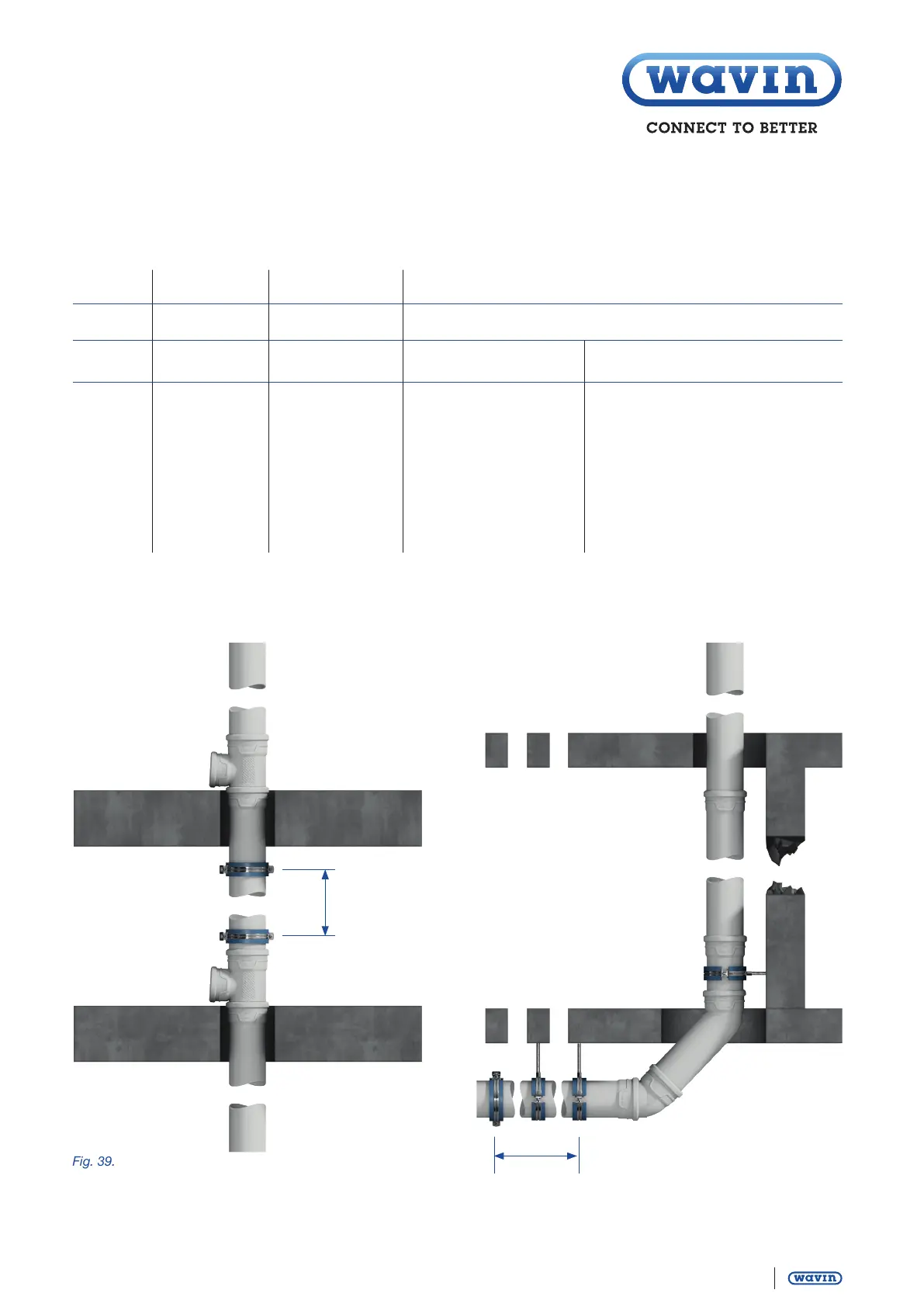

Fig. 39.
Distance according to table
Distance according to table
