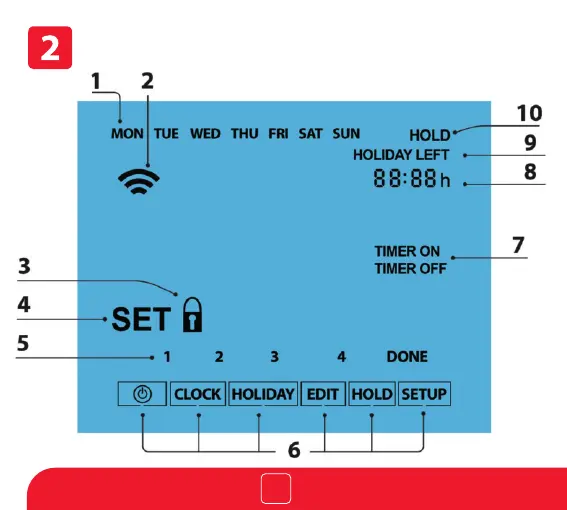

Day Indicator - Displays the day of the week.1.
Mesh Symbol – Displayed when connected to the neoHub.2.
Key Lock Indicator – Displayed when the KeyLock is Locked.3.
Set – Displayed when changes are being made to the program schedule 4.
or current set point.
Program Indicator – Displayed during programming to show which 5.
period is being altered.
Main Menu – Displays which option is currently selected.6.
Timer Status – Displays the current state of the timed output.7.
Clock - Time displayed in 24 hour format.8.
Holiday Left – Displayed when the thermostat is in holiday mode.9.
Hold Left – Displayed when a temperature hold is active, the remaining 10.
time will be shown.
LCD Display
Mode 2 - Time Clock
