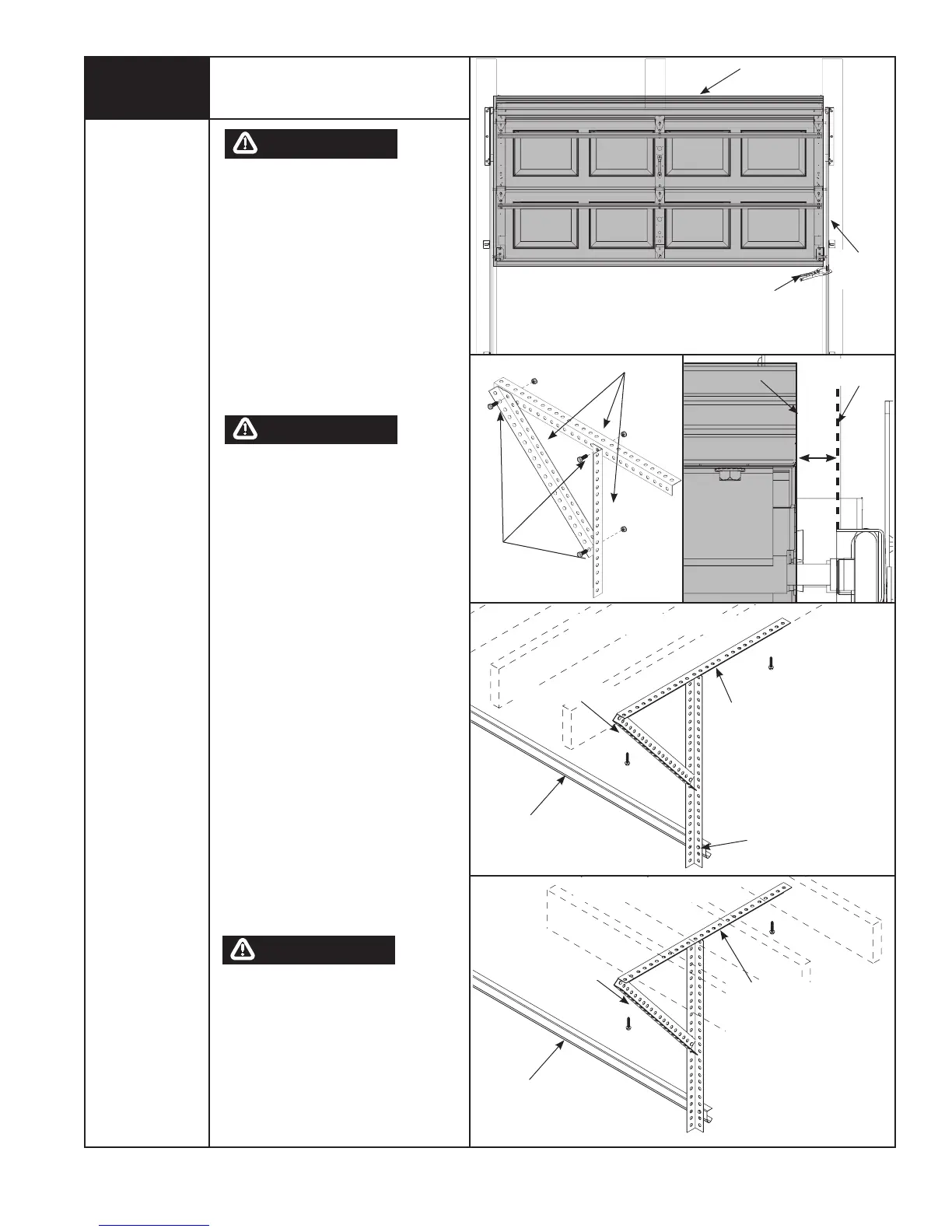

Wayne-Dalton 8100 - Installation: Rear Support System

22
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
HORIZONTAL TRACK
ANGLE BRACE
PERFORATED ANGLE -BOLTED
USING (2) 5/16” X 1-5/8”
HEX HEAD LAG SCREWS TO
CEILING MEMBER
SOUND FRAMING MEMBERS
SOUND FRAMING MEMBERS
BOLT MUST EXTEND INTO
THE TRACK TO SERVE AS
A ROLLER STOP
ANGLE BRACE
PERFORATED ANGLE -BOLTED
USING (2) 5/16” X 1-5/8”
HEX HEAD LAG SCREWS TO
CEILING MEMBER
15
KEEP HORIZONTAL TRACK
PARALLEL AND WITHIN 3/4”
MAXIMUM OF DOOR EDGE,
OTHERWISE DOOR COULD
FALL FROM THE HORIZONTAL
POSITION, RESULTING IN SEVERE
INJURY OR DEATH.
With assistance, raise the door until the
top section and half of the next section
are in a horizontal position. Do not raise
door any further since the horizontal
tracks are not yet supported at the rear.
RAISING DOOR FURTHER CAN
RESULT IN DOOR FALLING AND
CAUSE SEVERE OR FATAL INJURY.
Clamp a pair of vice clamps on each of
the vertical tracks just below the bottom
roller on both sides of the door. This will
prevent the door from lowering while
installing the rear support.
Using perforated angle,
5/16” x 1-5/8” hex head lag screws
and 5/16” bolts with nuts (may not be
supplied), fabricate rear supports for
horizontal tracks.
Attach horizontal tracks to the rear
supports with 5/16”-18 x 1-1/4” hex
bolts and nuts (may not be supplied).
The bolt should extend into the track
to act as a roller stop. Horizontal tracks
must be level and parallel with door.
NOTE: If rear supports are to be installed
over drywall, use 5/16” x 2” hex head
lag screws.
REAR SUPPORTS MUST BE
SECURELY ATTACHED TO SOUND
FRAMING MEMBERS, OR DOOR
COULD FALL FROM HORIZONTAL
POSITION, RESULTING IN SEVERE
OR FATAL INJURY.
WARNING
WARNING
Rear Supports
PERFORATED ANGLE
(3) 5/16”
BOLTS & NUTS
DOOR IN THE
UP POSITION
VERTICAL
TRACK
VICE
CLAMPS
3/4”
MAX
DOOR EDGE
HORIZONTAL
TRACK
WARNING
HORIZONTAL TRACK
Vice Clamps
