Tools Needed:
INSTALLATION
16
Lift Handle
NOTE: Doors with Keyed lock do not
require this lift handle.
Adjust the door to a comfortable
working height and secure with vice
clamp to the track.
Locate the inside center stile or the
desired lift handle location on the lock
(2nd) section of the door. Measure up 4
inches from the bottom of the second
section.
Using this measurement as a guide,
position lift handle bottom hole and
make a mark at the top hole in lift
handle. This should give you a Min. of
20 in. and a Max. of 30 in. between the
lower lift handle/gripping point and the
middle of the upper lift handle/gripping
point. If needed reposition upper lift
handle to stay within Min. and Max.
dimension.
Drill two 9/32 in. (8mm) dia. holes
through section. Enlarge the holes from
outside the door to 1/2” (13mm) dia.
NOTE: Do not drill through or enlarge
holes on the inside of the door.

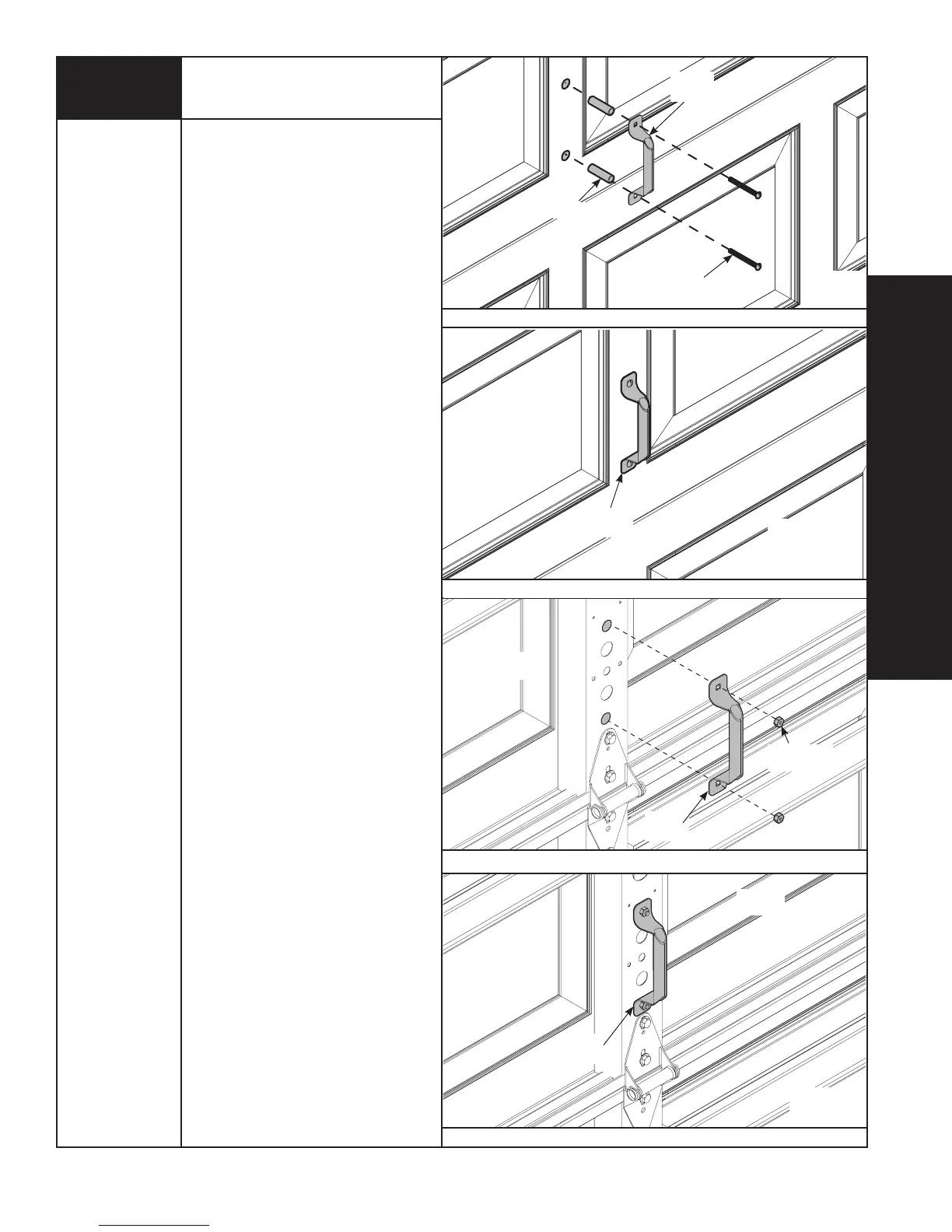

Assemble the outside and inside lift
handle/gripping points to the section
using (2) 1/4 x 2 1/2” carriage bolts and
(2) 1/4”- 20 hex nuts and (2) spacers.
LIFT HANDLE INSIDE
LIFT HANDLE OUTSIDE
Tape Measure
Pencil
Power Drill
9/32” Drill Bit
1/2” Drill Bit
1/4” Wrench
Vice Clamps
LOCK
SECTION
LOCK
SECTION
LOCK
SECTION
LOCK
SECTION
BOTTOM
SECTION
BOTTOM
SECTION
BOTTOM
SECTION
BOTTOM SECTION
LIFT
HANDLE
LIFT
HANDLE
LIFT
HANDLE
LIFT
HANDLE
(2) SPACERS
(2) 1/4”- 20
HEX NUTS
(2) 1/4 X 2-1/2”
CARRIAGE BOLTS
LIFT HANDLE OUTSIDE
LIFT HANDLE INSIDE
