Tools Needed:

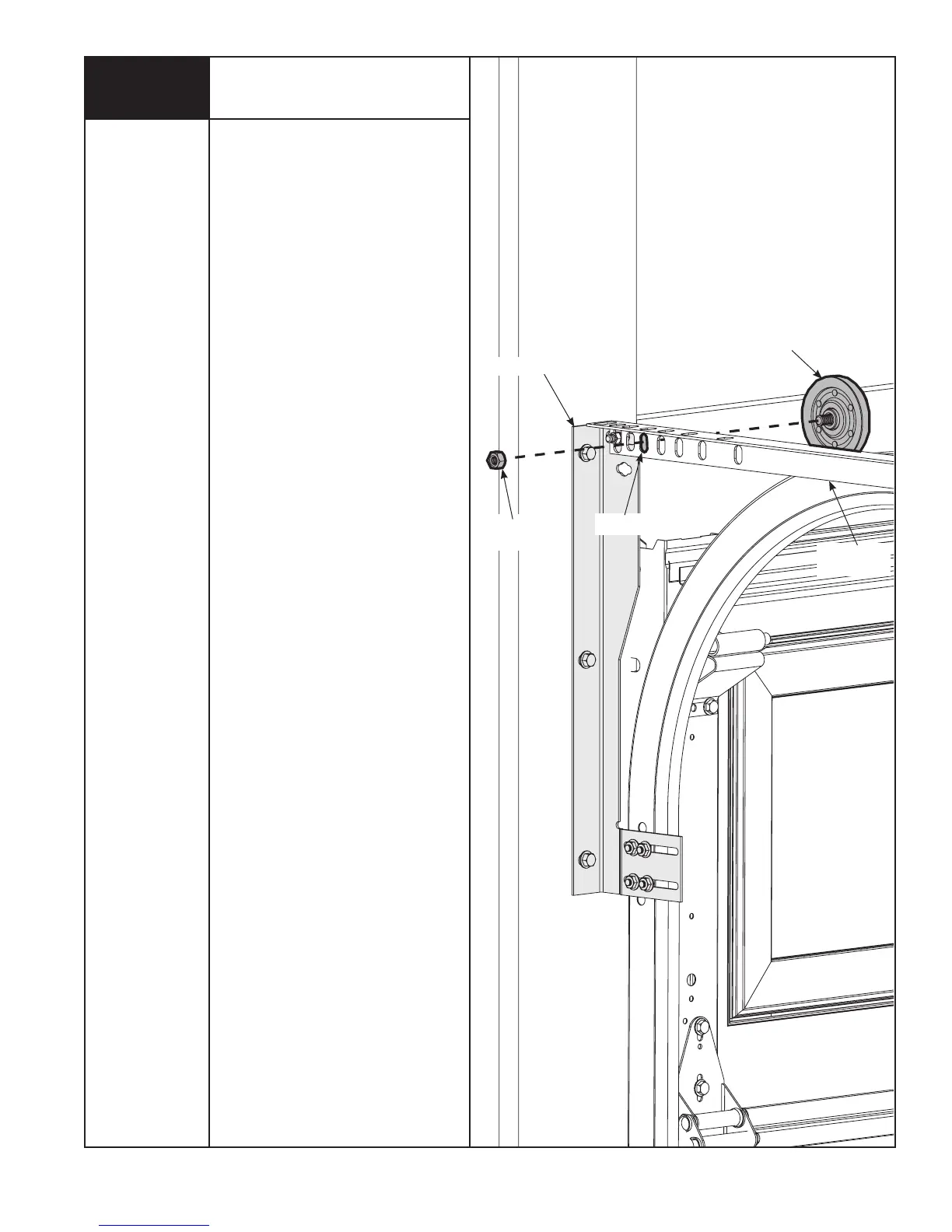

Using (1) 3/8” - 16 hex nut, attach the
front steel sheave to the first 3/8” hole
in the horizontal angle.
Repeat for other side.
Remove the locking pliers from the
vertical tracks. With assistance, raise
the door slowly to the fully open position
making sure the door travels smoothly
through the track.
Clamp locking pliers to the back leg of
both horizontal tracks, below the bottom
rollers to keep the door from lowering.
17
3/8- 16”
HEX NUT
STEEL
SHEAVE
3/8” HOLE
FLAGANGLE
HORIZONTAL
ANGLE
Attaching Front Sheaves
9/16” Wrench
Locking Pliers
To Next Page
