High-Resolution IR Camera

User Manual

Eyeball Camera

Issue V1.0 (2018-05-11)

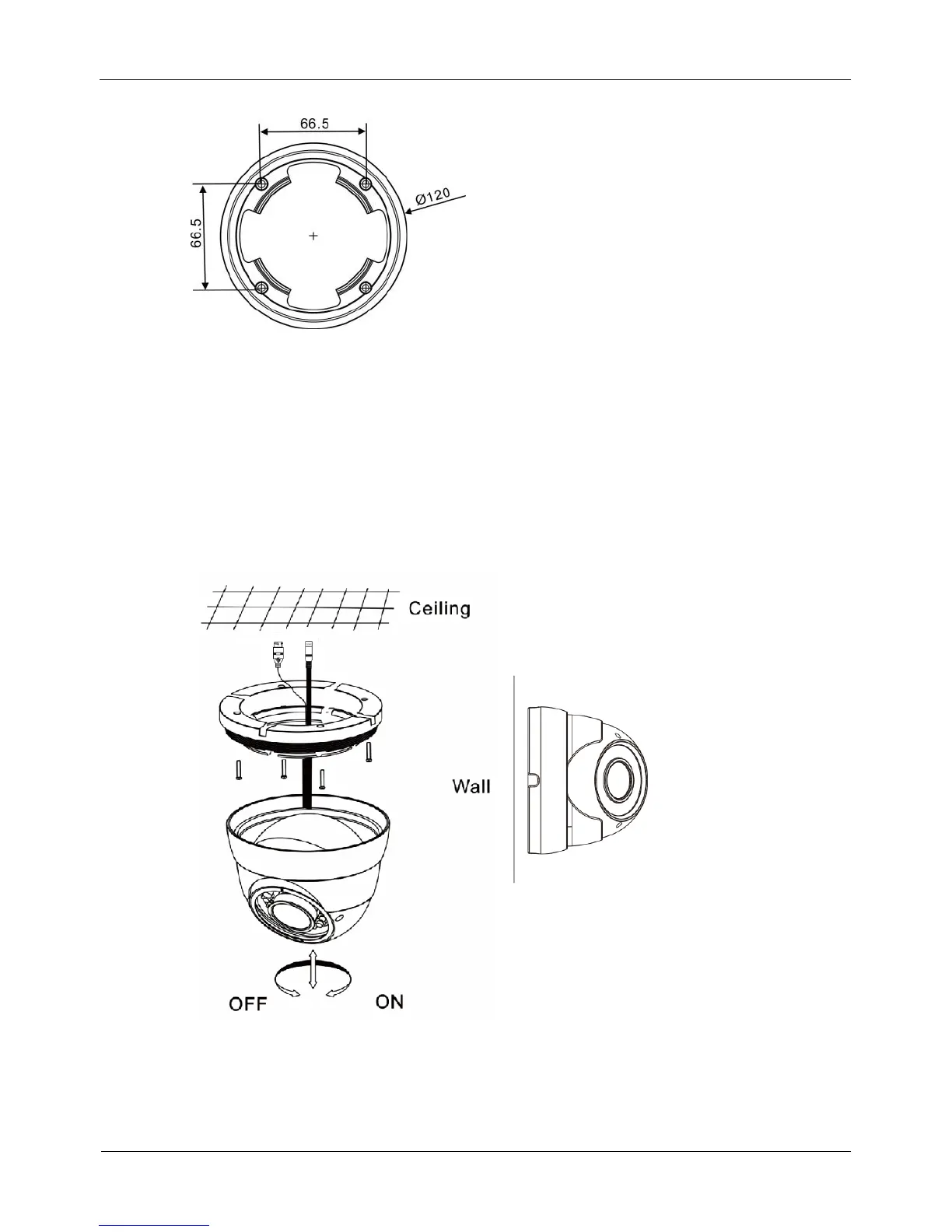

Figure 2-5 Dimensions of the 0E-HDDMO2812 mounting base

Step 3 Nail swell plastic buttons in to drilled holes, and fix the camera mounting base to the

ceiling (or wall) by use of self-tapping screws.

Step 4 Install the compression ring, the dome shell, and the dome shell fixed base on the

camera mounting base.

Figure 2-6 shows camera installation.

Figure 2-6 Camera installation

Step 5 Turn the main body, adjust the lens direction, and note the position of the dome cover

window.
