WBOX Technologies 0E-21BF36WDR User Manual

High-Resolution IR Camera
User Manual
Eyeball Camera
Issue V1.0 (2018-05-11)
7
2 Eyeball Camera
2.1 Dimensions

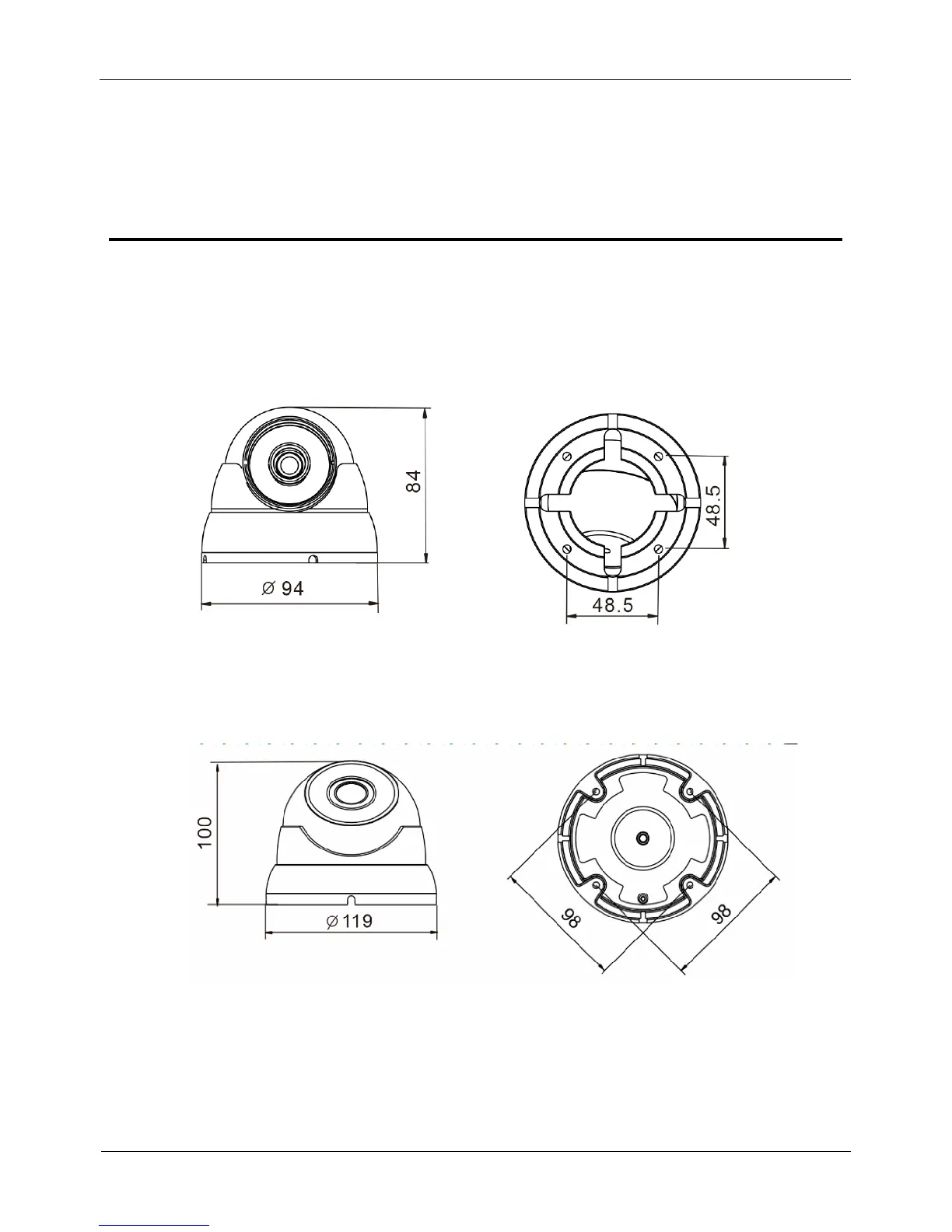

Figure 2-1 shows the camera dimensions of 0E-13D28 and 0E-21D28WDR.
Figure 2-1 Dimensions of 0E-13D28 and 0E-21D28WDR (unit: mm)
Figure 2-2 shows the camera dimensions of 0E-40D28WDR.
Figure 2-2 Dimensions of 0E-40D28WDR (unit: mm)
2.2 Device Installation
Step 1 Open a package, take out the camera, unscrew the camera compression ring, and
disassemble the camera, the camera components is shown in Figure 2-3.
