3. DESCRIPTION OF THE WEBASTO 40 SERIES
The Webasto 40 Series scope of delivery contains all the documents required for installation and operation.

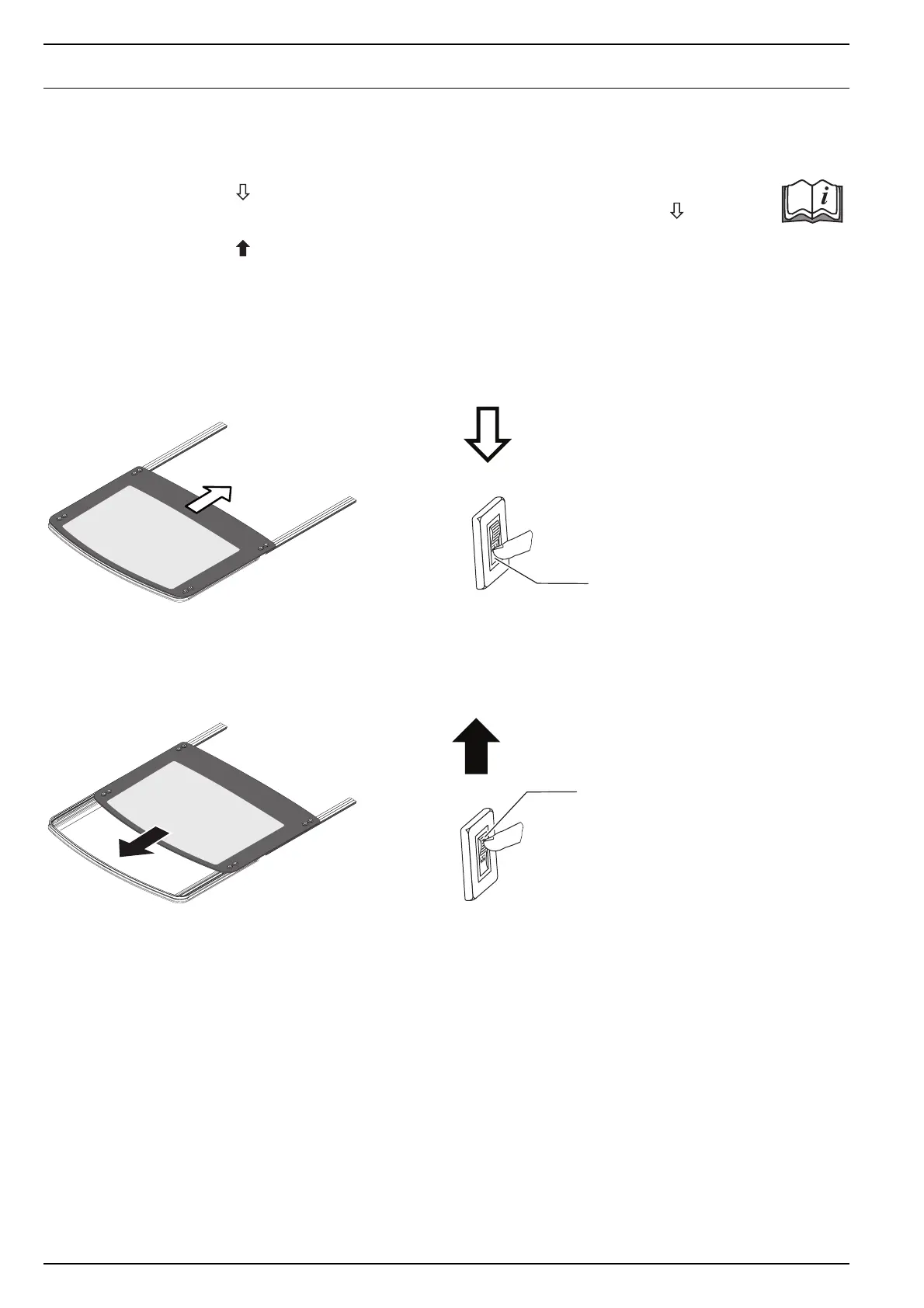

Pushing the open/close switch electrically operates the roof (see operating instructions).
Continuously pushing button opens the roof to the desired position: first tilt, then slide.
The roof stops moving during opening when it has reached the max. tilt position. Release button and press it
again to open the roof to the max. slide open position.
Continuously pushing button closes the roof to the desired position.
The motor attached to the roof's frame opens and closes the roof via cables. The glass panel slides inside the
frame and the rails.
The electrical supply is via the wiring from the vessels power supply.
The system is designed to operate with 12 V DC.
