Webasto BlueCool C-Series - Digital Chiller Control Panel

2
Digital cabin control panel:
• Start and stop of indirectly connected air handlers
• Temperature and blower setting for indirectly connected air handlers
The operation mode can not be selected with the cabin control panel!
The digital Chiller control panel ist factory pre-programmed. The secondary commands are
code-protected.
• If your Chiller unit has a heating option, the cabins can be heated until the sea water
temperature drops below 6 °C.
The function „Automatic with reverse heating operation” (F3) is pre-set.
• If an external water heater is integrated in your chilled water air-conditioning system, you
can heat independently from the sea water temperature (See installation instructions for
external heater).
The function „Automatic with external heater” (F4) is pre-set.

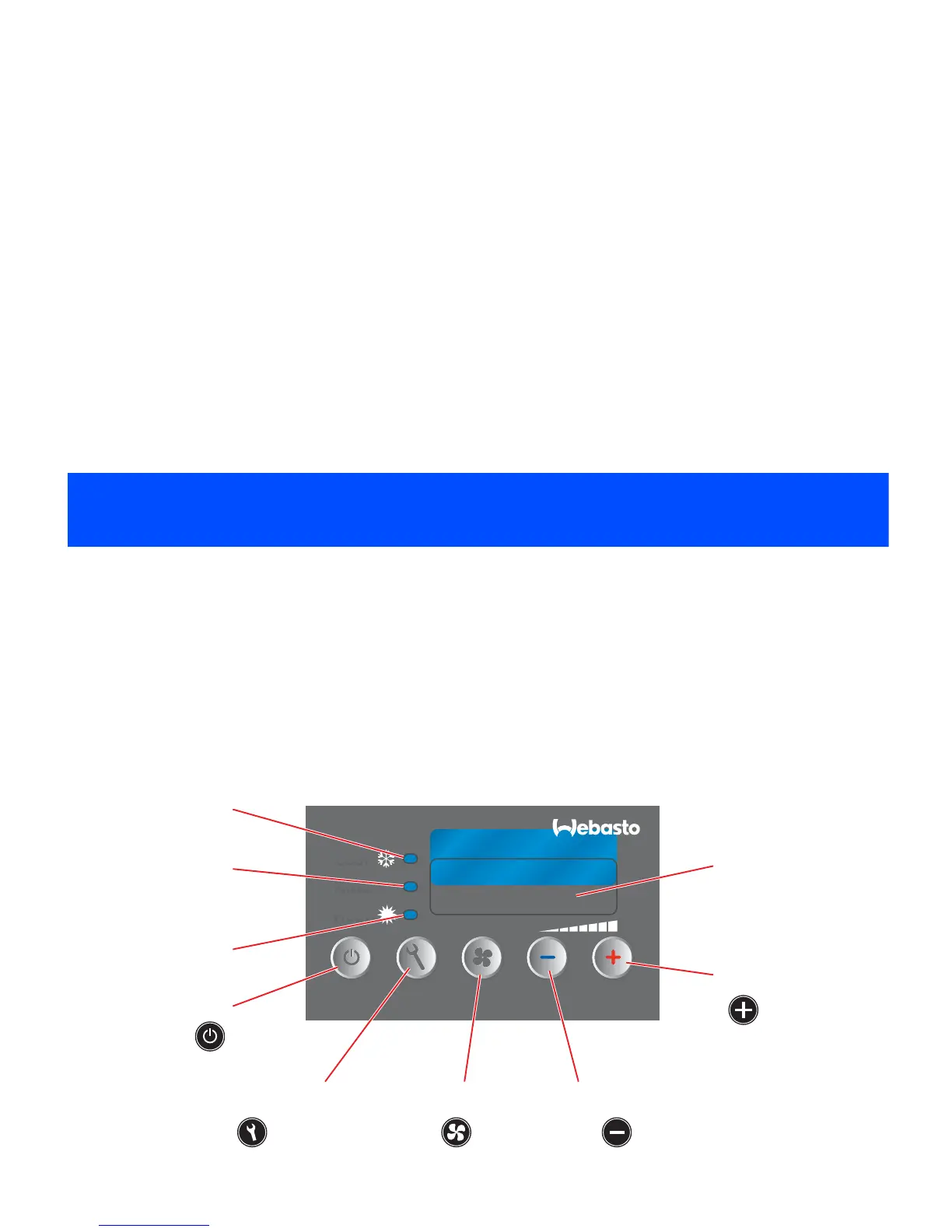

Digital Chiller control panel for Chiller units and
directly connected air handlers
Higher
values
Cool
Auto
Heat
Read-out
Blower speed
Lower values Set-up / programming
Cooling mode
Automatic mode
Heating mode
On / Off
• Switching the Chiller unit on and off
• Programming and setup of the Chiller unit
• Setup of directly connected air handlers
• Selection of operation mode (Automatic, Cooling, Heating)
• Switching the Chiller unit on and off
• Programming and setup of the Chiller unit
• Setup of directly connected air handlers
• Selection of operation mode (Automatic, Cooling, Heating)
