REPAIR DBW 2010/2020/300 COOLANT HEATERS

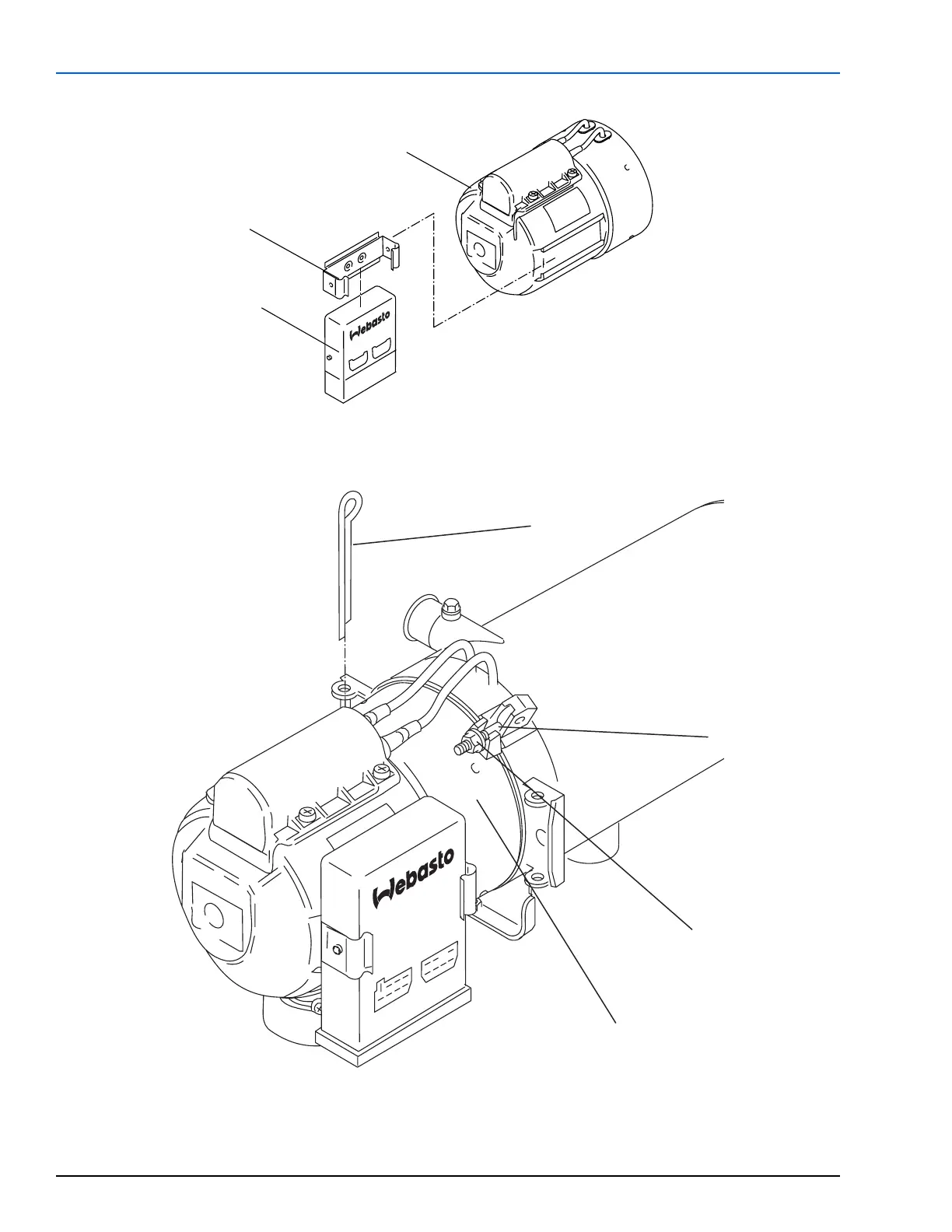

Figure 37: Control Unit Removal / Installation
Figure 38: Burner Head Removal / Installation
1
2
3
1 Control Unit 1553
2 Holding Clip
3 Burner head
1
2
3
4
NOTE: Depending on the burner head direction of swing,
the cotter pin may be located to the opposite side.
1 Cotter pin
2 Hinge Bolts (2)
3 Nut (2)
4 Burner head
CAUTION: Always use hinge bolts to lock burner head in place.
