DBW 2010/2020/300 COOLANT HEATERS REPAIR
9.2.15 FAN SHAFT, BEARINGS AND GEARING, EXPLODED VIEW (DBW 2010)

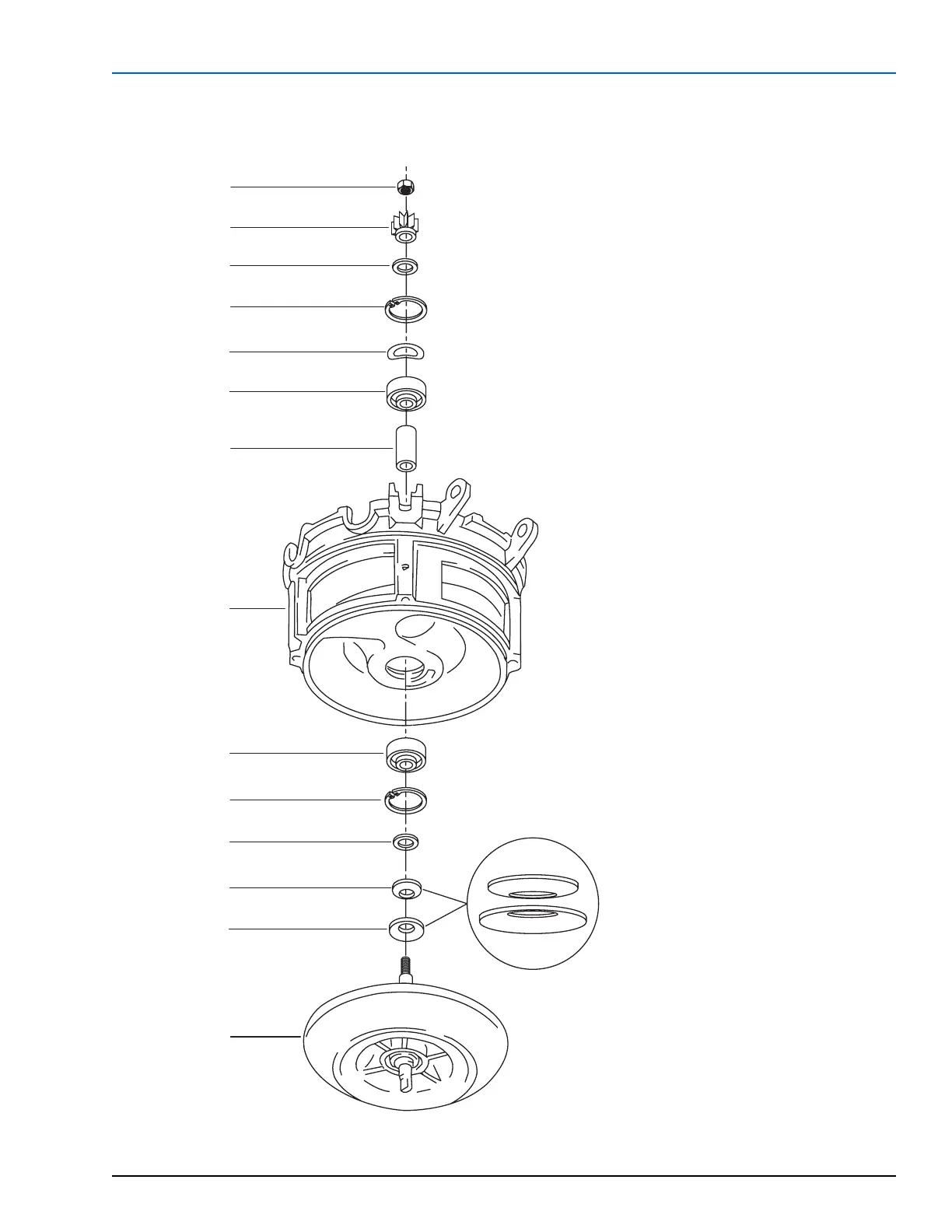

Figure 47: Exploded view - fan support assembly - DBW 2010
1 23456 7 8 91011121314
1 Fan 2 Large spring washer 3 Small spring washer 4 Washer (black) 5 Retaining ring
6 Bearing 7 Carrier housing 8 Spacer 9 Bearing 10 Wave-spring washer
11 Retaining ring 12 Washer (Brass color) 13 Drive gear 14 Lock-nut
DBW 2010
