Webasto DBW 2020 User Manual

20
OPERATING INSTRUCTIONSWEBASTO DBW SERIES HEATERS
Set Clock
Set Timer
Set
Heater
on/off
manual
Timer
on/off
Display
Hour
Day
Minute
SM
TWT F
S
P
T
H
12:00
1
2
3
4
5
6
Setting the Electronic Timer
(Model CDN-1224)
1 Time Display
2 Heater on/off indicator LED (green)
3 Timer active status LED (yellow)
4 Clock time status LED (red)
This LED will be on during PM time when AM/PM
dip switch setting is selected
5 Days of the week LED’s (red)
6 Function buttons

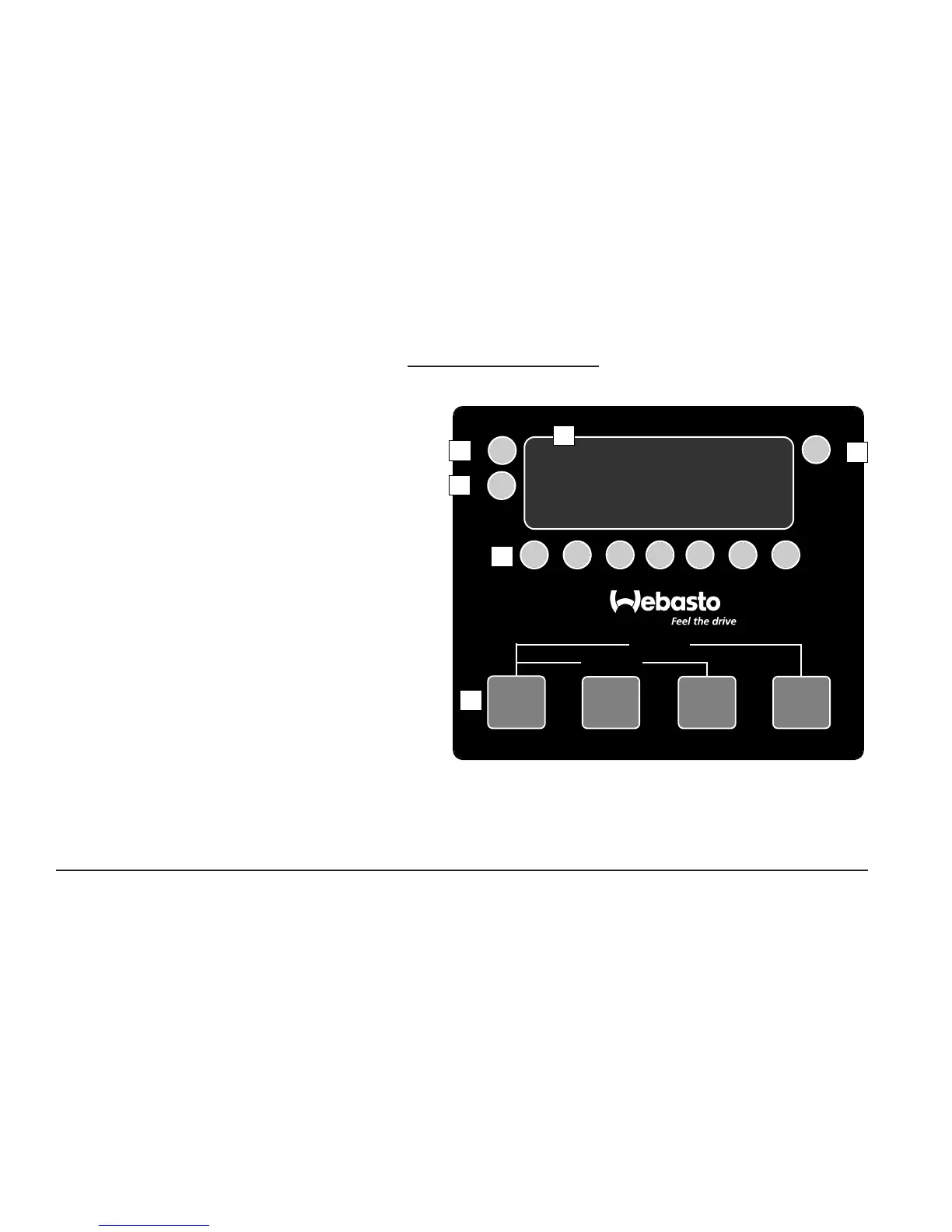

Fig. 5: 7-Day Electronic Timer Model CDN-1224

Webasto DBW 2020 Specifications

General

Brand	Webasto
Model	DBW 2020
Category	Water Heater
Language	English
