Intelligent Fast-Charging System
GSE O&M for DVS300 / 330 / 330 IP55 / 400 and MVS330/400
31504-03-0101 Webasto Charging Systems, Inc.17
4. Set the control board SW1-4 DIP switch in the DIP switch bank (Figures 4 and 5) to the ON position to
enable the parallel-mode operation.
• Figure 5 shows a detailed view of the [SW1-4] DIP switch in the parallel conguration. When parallel
operation is enabled and only one vehicle is connected to the power station then both power sections
in the charger are combined to deliver maximum power.
• The installation software utility program then sets the maximum port current conguration. If the
SW1-4 switch is set to the OFF position, then this conguration is limited based on the model design.
5. Apply the power.
• The power station installed and wired nearest to the power server must be congured as the main station
of the system and all other power stations as support stations. This conguration is accomplished through
the use of the front-panel conguration menus (Figure 3).
• The factory default setting for all power stations is the support setting.

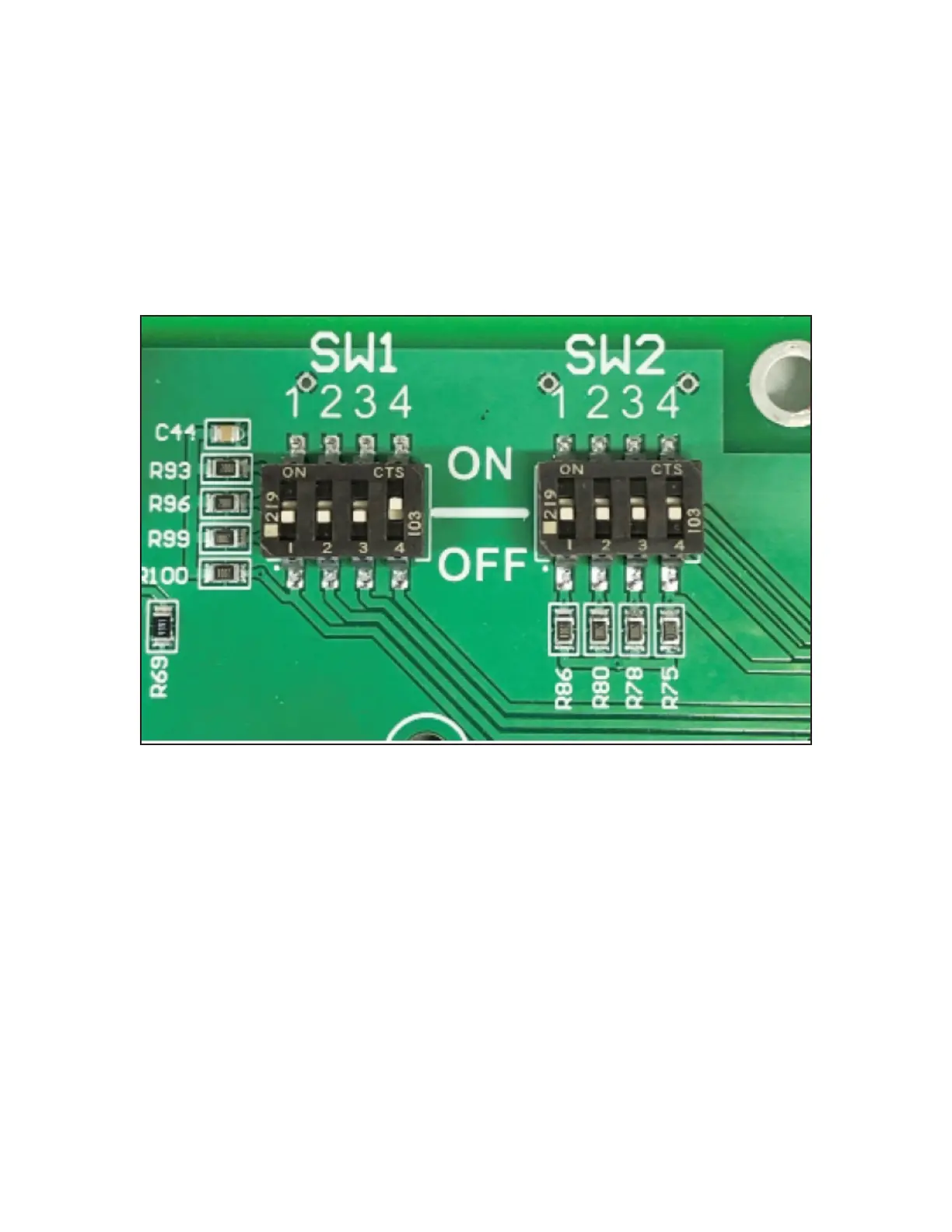

Figure 5 – Detailed View of the DIP Switch in Parallel Conguration
