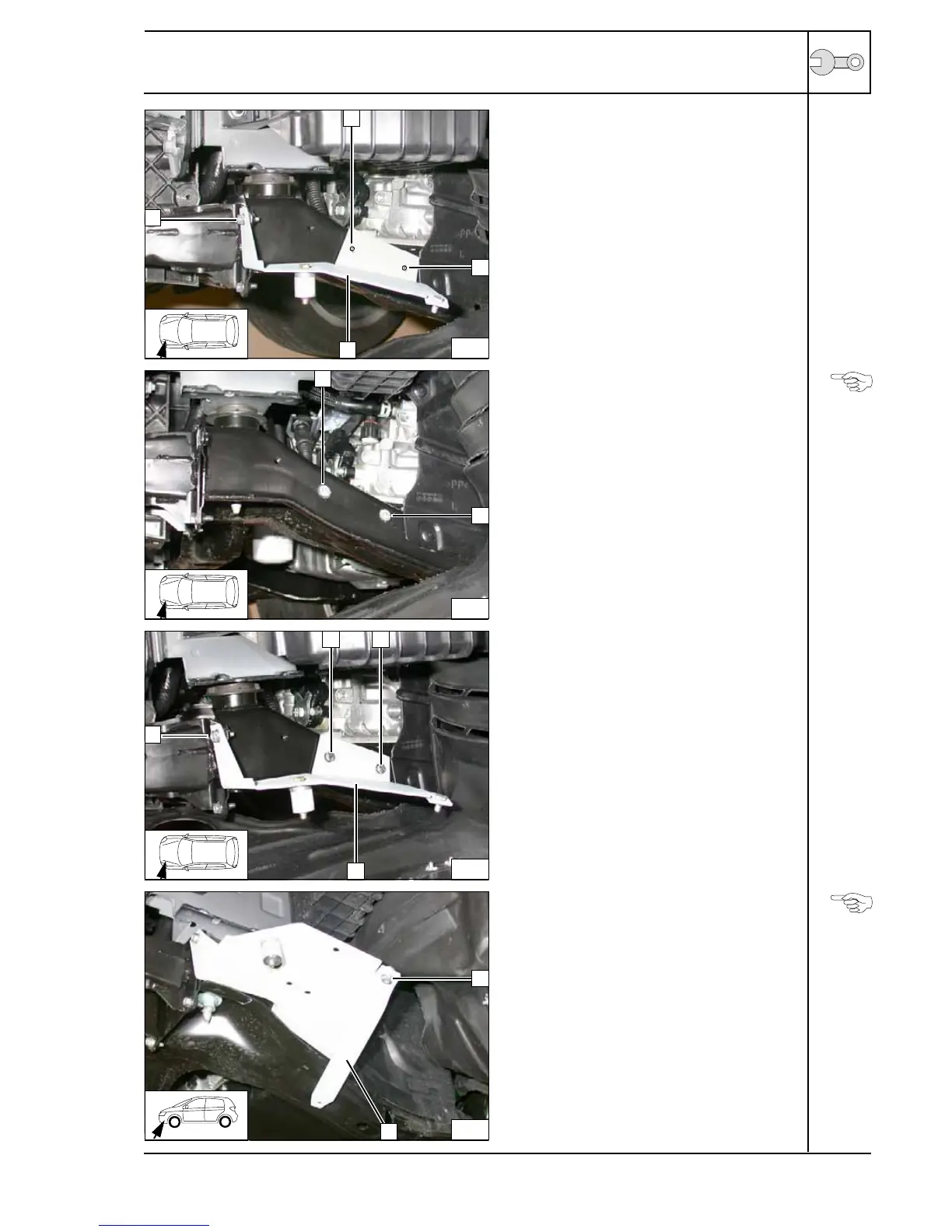

Webasto Mazda 6 - Bracket Installation

1313440A_EN
12
Mazda 6
1 Copy hole pattern [2x]
2 Bracket
3 Original vehicle bolt
Copying
hole
pattern
Remove bracket
1 9.1 mm dia. hole; M6 rivet nut [2x each]
Installing
rivet nut
1
M6x20 bolt, spring lockwasher [2x each]
on rivet nut
2 Bracket
3 Original vehicle bolt
Installing
bracket
Strut 2 will be mounted on engine support
later
1 Flanged nut
Loosely
mounting
strut
17
2
3
1
1
18
1
1
19
2
3
1 1
20
2
1
