Webasto Mazda 6 - Fuel Standpipe Fitting

Mazda 6
1313440A_EN
15

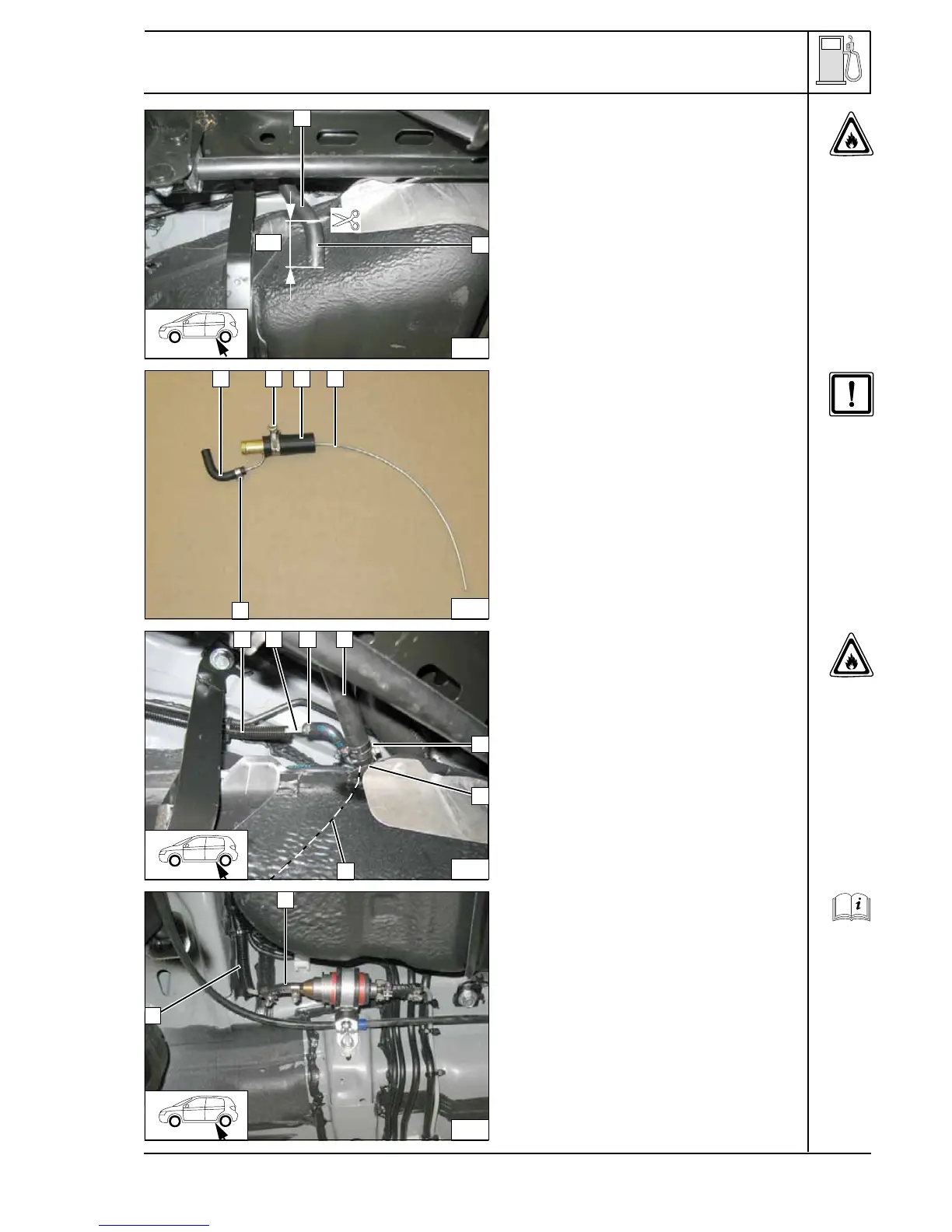

Pull fuel-tank vent line 1 off fuel tank and cut
to length; hose section
1 and 2 will be reused.
Removing
fuel
Shape fuel standpipe 4 according to template
and cut to length.
Mount 3.5 mm dia., 90° molded hose
1 on
connection piece of fuel standpipe
4.
2 16-24 mm dia. clamp
3 Hose section of 55 mm ventilation line
5 8 mm dia. clamp
Premount-
ing fuel
standpipe
Insert fuel standpipe while aligning
standpipe
7 relative to bottom of fuel tank.
Secure hose section
6 of ventilation line on
fuel tank again with original vehicle clamp.
1 10 mm dia. corrugated tube
2 Fuel line
3 10 mm dia. clamp
4 Fuel-tank vent line
5 16-24 mm dia. clamp
Installing
fuel
standpipe
Check the position of the components; adjust
if necessary. Check that they have free
clearance.
1 Hose section, 10 mm dia. clamp [2x]
2 Fuel line in 10 mm dia. corrugated tube
Connect-
ing meter-
ing pump
28
2
1
55
29
1 2 3 4
5
30
5
2 3 4
6
1
7
31
1
2
