Mazda 6
1313440A_EN
17

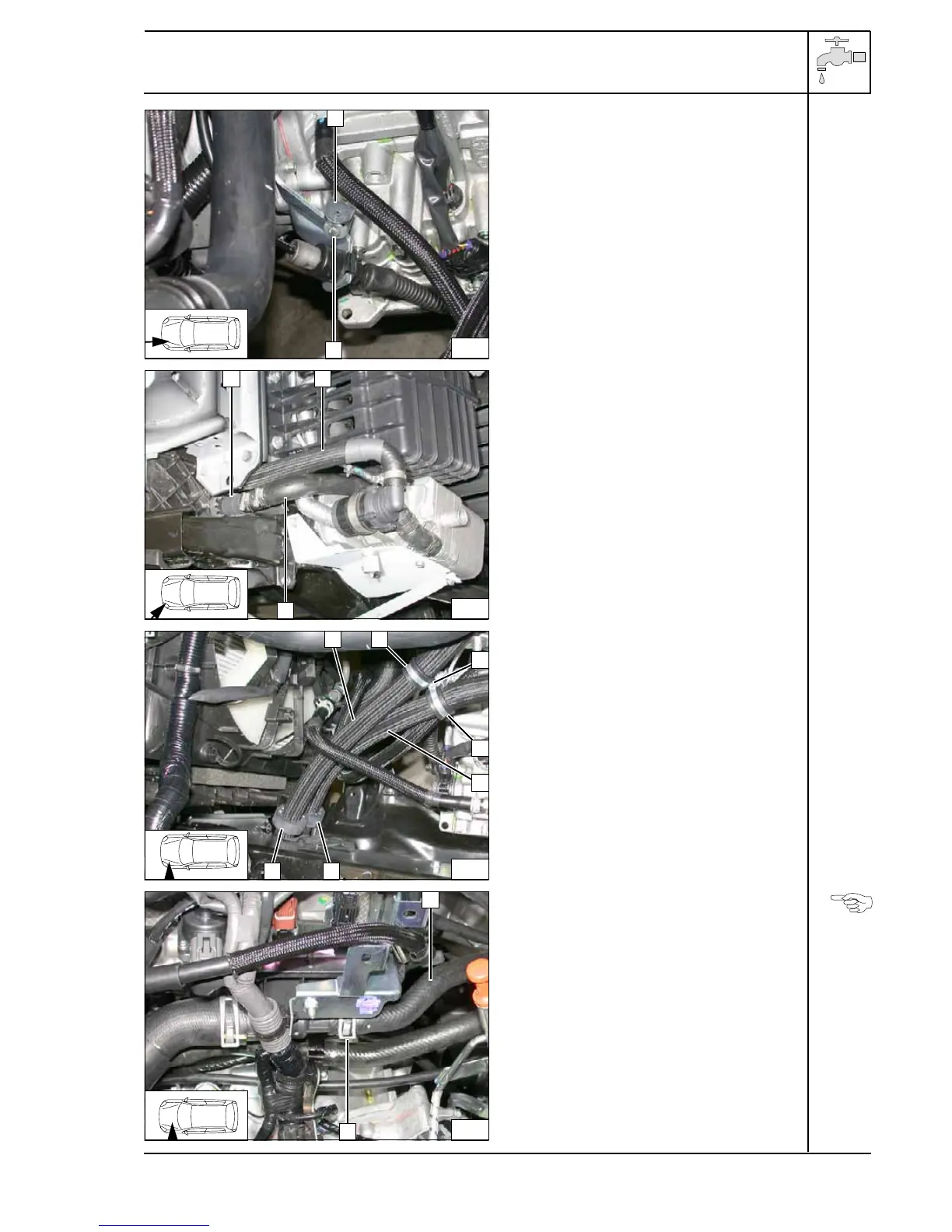

1 Angle bracket
2 Mount M6x20 bolt, large diameter washer,
flanged nut in existing hole
Installing
angle
bracket
Connect-
ing heater
unit
1
29 mm dia. rubber-coated p-clamp [2x]
2 M6x20 bolt, flanged nut on angle bracket
3 Align black (sw) rubber isolator [2x]
Routing in
engine
compart-
ment
Disconnect hose to engine outlet/heat
exchanger inlet
1 at connection piece of
engine outlet. Discard original vehicle spring
clip
2.
Cutting
point
32
1
2
33
BD
C
34
1
3
1
3
D
B
2
35
2
1
