9
These commodities, technology or software were exported from the United States in accordance
with the Export Administration Regulations. Diversion contrary to US law is prohibited.
CHARGING YOUR VEHICLE
Your charger is designed for easy charging in 240 VAC.
1. Make sure the car is in park and turned OFF.
2. Insert charger into appropriate wall outlet.
3. RED TROUBLE light will flash briefly, then turn off; BLUE STATUS Indicator
light will stay solid indicating that charger is receiving AC power and is ready to
charge.

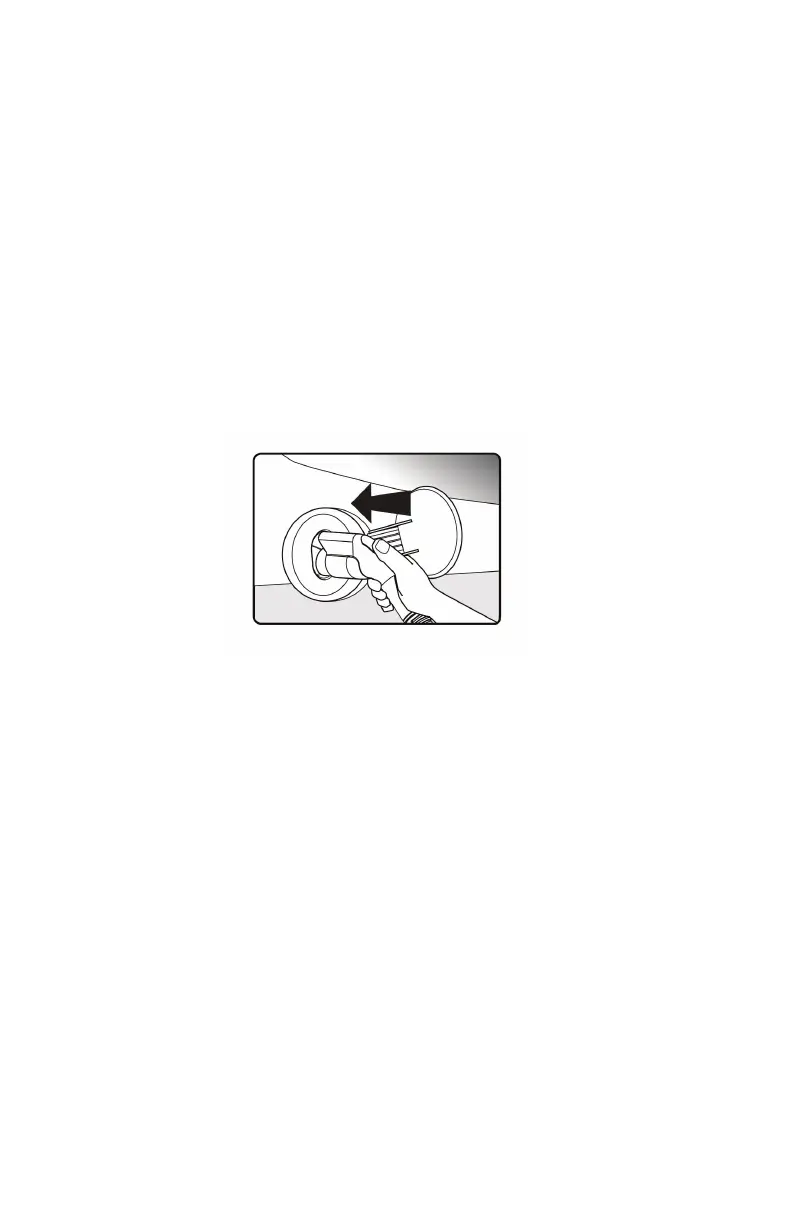

4. Plug the CHARGE COUPLER into your vehicle’s charging outlet until it clicks.
Once latched, the CHARGE COUPLER will not disengage unless the release
button is pressed manually.
5. Automatic charge begins. Power will be delivered in accordance with vehicle
demand. If the vehicle is charging, the BLUE STATUS Indicator will blink on and
off approximately every two seconds. Always verify that the vehicle charging
status indicator agrees.
6. When fully charged, the BLUE STATUS Indicator light illuminates solid blue.
Your vehicle has a “dashboard gauge” that can verify the vehicle is fully
charged. Refer to the vehicle owner’s manual to find the gauge location on
your dashboard.
7. Disconnect when the charge is complete by pressing the release button on the
CHARGE COUPLER and removing it from the vehicle.
