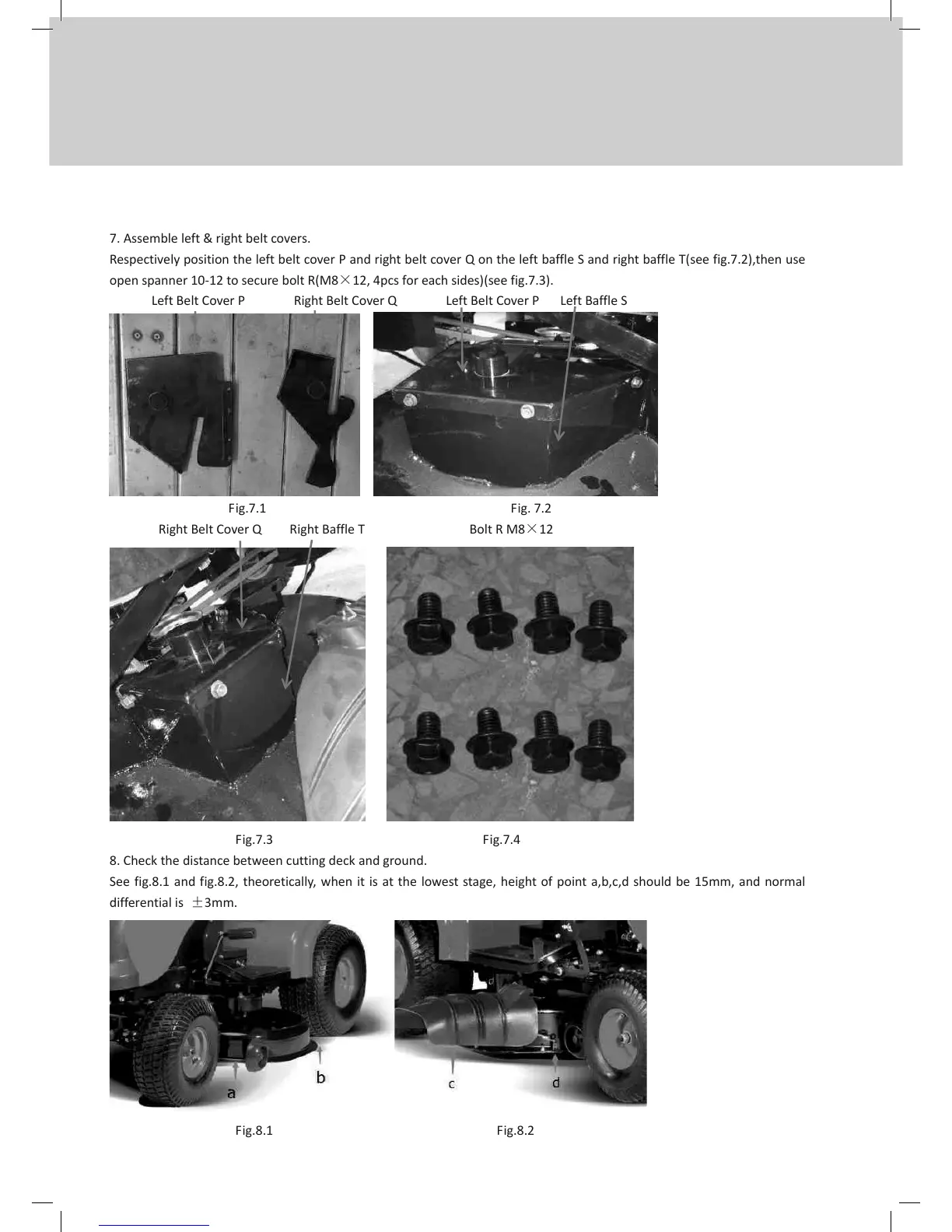

7. Assemble left & right belt covers.
Respectively position the left belt cover P and right belt cover Q on the left baffle S and right baffle T(see fig.7.2),then use
open spanner 10-12 to secure bolt R(M8×12, 4pcs for each sides)(see fig.7.3).
Left Belt Cover P Right Belt Cover Q Left Belt Cover P Left Baffle S
Fig.7.1 Fig. 7.2
Right Belt Cover Q Right Baffle T Bolt R M8×12
Fig.7.3 Fig.7.4
8. Check the distance between cutting deck and ground.
See fig.8.1 and fig.8.2, theoretically, when it is at the lowest stage, height of point a,b,c,d should be 15mm, and normal
differential is ±3mm.
Fig.8.1 Fig.8.2
