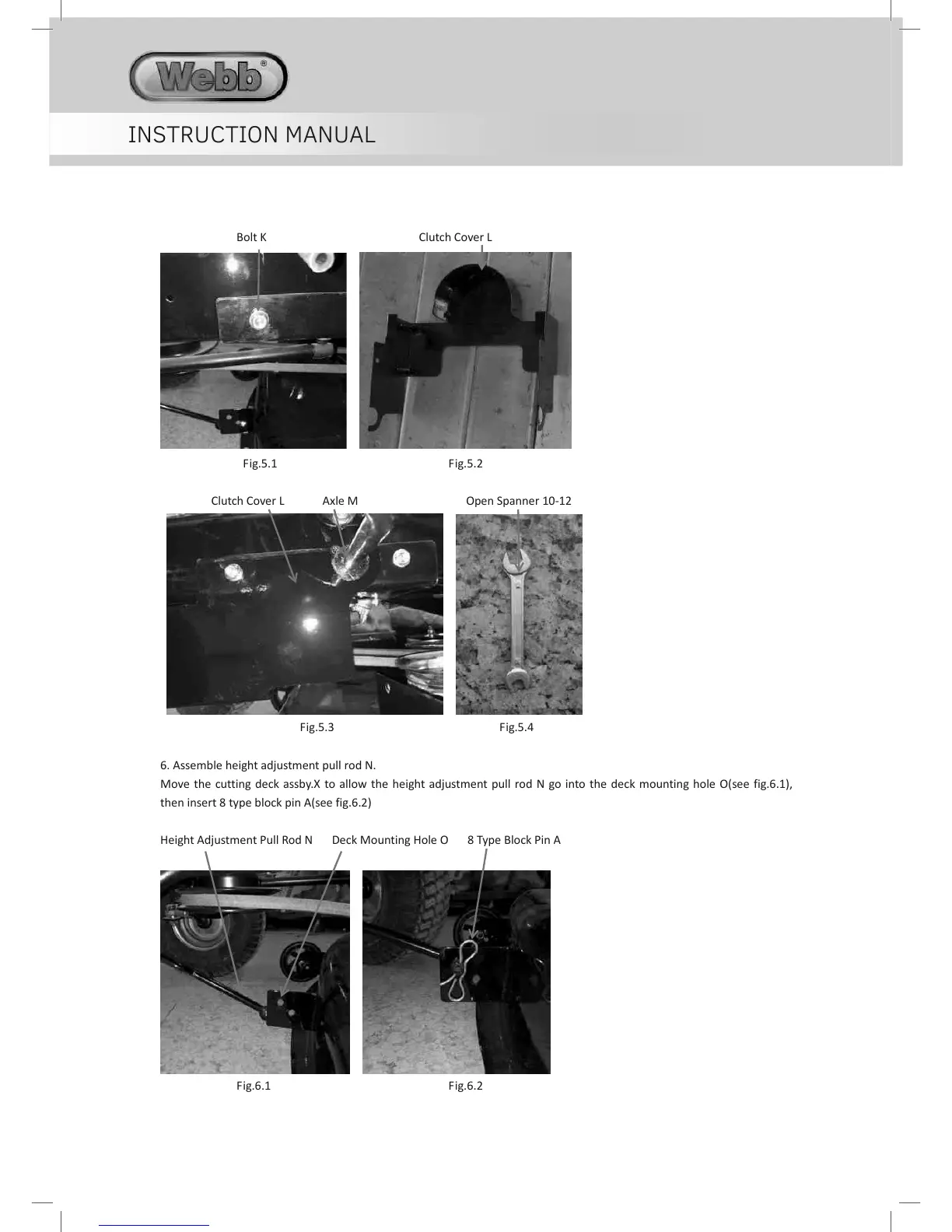

Bolt K Clutch Cover L
Fig.5.1 Fig.5.2
Clutch Cover L Axle M Open Spanner 10-12
Fig.5.3 Fig.5.4
6. Assemble height adjustment pull rod N.
Move the cutting deck assby.X to allow the height adjustment pull rod N go into the deck mounting hole O(see fig.6.1),
then insert 8 type block pin A(see fig.6.2)
Height Adjustment Pull Rod N Deck Mounting Hole O 8 Type Block Pin A
Fig.6.1 Fig.6.2
