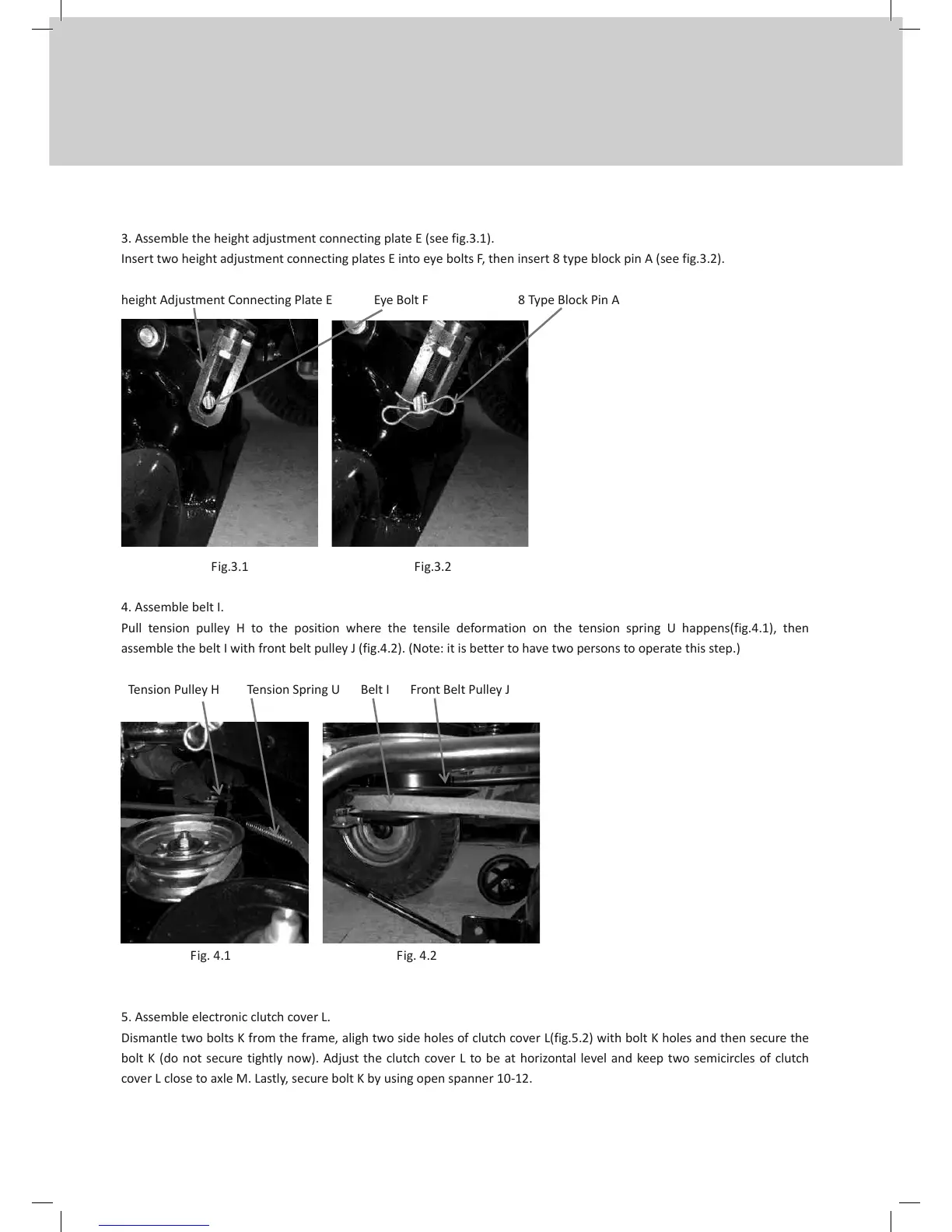

3. Assemble the height adjustment connecting plate E (see fig.3.1).
Insert two height adjustment connecting plates E into eye bolts F, then insert 8 type block pin A (see fig.3.2).
height Adjustment Connecting Plate E Eye Bolt F 8 Type Block Pin A
Fig.3.1 Fig.3.2
4. Assemble belt I.
Pull tension pulley H to the position where the tensile deformation on the tension spring U happens(fig.4.1), then
assemble the belt I with front belt pulley J (fig.4.2). (Note: it is better to have two persons to operate this step.)
Tension Pulley H Tension Spring U Belt I Front Belt Pulley J
Fig. 4.1 Fig. 4.2
5. Assemble electronic clutch cover L.
Dismantle two bolts K from the frame, aligh two side holes of clutch cover L(fig.5.2) with bolt K holes and then secure the
bolt K (do not secure tightly now). Adjust the clutch cover L to be at horizontal level and keep two semicircles of clutch
cover L close to axle M. Lastly, secure bolt K by using open spanner 10-12.
